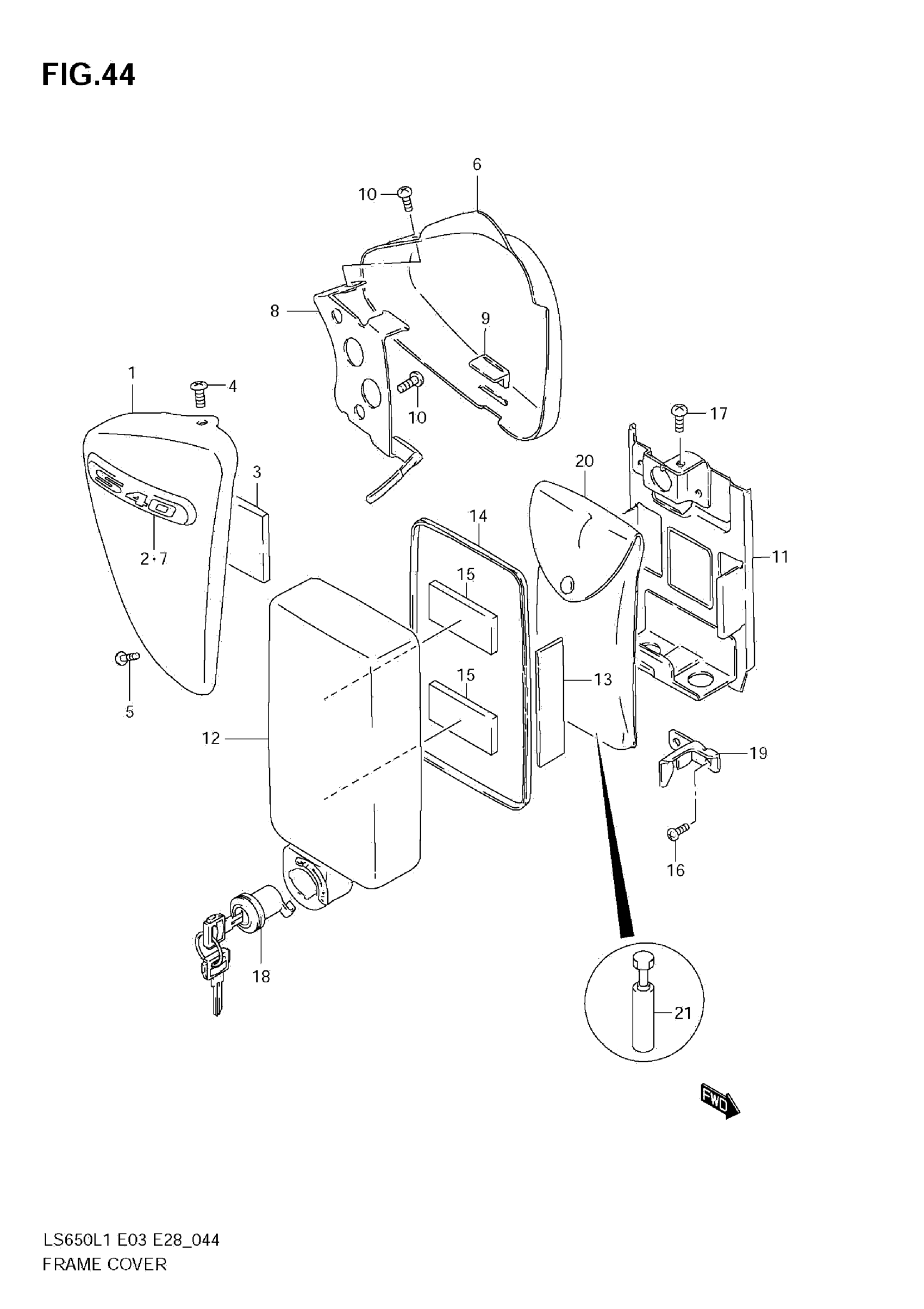

Suzuki LS650L1 (2011) FRAME COVER Diagram

#

Description
Price

1

COVER ASSY,FRAM This part replaces 47100-24CA0-YUE.

47100-24CA1-YUE

$183.52

1

COVER ASSY,FRAM This part replaces 47100-24CA0-YUK.

47100-24CA1-YUK

$197.70

2

EMBLEM, FRAME COVER This part replaces 68131-24CA0.

68131-24CA1

$40.67

3

CUSHION FRAME COVER RH

13719-84150

$3.80

4

SCREW

02142-0510B

$1.82

5

SCREW

02112-7516B

$2.34

6

COVER ASSY,FRAM This part replaces 47200-24CA0-YUE.

47200-24CA1-YUE

$197.70

6

COVER ASSY,FRAM This part replaces 47200-24CA0-YUK.

47200-24CA1-YUK

$324.13

7

EMBLEM, FRAME COVER This part replaces 68131-24CA0.

68131-24CA1

$40.67

8

BRACKET, FRAME COVER LH

47180-24B03

$27.32

9

CUSHION, FRAME COVER LH

47117-45000

$2.14

10

SCREW

02122-0612B

$2.33

11

HOLDER, TOOL

47430-24B01

$20.32

12

COVER, TOOL HOLDER

47440-24B20

$52.33

13

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.41

14

MOLDING, TOOL HOLDER

47445-24B00

$3.53

15

CUSHION, TOOL HOLDER

33652-31F00

$3.37

16

SCREW

02142-0510B

$1.82

17

SCREW

02112-0610B

$1.89

18

LOCK SET, TOOL HOLDER

95700-24871

$49.76

19

PLATE, TOOL HOLDER LOCK

47434-24B00

$4.15

20

TOOL ASSY This part replaces 09800-21055.

09800-21102

$19.15

21

GAUGE ASSY, TENSION

96220-24B00

$29.80
