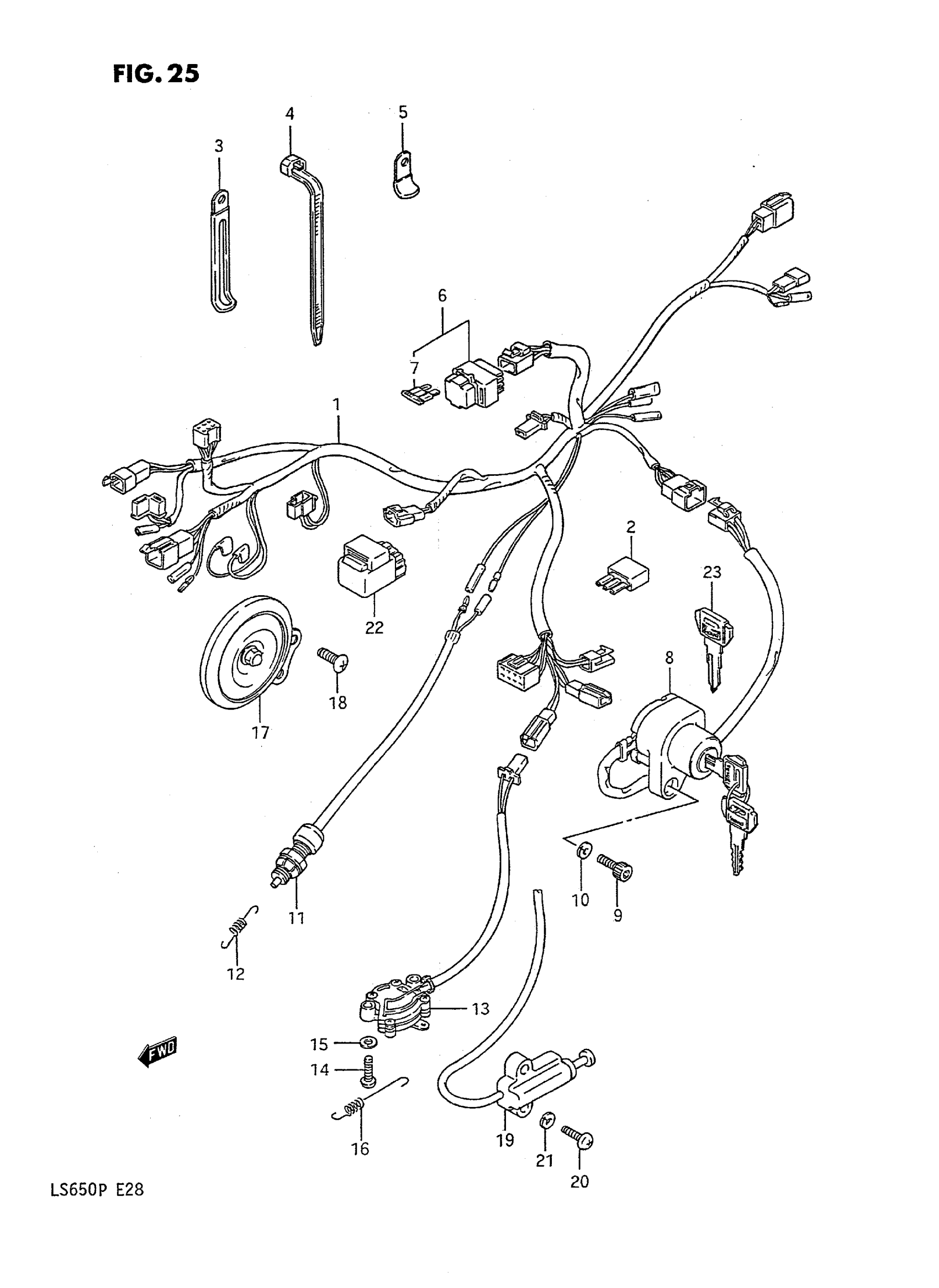

Suzuki LS650F (1995) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL G

36610-24B00

Unavailable

1

HARNESS, WIRING | MODEL J/K/L/M/N/P; Includes Item(s) 2

36610-24B20

Unavailable

2

.DIODE | MODEL J/K/L/M/N/P This part replaces 36611-38A00.

36611-38A10

$12.39

3

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

$1.76

3

CLAMP This part replaces 09404-08404.

09404-08420

$2.90

4

CLAMP (L:125) | MODEL GMODEL J/K/L/M/N/P

09407-14403

$2.24

4

CLAMP (L:165) | MODEL GMODEL J/K/L/M/N/P

09407-18402

$2.21

4

CLAMP (L:235)

09407-25401

$4.21

5

CLAMP, WIRING HARNESS

36651-24B00

Unavailable

6

FUSE ASSY, MAIN | Includes Item(s) 7

36740-24B01

$31.82

7

FUSE (20A)

09481-20101

$2.13

8

SWITCH ASSY, IGNITION | MODEL G/J/K This part replaces 37110-24B00.

37110-24B03

$112.35

8

SWITCH ASSY, IGNITION | MODEL L/M/N/P; Includes Item(s) 9 - 10 This part replaces 37110-24B01.

37110-24B03

$112.35

9

BOLT This part replaces 07110-05167.

07130-05167

$3.42

10

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.83

11

SWITCH ASSY, STOP LAMP

37740-04A10

$26.32

12

SPRING

09443-06077

$6.08

13

SWITCH ASSY, SIDE STAND | MODEL G

37840-24B00

Unavailable

14

SCREW | MODEL G This part replaces 02112-05205.

02112-0520B

$1.86

15

LOCK WASHER | MODEL G This part replaces 08321-21055.

08321-0105A

$1.83

16

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 09443-08046.

09443-08046-XC0

Unavailable

17

HORN ASSY

38500-24B00

Unavailable

18

SCREW This part replaces 02142-06125.

02142-0612A

$1.37

19

SWITCH ASSY,SID | MODEL J/K This part replaces 37840-24B60.

37840-12X52

$77.83

19

SWITCH ASSY,SID | MODEL L/M/N/P; Includes Item(s) 20 - 21 This part replaces 37840-24B61.

37840-12X52

$77.83

20

SCREW | MODEL J/K This part replaces 02112-06205.

02112-0620A

$1.45

20

SCREW | MODEL L/M/N/P This part replaces 02112-36205.

02112-3620A

$2.07

21

LOCK WASHER | MODEL J/K This part replaces 08321-21064.

08321-0106A

$1.83

22

RELAY ASSY, SIDE STAND | MODEL J/K/L/M/N This part replaces 38740-24B10.

38740-24X50

$41.38

23

KEY, BLANK TYPE C (A51) | OPT

37146-03A00

$9.32

23

KEY, BLANK TYPE D (A52) | OPT

37146-03A10

$13.13

23

KEY, BLANK TYPE E (A53) | OPT

37146-03A20

$13.65

23

KEY, BLANK TYPE F (A54) | OPT

37146-03A30

$9.68
