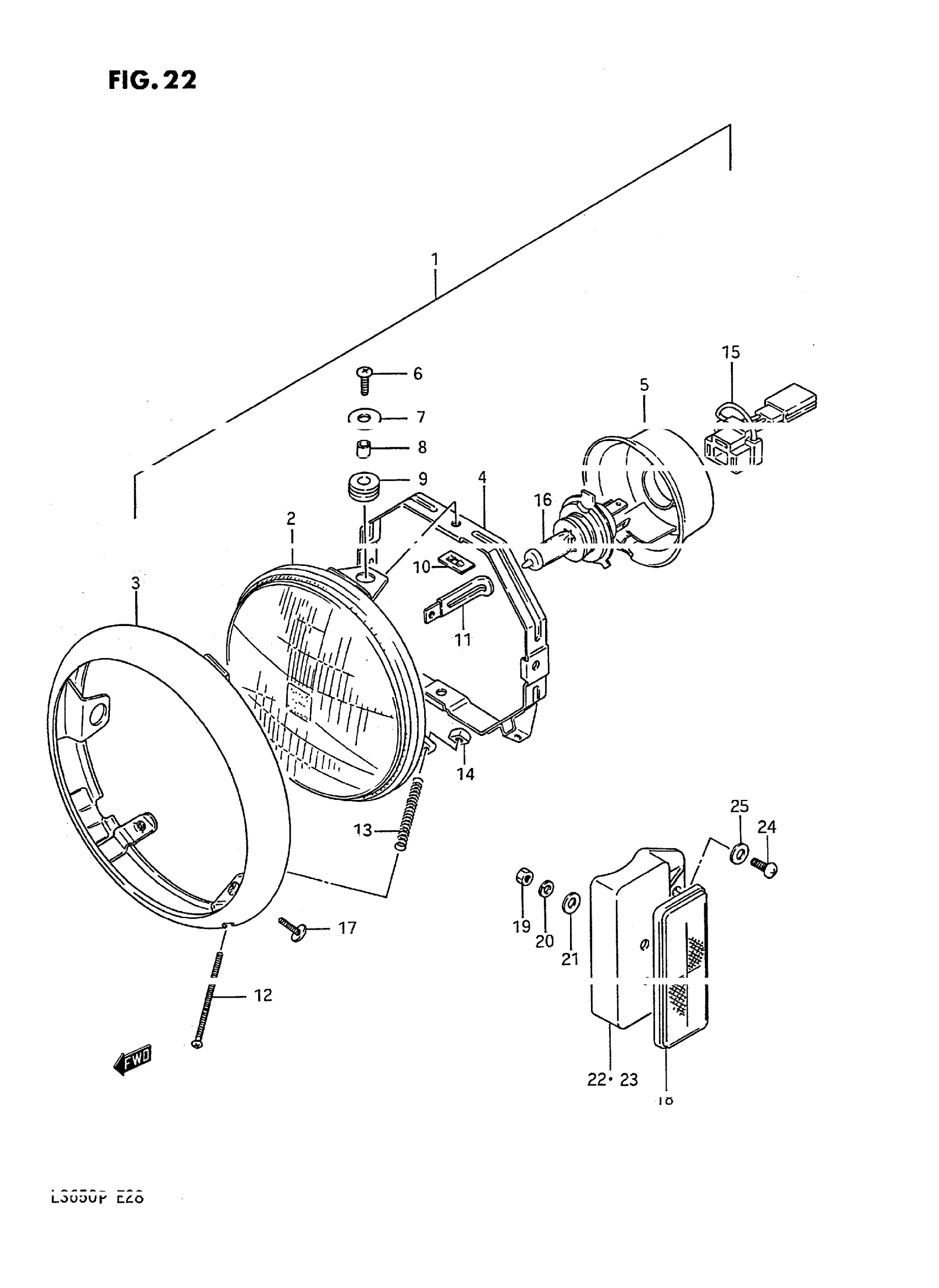

Suzuki LS650F (1995) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 15 This part replaces 35100-38A30-999.

35100-38A62-999

$308.58

2

UNIT, LAMP

35121-38A30

Unavailable

3

RIM

35111-38A00

$52.15

4

RING, MOUNTING

35130-38A00

$19.68

5

COVER, SOCKET

35173-38A00

$19.03

6

SCREW

09125-05102

$1.61

7

WASHER (5.5X18X1) This part replaces 35138-45230.

09160-05045

$2.01

8

SPACER

35133-45230

$3.72

9

CUSHION

35139-45230

$2.25

10

NUT

35155-48510

$2.58

11

CLAMP (L:60) This part replaces 09404-05401.

09404-06429

$1.88

12

SCREW This part replaces 35151-49430.

09125-04020

$2.72

13

SPRING, HEADLAMP ADJUST This part replaces 35154-49430.

35154-31300

$3.64

14

NUT

35135-45600

$4.12

15

SOCKET

36853-38A00

$15.70

16

BULB (12V,60/55W)

09471-12060

$23.37

17

SCREW This part replaces 02142-05128.

02142-05127

$2.03

18

REFLEX REFLECTOR, FRONT SIDE

35950-43431

$20.13

19

NUT This part replaces 08310-11056.

08310-0005A

$1.90

20

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.89

21

WASHER (5.2X16X1)

09160-05013

$1.30

22

BRACKET, FRONT SIDE RH

35956-24B00

Unavailable

23

BRACKET, FRONT SIDE LH

35957-24B00

Unavailable

24

.SCREW This part replaces 02142-05124.

02142-0512A

$1.41

25

WASHER (5.2X16X1)

09160-05013

$1.30
