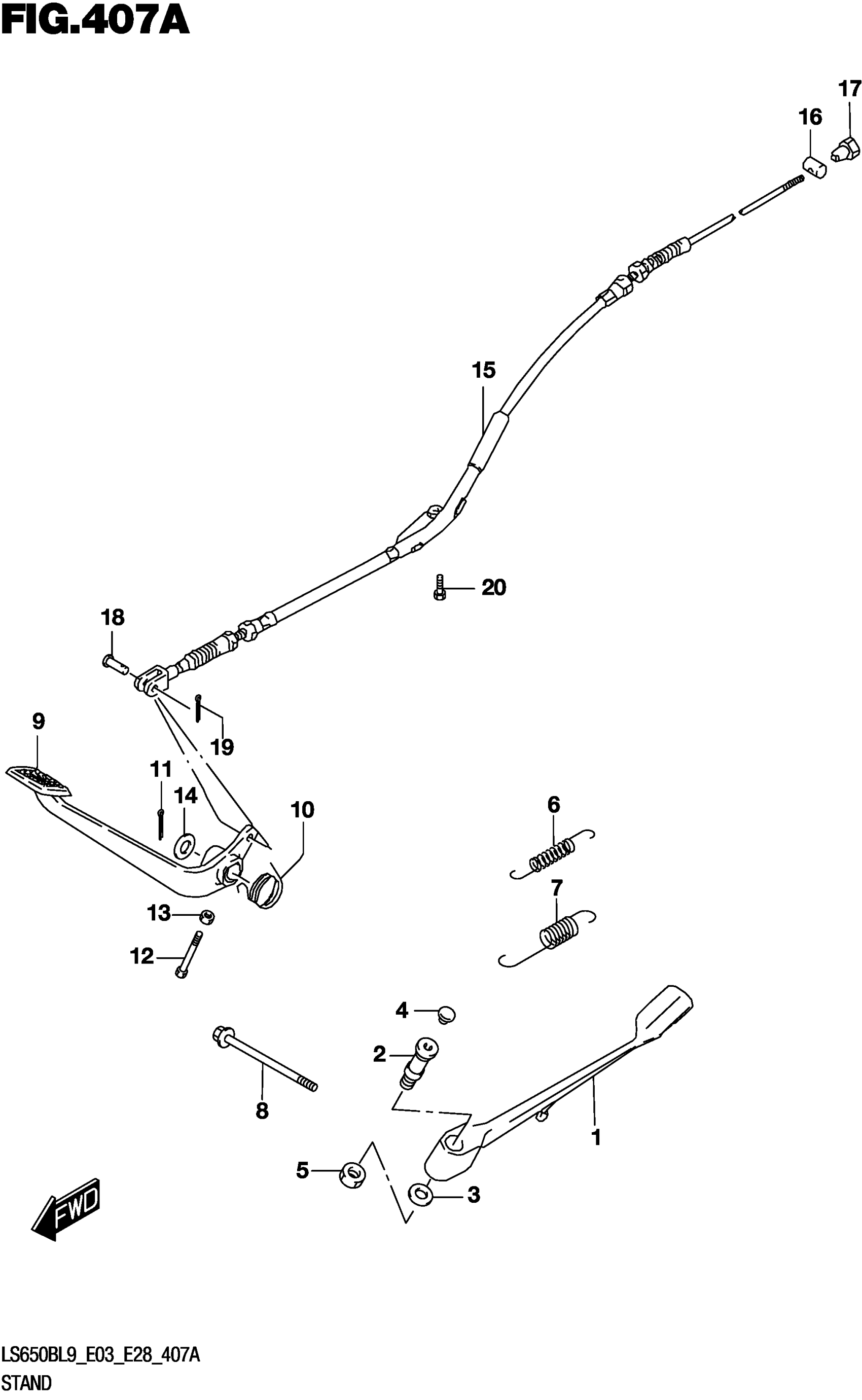

Suzuki LS650BL9 (2019) STAND Diagram

#

Description
Price

1

STAND

42310-24B20

$91.57

2

BOLT

42341-38B01

$15.43

3

SHIM (15X24X0.5)

09181-15158

$2.74

4

CAP

56246-24F00

$7.39

5

NUT

09140-10044

$3.30

6

SPRING

09443-15050

Unavailable

7

SPRING

09443-18024

Unavailable

8

BOLT (10X105)

09103-10087

$8.98

9

PEDAL

43100-24B10

$138.22

10

SPRING

09448-32017

$7.94

11

PIN

04111-3025A

$1.43

12

BOLT (6X31)

09100-06150

$2.07

13

NUT

08310-0006B

$2.44

14

WASHER (16.5X22X1)

09160-16043

$2.30

15

CABLE

58510-24B10

$131.75

16

.PIN (D:13.0,L:18.0)

09209-13018

$3.24

17

.NUT

09150-06010

$2.88

18

PIN (L:17.5)

09200-05001

$1.52

19

PIN

04111-2015A

$1.25

20

BOLT

01570-0616A

$2.32
