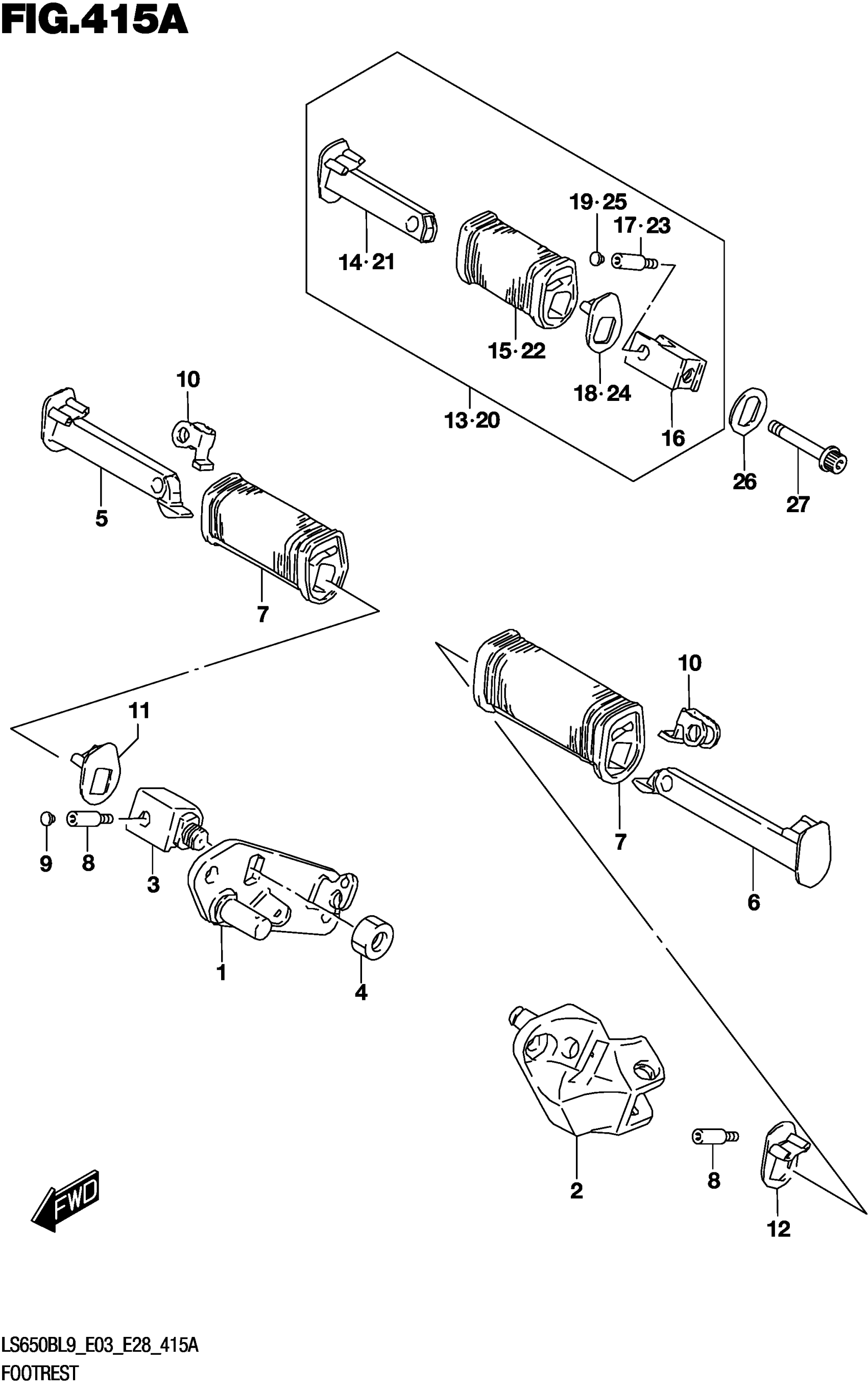

Suzuki LS650BL9 (2019) FOOTREST Diagram

#

Description
Price

1

BRACKET

43510-24B10

$75.68

2

BRACKET

43520-24B30

$339.93

3

HOLDER

43517-24B10

$108.32

4

NUT | RH

09140-16029

$4.18

5

BAR

43530-24B20

$94.67

6

BAR

43540-24B20

$94.67

7

RUBBER

43551-38A00

$15.44

8

BOLT (6X8)

09106-06100

$5.20

9

CAP

43576-24B00

$3.00

9

CAP

43576-24B00

$3.00

10

CUSHION

43570-24B01

$7.93

11

WASHER

43470-24B00

$8.65

12

WASHER

43480-24B00

$6.41

13

FOOTREST ASSY

43600-24B10

$144.45

14

.BAR

43610-24B10

$53.03

15

.RUBBER

43651-24B00

$24.57

16

.HOLDER

43621-24B20

Unavailable

17

BOLT (6X8)

09106-06100

$5.20

18

.WASHER

43570-38A00

Unavailable

19

CAP

43576-24B00

$3.00

20

FOOTREST ASSY

43700-24B10

$137.38

21

.BAR

43710-24B10

$65.02

22

.RUBBER

43651-24B00

$24.57

23

BOLT (6X8)

09106-06100

$5.20

24

.WASHER

43580-38A00

Unavailable

25

CAP

43576-24B00

$3.00

26

WASHER

43622-24B10

$3.42

26

WASHER

43622-24B10

$3.42

27

BOLT (10X45)

09106-10086

$7.05
