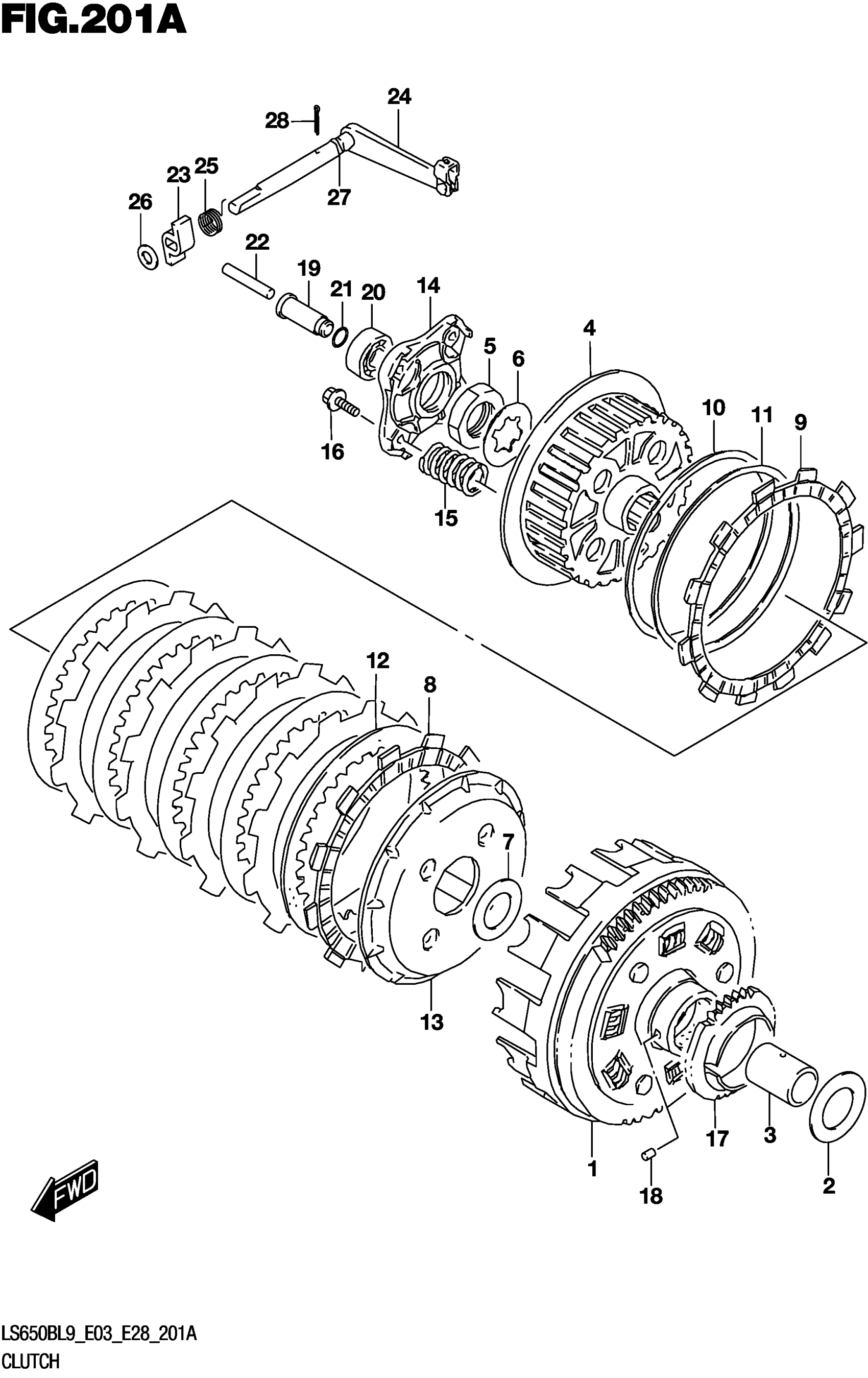

Suzuki LS650BL9 (2019) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY

21200-24B12

$413.45

1

GEAR ASSY

21200-24B12

$413.45

2

WASHER

08211-22443

$4.62

3

SPACER (22X28X32.5)

09180-22023

$27.28

4

HUB

21411-37401

$136.77

5

NUT

09140-22009

$8.63

6

LOCK WASHER

09167-22005

$2.12

7

WASHER

08211-22403

$3.90

8

PLATE,CLUTCH DRIVE (T:3.0)

21441-37400

$16.59

9

PLATE,CLUTCH DRIVE (T:3.5)

21442-37401

$17.09

10

SEAT, WAVE WASHER (T:1.4)

21471-37400

$8.95

11

WASHER (110.5X119X0.9)

09164-00004

$10.39

12

PLATE,CLUTCH DRIVEN (T:1.6)

21451-14A00

$8.71

13

DISC

21462-37400

$65.10

14

PLATE

21465-37400

$23.08

15

SPRING

09440-20016

$4.73

16

BOLT (6X20)

01550-0620A

$1.97

17

GEAR

16321-24B00

Unavailable

18

PIN (6X6)

09261-06002

$1.61

19

PIECE

23121-24B02

$23.08

20

BEARING (12X28X8)

09262-12001

$16.90

21

.O RING (D:1.9,ID:8.6)

09280-09005

$3.33

22-1

ROD

23111-24B00-445

$6.14

22-2

ROD

23111-24B00-455

$8.80

22-3

ROD

23111-24B00-465

$6.14

23

CAM

23263-24B01

$9.33

24

ARM ASSY

23270-24B03

$139.87

25

SPRING

09448-13010

$2.60

26

SHIM (10X14X1)

09181-10111

$1.97

27

O-RING (D:1.9 ID:6.8)

09280-07004

$1.55

28

PIN

04111-2020A

$1.22
