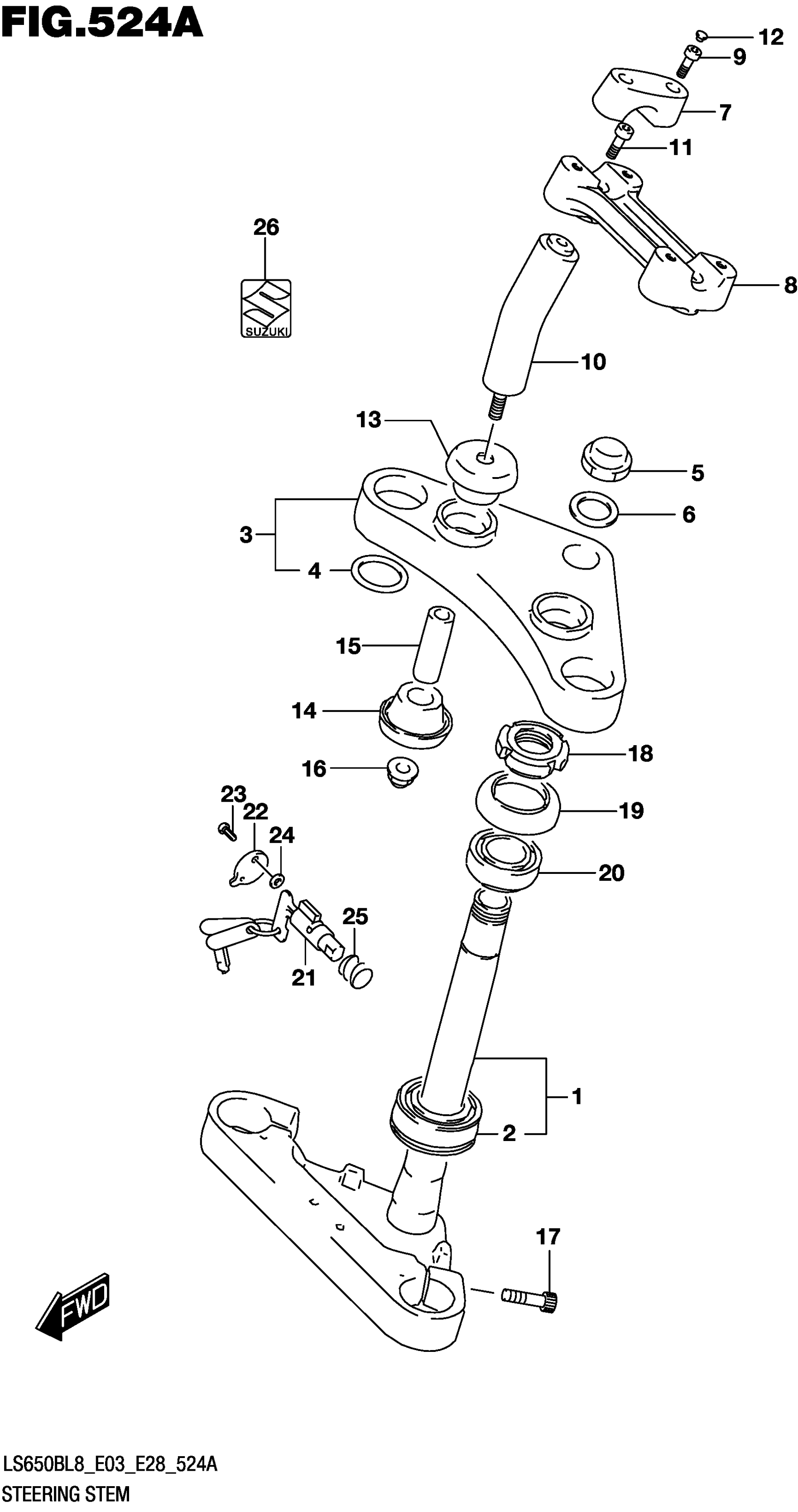

Suzuki LS650BL8 (2018) STEERING STEM Diagram

#

Description
Price

1

STEM

51410-24B70

$587.85

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$52.22

3

HEAD

51310-24B70

$424.80

4

.WASHER

51357-24B00

Unavailable

5

NUT

51353-24B10

Unavailable

6

WASHER (22.5X32X1.6)

51356-24B01

$7.13

7

HOLDER

56211-24B70

Unavailable

8

HOLDER

56221-24B70

$131.50

9

BOLT

07130-08307

$4.98

10

ARM

56231-24B70

$150.52

11

BOLT

07130-10257

$5.00

12

CAP (OD:14.5)

09250-06004

$1.45

13

CUSHION

56240-24B00

$46.98

14

CUSHION

56240-24B10

$46.98

15

SPACER (10.2X14X46)

09180-10065

$5.75

16

NUT

08319-31107

$2.73

17

BOLT

07130-10307

$5.63

18

NUT,STEERING STEM (25X44X10)

51631-28000

$19.60

19

SEAL,STEERING UPR DUST (33.6X

51643-49002

$13.92

20

BEARING (25X47X15)

09265-25019

$61.43

21

LOCK ASSY STEERING

51900-29F00

$231.35

22

CAP STEERING LOCK

51912-29F00

$7.03

23

PIN STEERING LOCK

51913-29F00

$5.65

24

WASHER STEERING LOCK

51914-29F00

$5.43

25

SPRING STEERING LOCK

51931-29F00

$4.90

26

EMBLEM,S

68281-47HA0

$7.11
