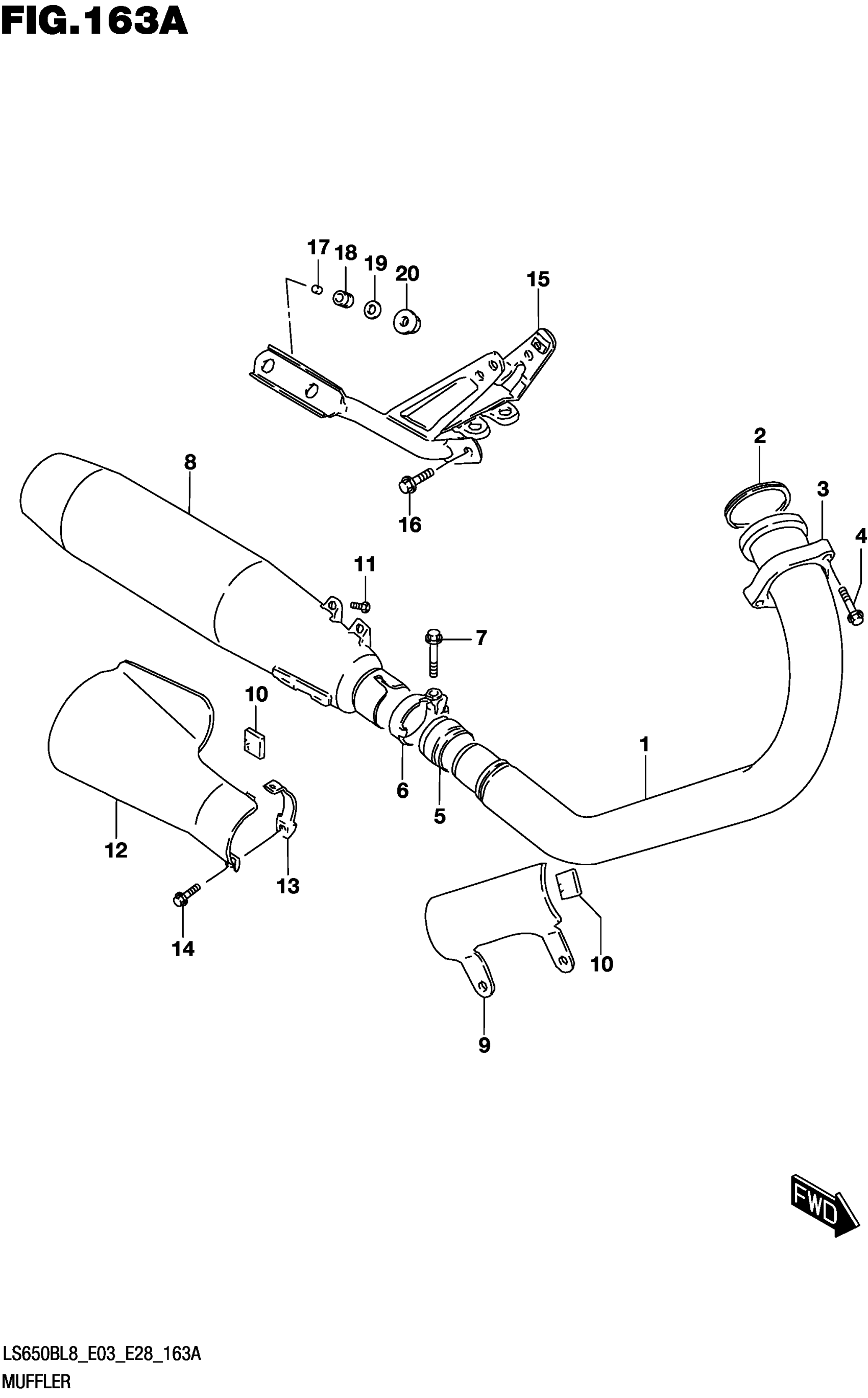

Suzuki LS650BL8 (2018) MUFFLER Diagram

#

Description
Price

1

PIPE

14150-24B01

$368.67

2

.GASKET

14181-45C00

$6.75

3

CLAMP

14182-38A02

$47.90

4

BOLT (8X35)

09104-08026

$3.44

5

CONNECTOR

14771-46E00

$17.59

6

CLAMP

14459-14A10

$23.82

7

BOLT

01550-0840A

$2.80

8

BODY

14310-24B45-H01

$432.05

9

COVER

14780-24B01

$70.07

10

GASKET

14789-24B12

$9.17

11

SCREW

02112-0610B

$1.83

12

COVER

14790-24B00

$136.53

13

CLAMP

14785-24B00

$9.97

14

BOLT (6X20)

01550-0620A

$1.97

15

STAY

14410-24B10-019

$95.22

16

BOLT (8X20)

09103-08505

$3.90

17

SPACER (8.5X12X11)

09180-08189

$2.68

18

CUSHION

09320-12041

$5.98

19

WASHER (8.5X26X1.6)

09160-08134

$2.06

20

NUT

08319-3108A

$2.31
