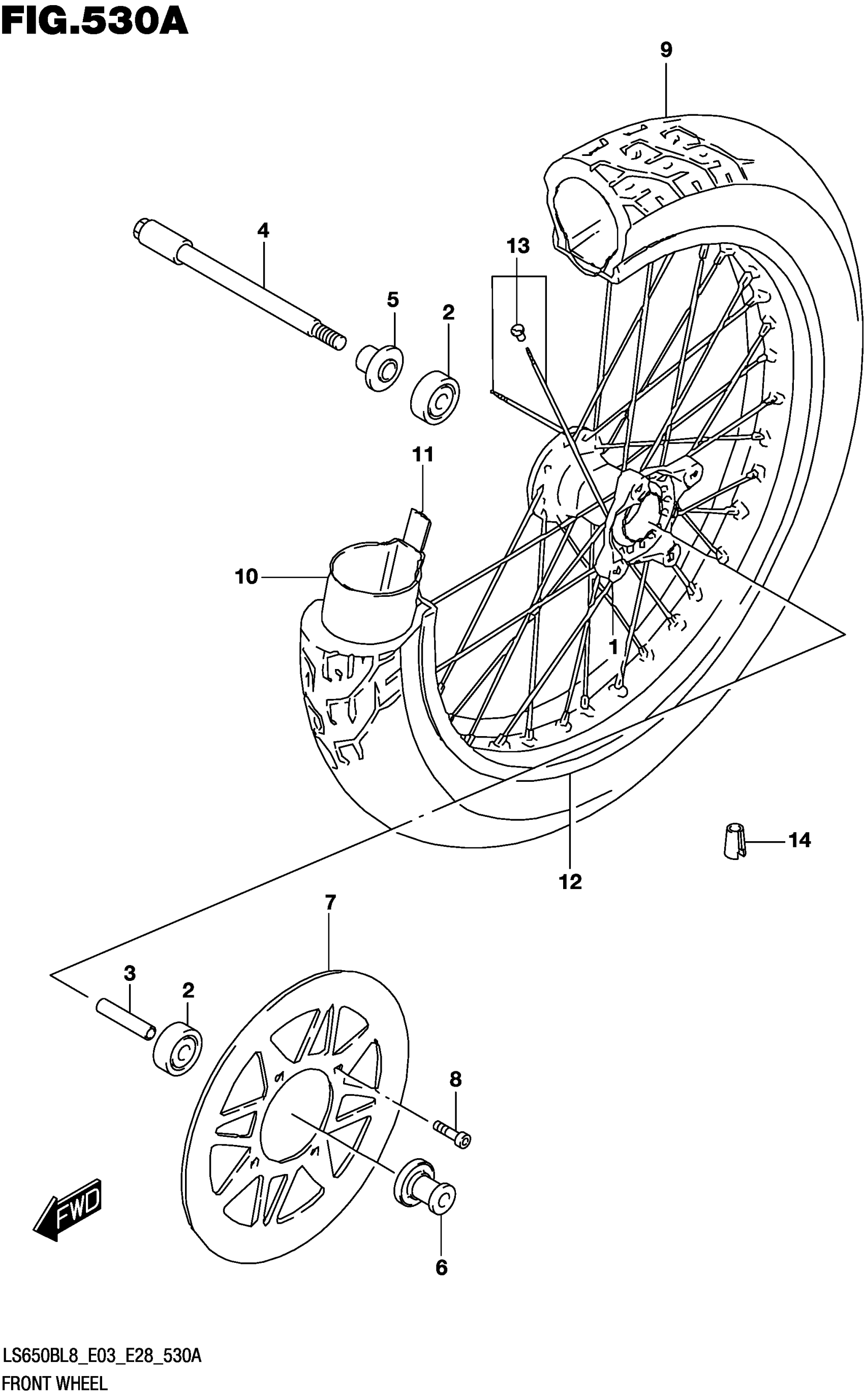

Suzuki LS650BL8 (2018) FRONT WHEEL Diagram

#

Description
Price

1

HUB

54111-24B01

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$20.52

3

SPACER (15.3X21.7X56)

09180-15074

$14.53

4

AXLE

54711-24B01

Unavailable

5

SPACER

54740-24B00

$24.57

6

SPACER

54750-24B00

$27.32

7

DISC

59211-24B20

$349.90

8

BOLT (8X25.5)

09106-08049

$5.02

9

TIRE,FRONT 100/ | IRC This part replaces 55100-24B02.

55100-24B03

$211.92

9

TIRE,FRONT 100/ | GS-18F This part replaces 55100-24B02.

55100-24B03

$211.92

10

TUBE This part replaces 55200-44610.

55200-44611

$44.78

11

PROTECTOR

55261-15020

$2.97

11

PROTECTOR

55261-15020

$2.97

12

RIM

55311-24B10

Unavailable

13

SPOKE SET

55320-24B10

$90.88

14-1

BALANCER WHEEL (15G) | 15G

55411-26G00

$8.73

14-2

BALANCER WHEEL (30G) | 30G

55413-41F00

$9.95
