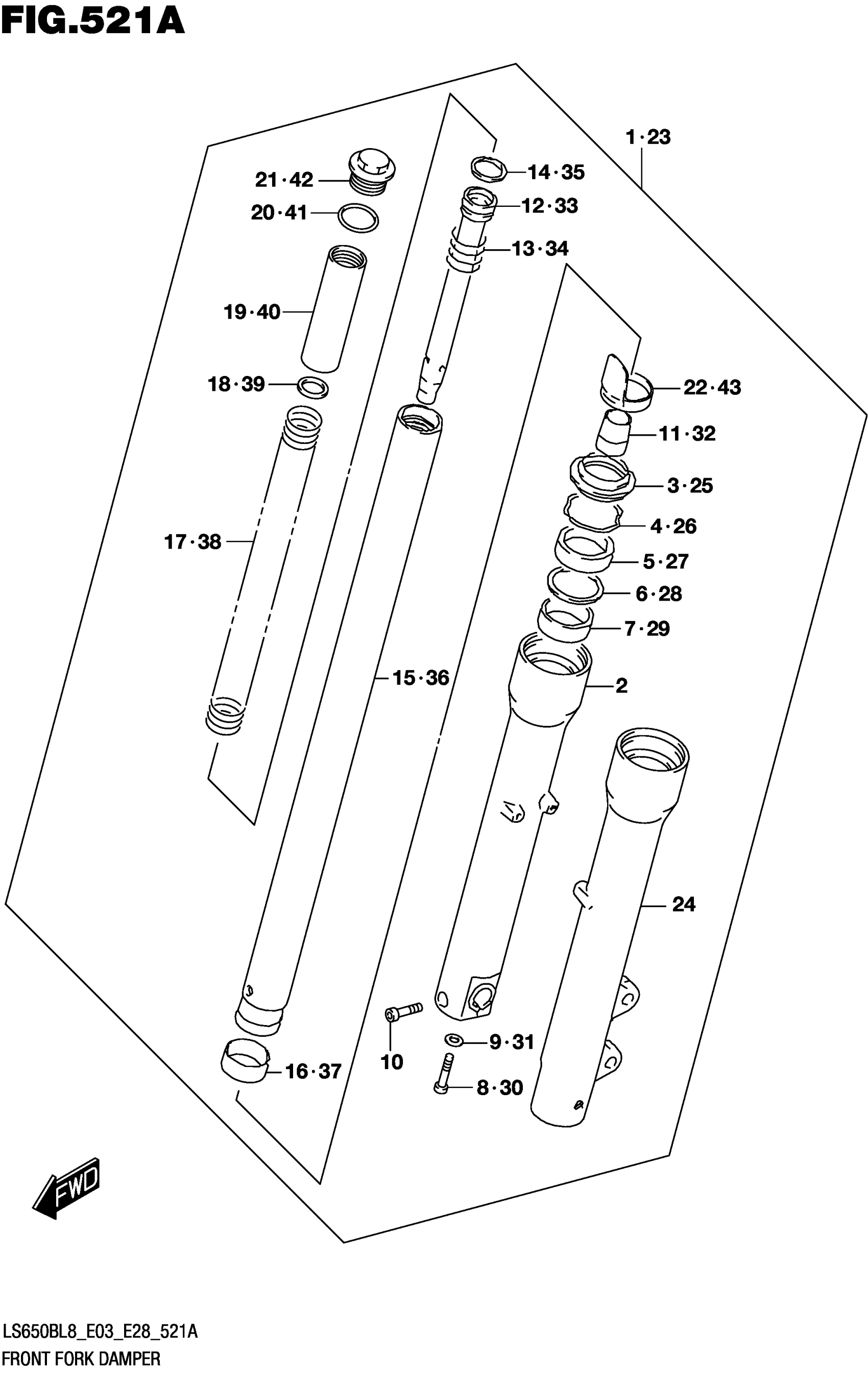

Suzuki LS650BL8 (2018) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY

51103-24B70

Unavailable

2

.TUBE

51130-24B70

Unavailable

3

.SEAL

51173-20A00

$15.18

4

.RING

51156-40301

$4.63

5

.OIL SEAL

51153-20A00

$17.89

6

.WASHER

51158-14100

$3.50

7

.METAL

51167-13A00

$9.12

8

.BOLT,FORK CYLINDER (10X25)

51147-16510

$4.09

9

.GASKET

51148-41310

$2.14

10

.BOLT

07130-08407

$2.88

11

.PIECE

51195-24B01

Unavailable

12

.CYLINDER

51146-24B01

Unavailable

13

.SPRING

51177-49440

Unavailable

14

.RING

51196-49440

Unavailable

15

.TUBE

51120-24B01

$432.87

16

.PISTON

51121-14100

$13.90

17

.SPRING

51171-24B00

Unavailable

18

.WASHER

51172-45C00

$7.57

19

.SPACER

51176-24B01

Unavailable

20

.O RING

51117-40300

$2.92

21

.CAP

51351-24B00

Unavailable

22

.PROTECTOR

51201-01DA0

$32.30

23

DAMPER ASSY

51104-24B70

$854.73

24

.TUBE

51140-24B70

$360.67

25

.SEAL

51173-20A00

$15.18

26

.RING

51156-40301

$4.63

27

.OIL SEAL

51153-20A00

$17.89

28

.WASHER

51158-14100

$3.50

29

.METAL

51167-13A00

$9.12

30

.BOLT,FORK CYLINDER (10X25)

51147-16510

$4.09

31

.GASKET

51148-41310

$2.14

32

.PIECE

51195-24B01

Unavailable

33

.CYLINDER

51146-24B01

Unavailable

34

.SPRING

51177-49440

Unavailable

35

.RING

51196-49440

Unavailable

36

.TUBE

51120-24B01

$432.87

37

.PISTON

51121-14100

$13.90

38

.SPRING

51171-24B00

Unavailable

39

.WASHER

51172-45C00

$7.57

40

.SPACER

51176-24B01

Unavailable

41

.O RING

51117-40300

$2.92

42

.CAP

51351-24B00

Unavailable

43

.PROTECTOR

51201-01DA0

$32.30
