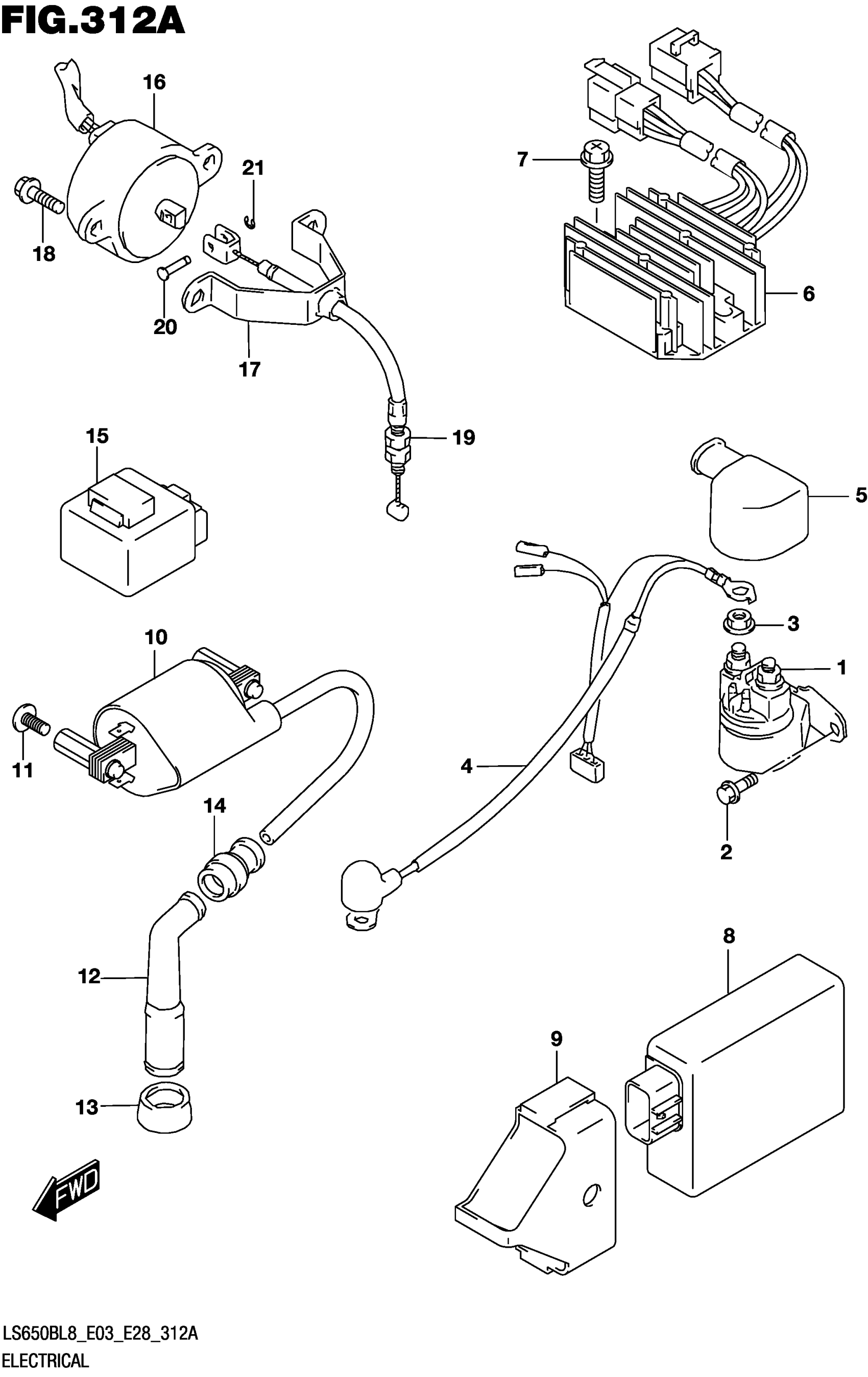

Suzuki LS650BL8 (2018) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY

31800-49100

$89.07

2

BOLT

01550-0610A

$1.97

3

NUT

08361-3506A

$1.81

4

WIRE

33850-24B10

$56.53

5

CAP

33624-49401

$8.13

6

RECTIFIER ASSY

32800-24B11

$319.40

7

SCREW

02162-0620C

$1.73

8

IGNITER ASSY

32900-24B30

$973.32

9

CUSHION

32980-24B00

$13.10

10

COIL ASSY

33410-24B00

$181.53

11

.SCREW

02142-0512A

$1.37

12

CAP

33510-45010

$23.52

13

SEAL,SPARK PLUG

33541-48H01

$4.00

14

SEAL,HIGH TENSION CORD (SIDE)

33542-48H01

$4.93

15

CONTROL UNIT

32910-24B10

$111.99

16

SOLENOID ASSY

33970-24B00

$377.97

17

BRACKET

33971-24B00

Unavailable

18

BOLT

01550-0616A

$1.97

19

CABLE ASSY

58900-24B01

$27.32

20

PIN (4X12.5)

09209-04020

Unavailable

21

E RING

08332-1103A

$2.35
