Partiron

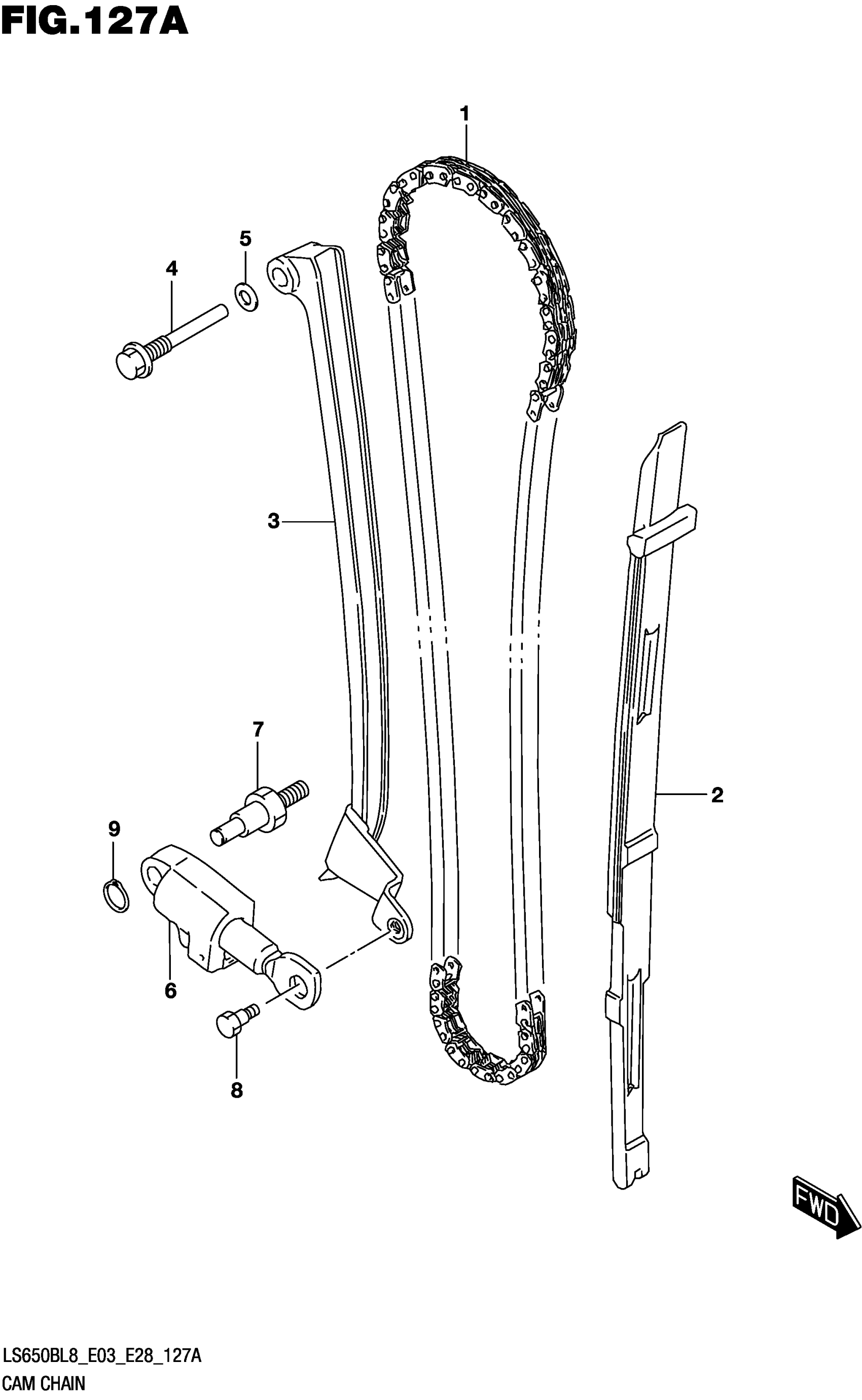

Suzuki LS650BL8 (2018) CAM CHAIN Diagram

#

Description
Price

1

CHAIN | 132LE

12760-24B10

$142.92

2

GUIDE

12771-24B01

$68.80

3

TENSIONER

12811-24B00

$133.58

4

BOLT

12812-24B00

$8.32

5

GASKET (8.2X14X1)

09168-08016

$1.64

6

ADJUSTER ASSY

12830-24B01

$126.82

7

STUD BOLT

09108-08194

$16.02

8

BOLT

09119-06069

$6.08

9

CIRCLIP

08331-31089

$1.77
