2017 Suzuki LS650BL7 Turnsignal Lamp Diagram

← All diagrams

Find the part on the Turnsignal Lamp diagram for your 2017 Suzuki LS650BL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

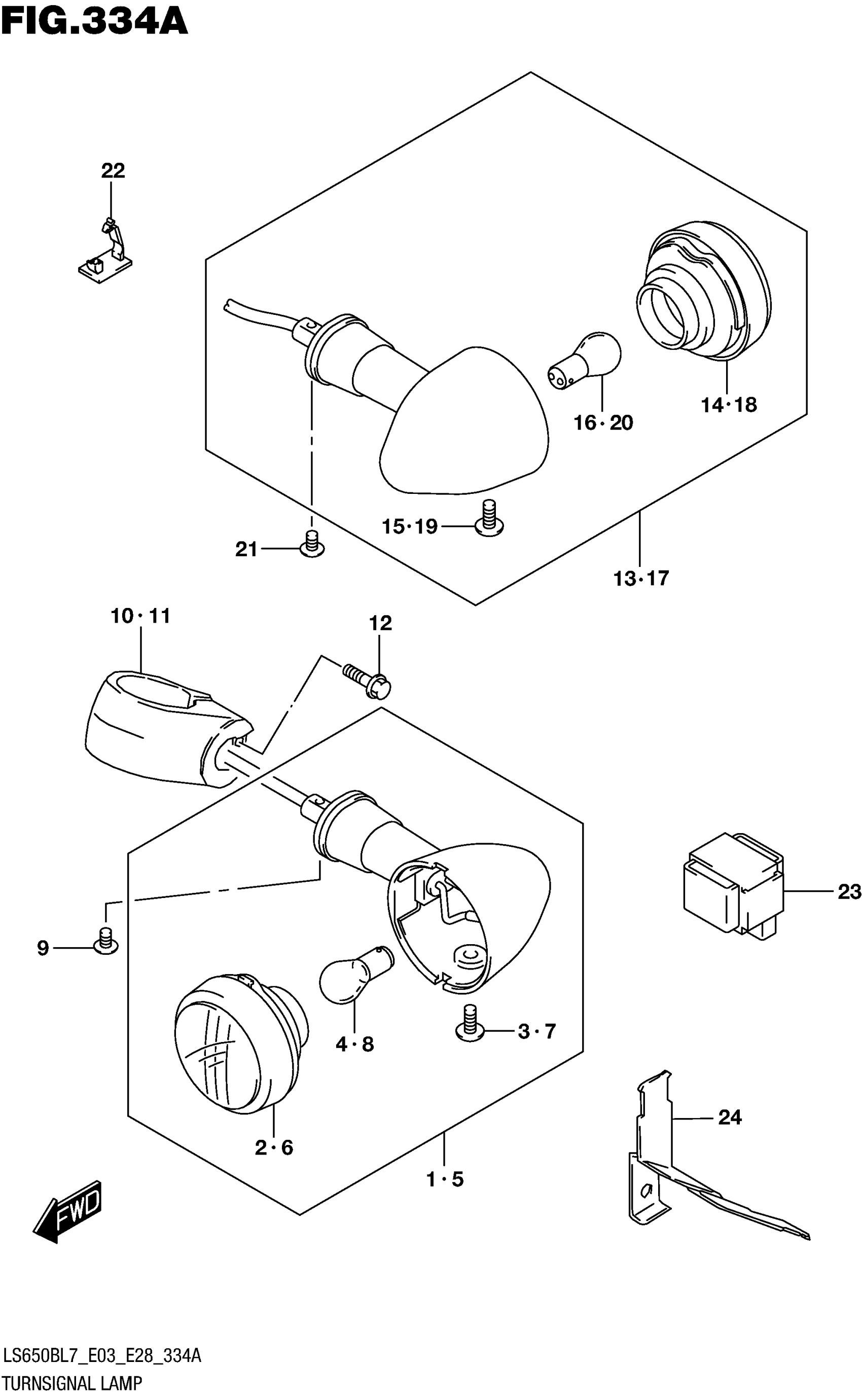

2017 Suzuki LS650BL7 Turnsignal Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, FRONT TURNSIGNAL R

35601-38AD0

1
Out of stock

2

.LENS

35610-38AA0

1
Out of stock

3

.SCREW (4X10)

35623-38AA0

1
Out of stock

4

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

5

LAMP ASSY, FRONT TURNSIGNAL L

35602-38AD0

1
Out of stock

6

.LENS

35630-38AA0

1
Out of stock

7

.SCREW (4X10)

35623-38AA0

1
Out of stock

8

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

9

SCREW

02142-0610A

2
Out of stock

10

BRACKET, FRONT TURNSIGNAL LAM

35671-24BB0

1
Out of stock

10

RH

35671-24BB0

1
Out of stock

11

BRACKET, FRONT TURNSIGNAL LAM

35681-24BB0

1
Out of stock

11

LH

35681-24BB0

1
Out of stock

12

BOLT

01547-0525A

—
Out of stock

13

LAMP ASSY, REAR TURNSIGNAL RH

35603-38AA0

1
Out of stock

14

.LENS

35630-38AE1

1

$31.82

In stock

15

.SCREW (4X10)

35623-38AA0

1
Out of stock

16

.BULB (12V,21W)

09471-12045

1
Out of stock

17

LAMP ASSY, REAR TURNSIGNAL LH

35604-38AA0

1
Out of stock

18

.LENS

35610-38AE1

1

$31.36

In stock

19

.SCREW (4X10)

35623-38AA0

1
Out of stock

20

.BULB (12V,21W)

09471-12045

1
Out of stock

21

SCREW

02142-0616A

2
Out of stock

22

CLAMP

09403-04310

4
Out of stock

23

RELAY ASSY This part replaces 38610-26E00.

38610-26E01

1
Out of stock

24

BRACKET, TURN SIGNAL RELAY

38621-24B10

1
Out of stock
