Description

Price

1

CYLINDER ASSY, FRONT MASTER

59600-38AB0

$338.87

2

.PISTON/CUP SET

59600-04810

$43.23

3

..BOOT

59666-44300

$5.54

4

.DIAPHRAGM

59667-49460

$9.36

5

.PLATE,DIAPHRAGM

59668-41C00

$8.92

6

.CAP

59669-41C00

$32.03

7

.SCREW

69689-49300

$1.81

8

.HOLDER

59671-05A00

$25.95

9

BOLT, FRONT BRG HOUSING This part replaces 07110-06205.

07130-0620B

$2.88

10

.PROTECTOR

59664-48B00

$12.43

11

CAP (OD:10)

09250-05009

$2.17

12

UNION This part replaces 09360-10041.

09360-10061

$6.07

13

WASHER (10X15X1.5)

09161-10009

$1.89

14

HOSE, FRONT BRAKE

59480-24B70

$145.27

15

GUIDE, BRAKE HOSE NO.1

59541-24B10

$6.82

16

BOLT

01547-0610A

$2.67

17

GUIDE, BRAKE HOSE NO.2

59268-24B10

Unavailable

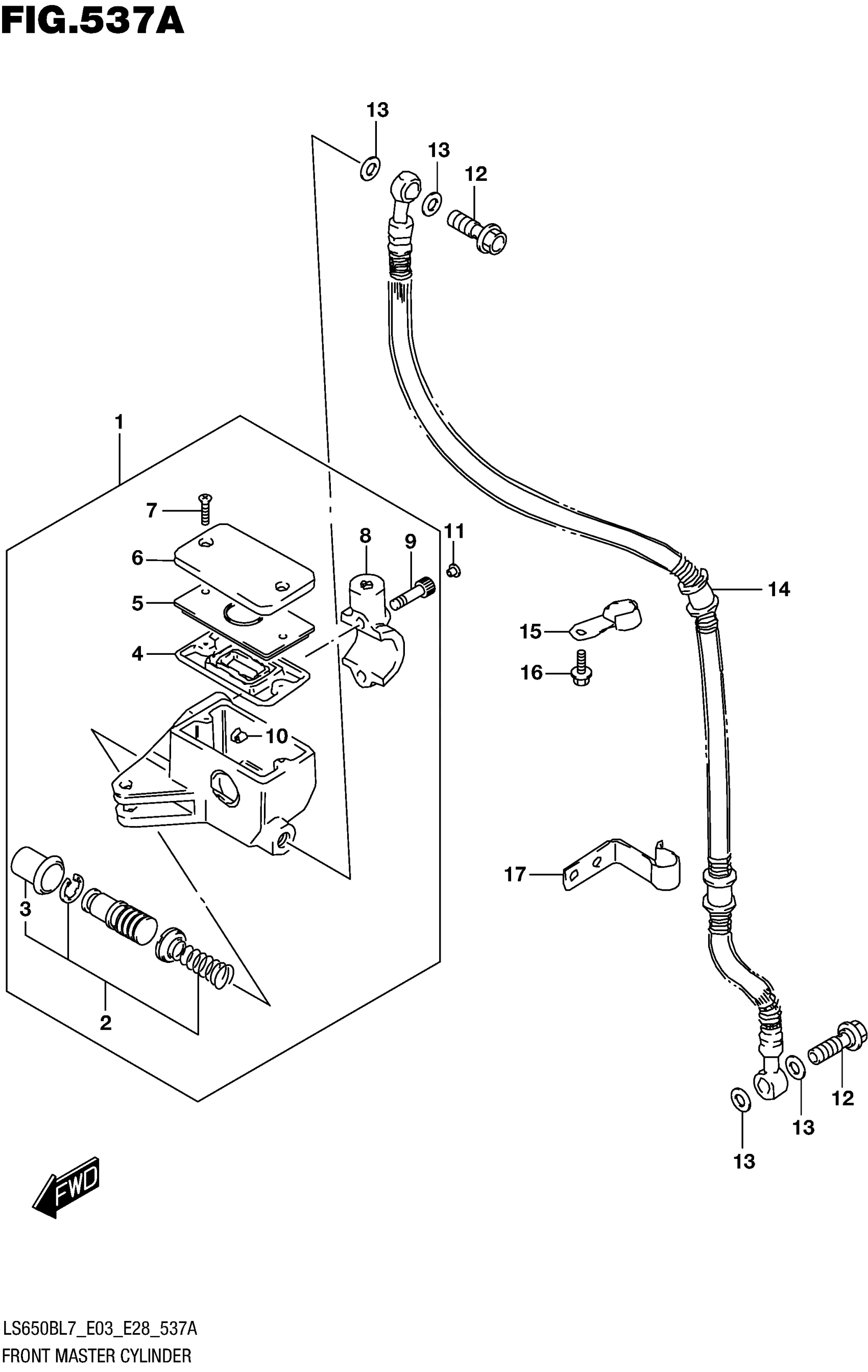

Suzuki LS650BL7 (2017) FRONT MASTER CYLINDER Diagram
