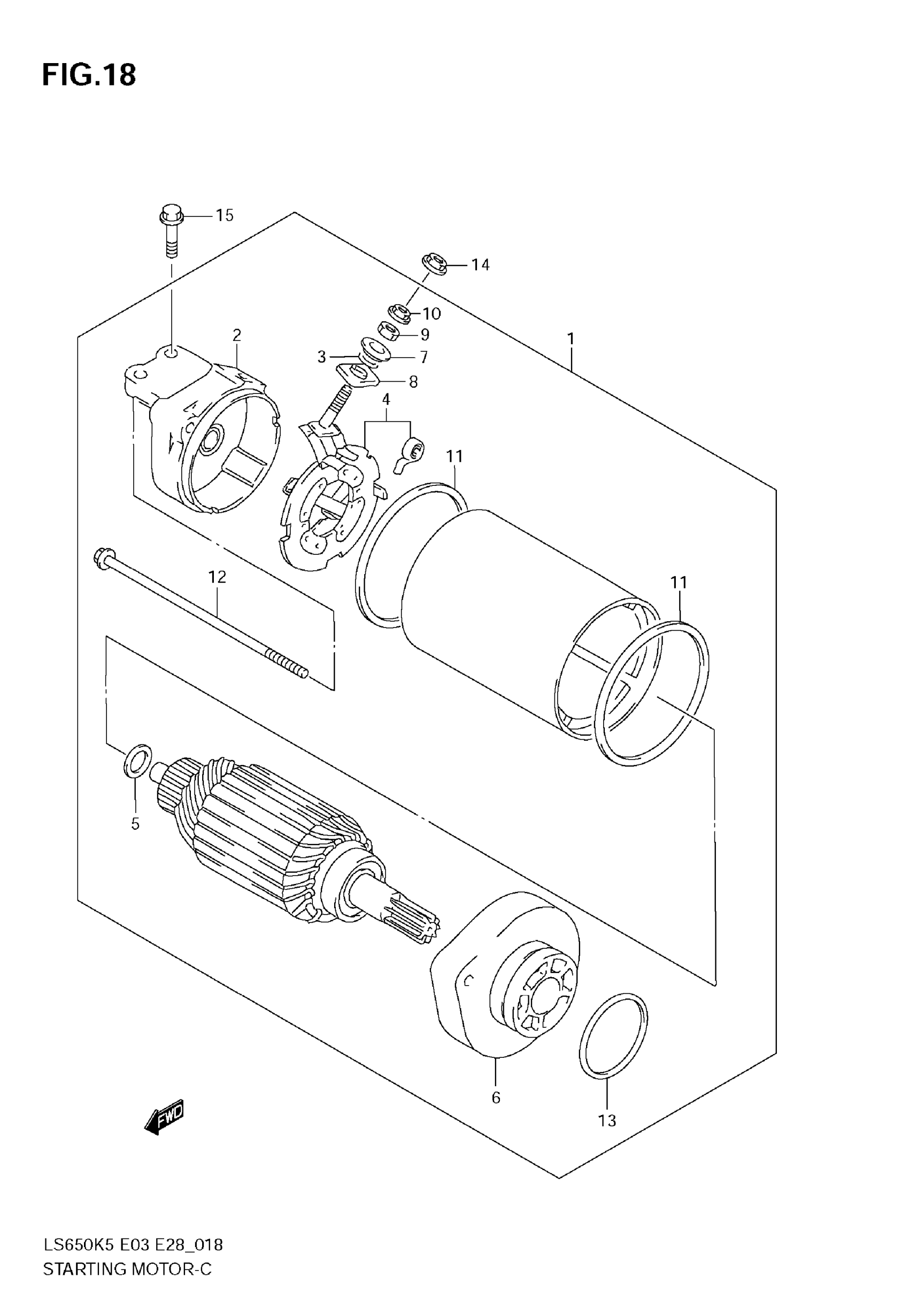

Suzuki LS650 (2009) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 13

31100-07F00

Unavailable

2

FRAME ASSY

31170-07F00

Unavailable

3

O RING

31143-38300

$5.75

4

HOLDER SET, BRUSH

31132-45C00

$80.57

5

SHIM SET

31170-43400

Unavailable

6

BRACKET SET

31150-44B00

Unavailable

7

BUSH

31172-38300

$5.24

8

BUSHING

31173-88C00

Unavailable

9

.NUT

08310-00067

$1.83

10

NUT

08361-3506A

$1.81

11

O RING

31264-44110

$13.40

12

BOLT This part replaces 31281-24B10.

31281-31D00

$9.77

13

O RING (D:2.1,ID;34.7)

09280-35005

$8.17

14

NUT

08361-3506A

$1.81

15

BOLT (6X20)

09103-06223

$2.49
