2009 Suzuki LS650 Speedometer Diagram

← All diagrams

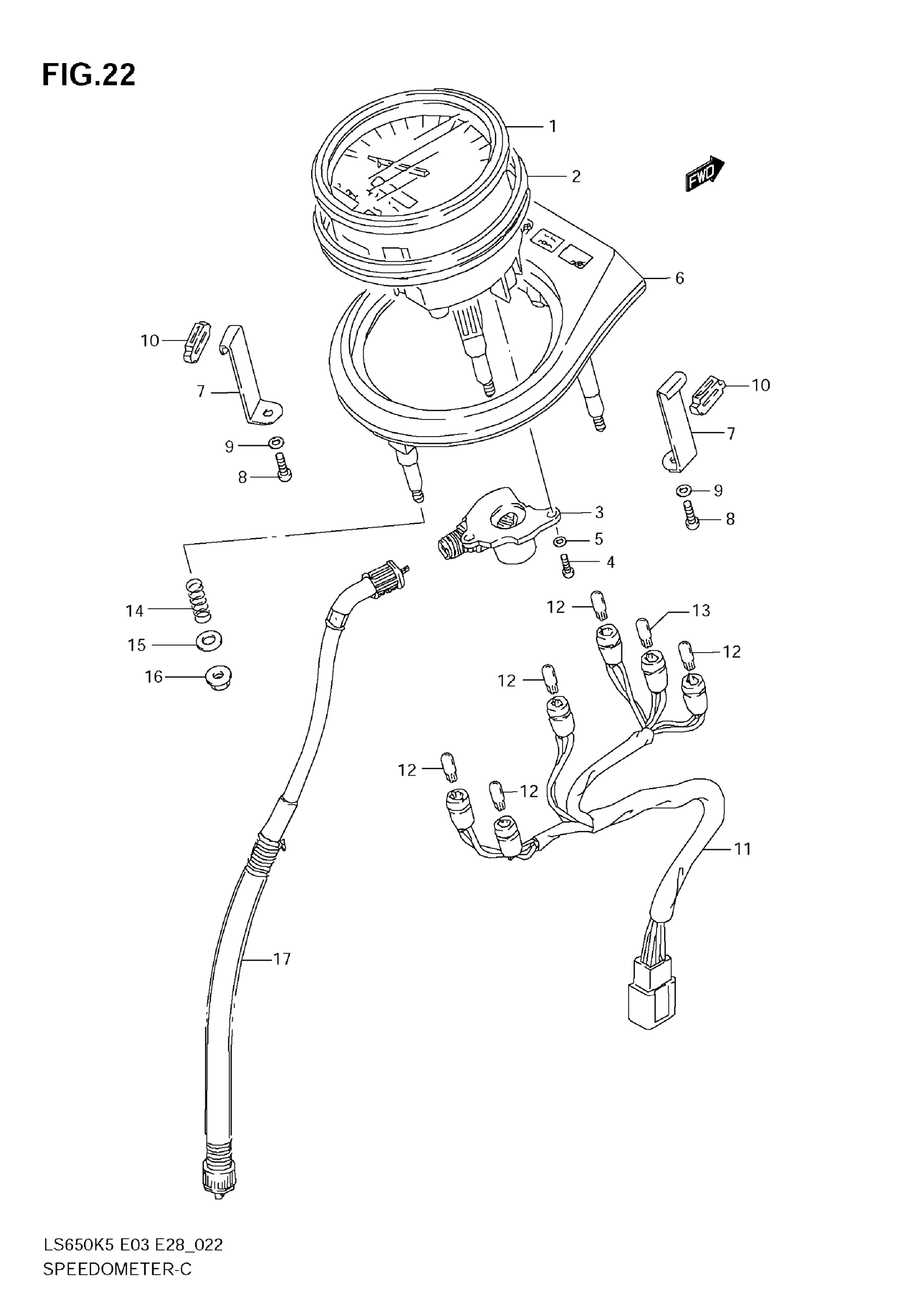

Find the part on the Speedometer diagram for your 2009 Suzuki LS650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LS650 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER (MILE/KILO)

34110-24C20

1
Out of stock

2

CUSHION, METER

34288-24B80

1
Out of stock

3

BOX, METER GEAR

34131-19B00

1
Out of stock

4

SCREW

02112-04087

2

$1.20

In stock

5

LOCK WASHER

08321-0104A

2
Out of stock

6

HOOD, METER

34151-24B81

1
Out of stock

7

BRACKET, METER

34111-24B80

2
Out of stock

8

SCREW

02112-04087

2

$1.20

In stock

9

LOCK WASHER

08321-0104A

2
Out of stock

10

CUSHION

34189-24B80

2
Out of stock

11

SOCKET, METER

34170-24B20

1
Out of stock

12

BULB (12V,3W,T6.5)

09471-12103

4
Out of stock

13

.BULB (12V1.7W)

09471-12108

1
Out of stock

14

SPRING

09440-11022

3
Out of stock

15

WASHER

09160-05048

3
Out of stock

16

NUT

08361-1505B

3
Out of stock

17

CABLE,SPEEDOMET This part replaces 34910-24B00.

34910-24B01

1
Out of stock
