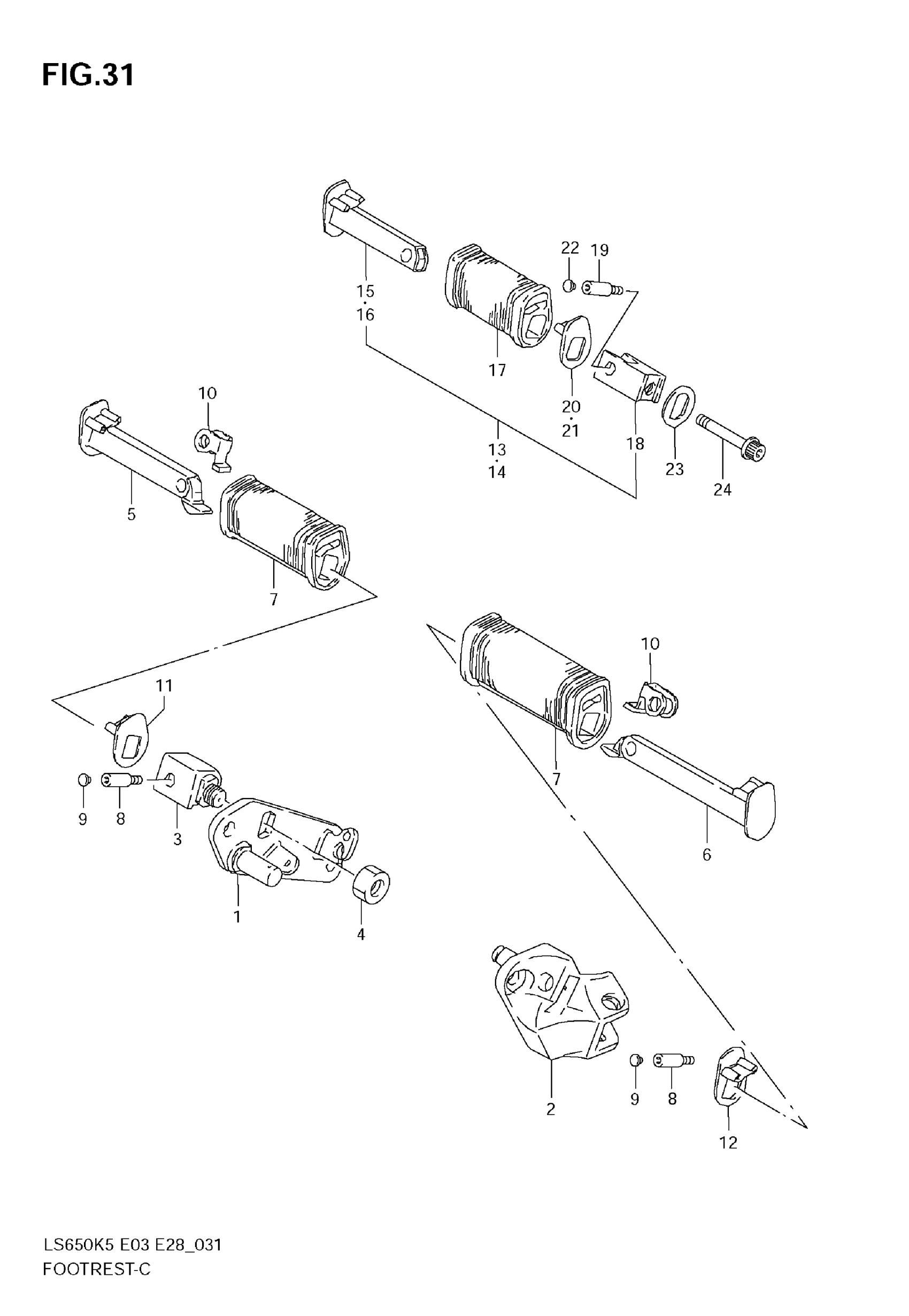

Suzuki LS650 (2009) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43510-24B00

$199.22

2

BRACKET, FRONT FOOTREST LH

43520-24B22

$339.93

3

HOLDER, FRONT FOOTREST RH

43517-24B01

$119.75

4

NUT, RH

09140-16029

$4.18

5

BAR, FRONT FOOTREST RH

43530-24B02

$53.74

6

BAR, FRONT FOOTREST LH

43540-24B02

$52.25

7

RUBBER

43551-38A00

$14.77

8

BOLT, RUBBER

09106-06100

$5.04

9

CAP

43576-24B00

$2.88

10

CUSHION, FRONT FOOTREST

43570-24B01

$7.60

11

WASHER, FRONT FOOTREST RH

43470-24B00

$8.65

12

WASHER, FRONT FOOTREST LH

43480-24B00

$6.14

13

FOOTREST ASSY, PILLION RH

43600-24B00

$141.73

14

FOOTREST ASSY, PILLION LH | Includes Item(s) 15 - 22

43700-24B00

$124.47

15

BAR, PILLION FOOTREST RH

43610-24B01

$41.63

16

BAR, PILLION FOOTREST LH

43710-24B01

$40.62

17

RUBBER, PILLION FOOTREST

43651-24B00

$24.57

18

HOLDER, PILLION FOOTREST

43621-24B10

Unavailable

19

BOLT, RUBBER

09106-06100

$5.04

20

WASHER, RH

43570-38A00

Unavailable

21

WASHER, LH

43580-38A00

Unavailable

22

CAP, BOLT

43576-24B00

$2.88

23

WASHER, HOLDER

43622-24B00

$2.77

24

BOLT

09106-10086

$7.05
