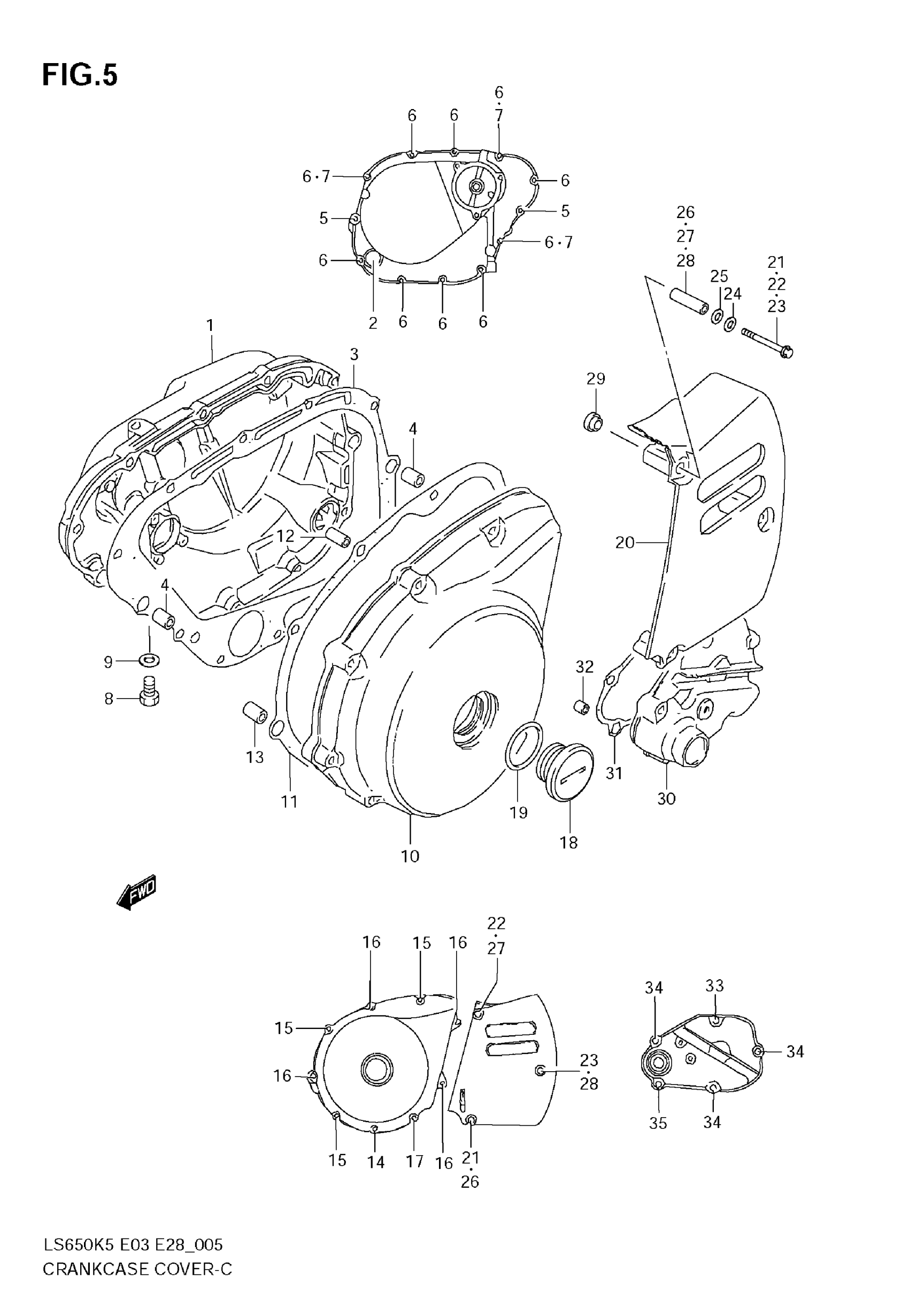

Suzuki LS650 (2009) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-24B00

Unavailable

2

LENS, OIL LEVEL

11971-33210

$17.41

3

GASKET, CLUTCH COVER | MODEL K5/K6

11482-24B11

$27.65

3

GASKET, CLUTCH COVER | MODEL K7/K8/K9

11482-24B20

$28.44

4

PIN

04211-11169

$1.82

5

BOLT

09103-06214

$2.57

6

BOLT

09103-06212

$2.53

7

GASKET (5.8X13X1.2)

09168-06023

$2.09

8

PLUG, OIL GALLERY

09247-12104

$2.80

9

GASKET

09168-12002

$1.63

10

COVER, GENERATOR

11351-24B10

$199.57

11

GASKET, GENERATOR COVER

11483-24B01-H17

$16.39

12

PIN

04211-09189

$1.70

13

PIN

04211-11189

$1.86

14

BOLT

09103-06212

$2.53

15

BOLT

09103-06214

$2.57

16

BOLT

09103-06224

$2.77

17

BOLT

09103-06238

$2.74

18

PLUG

09259-36011

$19.39

19

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.31

20

COVER, ENGINE SPROCKET

11361-24B10

$127.21

21

BOLT

09103-06224

$2.77

22

BOLT

09103-06238

$2.74

23

BOLT

09103-06216

$2.80

24

WASHER

09160-06125

$1.97

25

CUSHION, OUTER

09161-09006

$2.44

26

SPACER (L:31.5)

09180-06277

$3.69

27

SPACER (L:38.3)

09180-06279

$4.19

28

SPACER (L:41.3)

09180-06280

$5.52

29

CUSHION, INNER

09161-09005

$2.40

30

COVER, GEAR SHIFT

11371-24B01

$112.45

31

GASKET, GEAR SHIFT COVER | MODEL K5/K6

11485-24B10

$7.98

31

GASKET, GEAR SHIFT COVER | MODEL K7/K8/K9

11485-24B20

$8.32

32

PIN

04211-09109

$1.70

33

BOLT | MODEL K5/K6 This part replaces 01547-06163.

01547-0616B

$2.50

33

BOLT | MODEL K7/K8/K9

01547-0616A

$2.09

34

BOLT, FINAL GEAR CASE | MODEL K5/K6 This part replaces 01547-06303.

01547-0630B

$2.80

34

BOLT | MODEL K7/K8/K9

01547-0630A

$2.38

35

BOLT, WATER PUMP | MODEL K5/K6 This part replaces 01547-06353.

01547-0635B

$2.80

35

BOLT | MODEL K7/K8/K9

01547-0635A

$2.38
