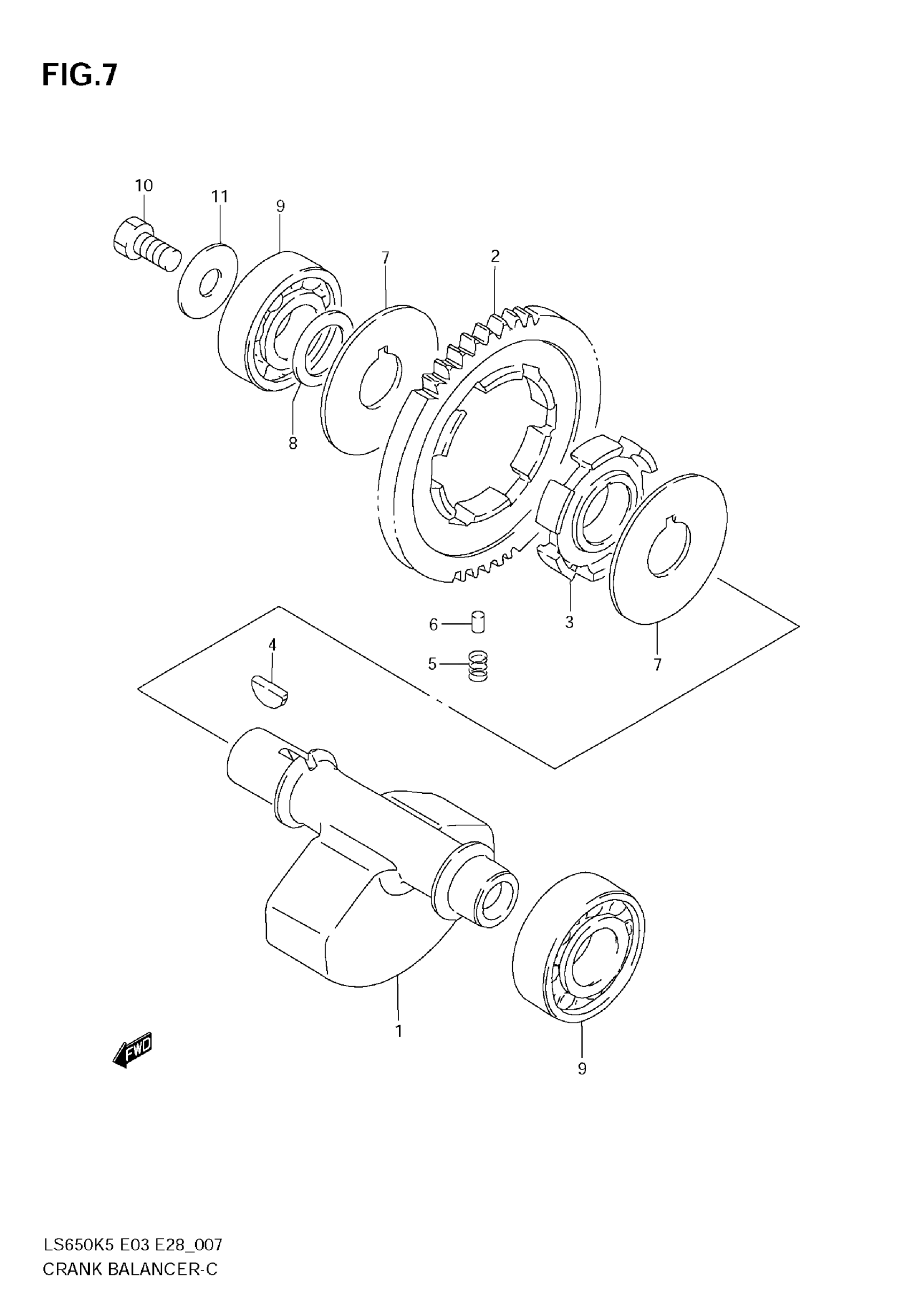

Suzuki LS650 (2009) CRANK BALANCER Diagram

#

Description
Price

1

BALANCER, CRANK

12651-24B01

Unavailable

2

GEAR, BALANCER DRIVEN

12666-24B01

Unavailable

3

RACE, INNER

12669-24B01

Unavailable

4

KEY

09420-04008

$3.08

5

SPRING

09440-09031

$2.80

6

PIN

09202-04017

$4.12

7

WASHER (20X54X2)

09166-20010

Unavailable

8

WASHER

09181-20158

$3.38

9

BEARING (20X47X14)

09262-20089

$32.10

10

BOLT

01500-1016B

Unavailable

11

WASHER

08211-10285

$3.19
