1972 Yamaha LS2 (LS2) Transmission Diagram

← All diagrams

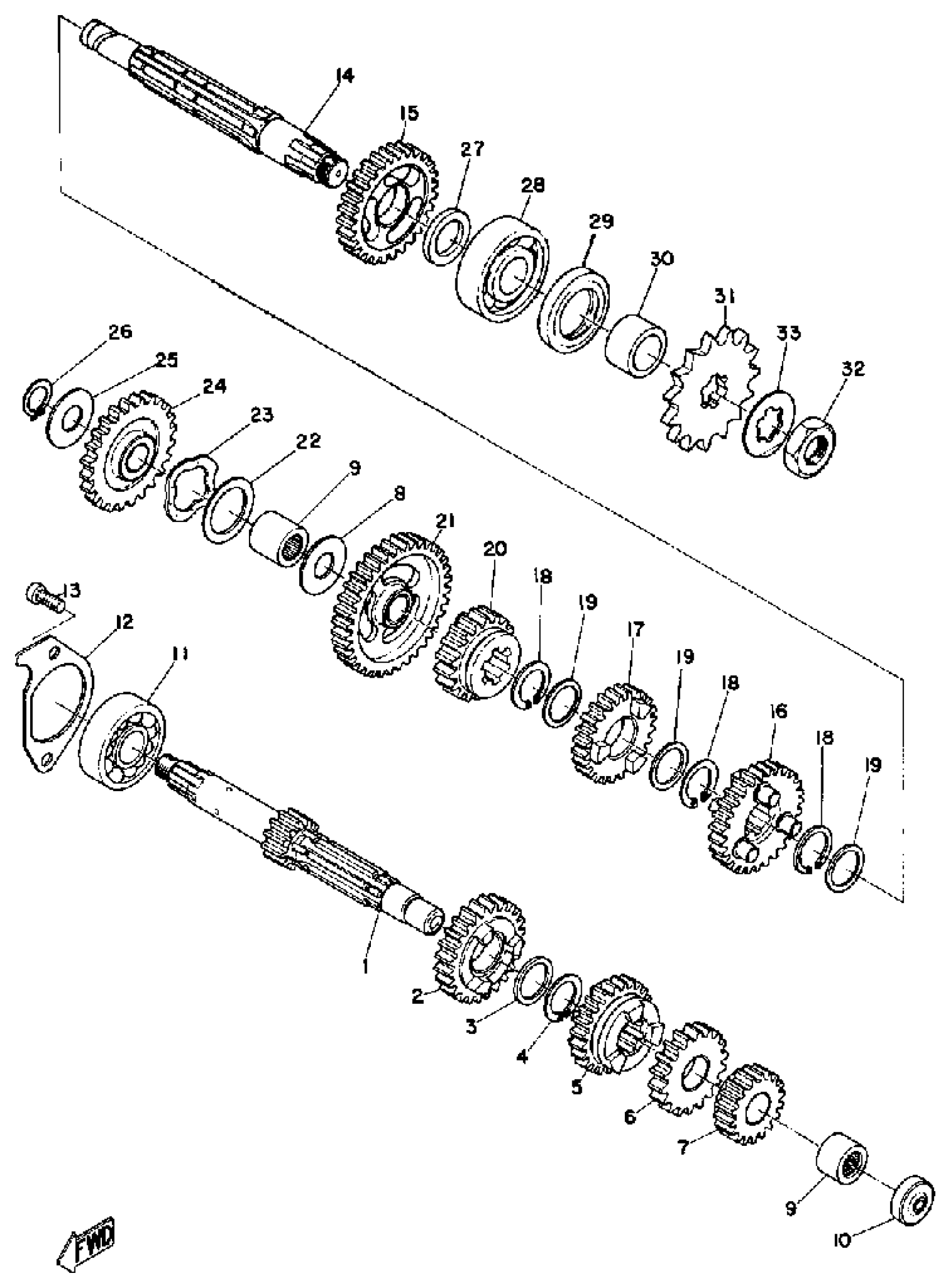

Find the part on the Transmission diagram for your 1972 Yamaha LS2 (LS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha LS2 (LS2) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

(183-17411-00-00)

1
Out of stock

2

GEAR, 5TH PINION

(183-17151-00-00)

1
Out of stock

3

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

4

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

5

GEAR, 4TH PINION

(307-17141-00-00)

1
Out of stock

6

GEAR, 3RD PINION

(307-17131-00-00)

1
Out of stock

7

GEAR, 2ND PINION

(183-17121-01-00)

1
Out of stock

8

SHIM, DRIVE AXLE

164-17427-00-06

1

$5.15

In stock

9

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

1
Out of stock

10

SEAL, PUSH ROD (3V6)

93109-06060-00

1

$7.51

In stock

11

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

12

PLATE, COVER

(132-17471-02-00)

1
Out of stock

13

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

14

AXLE, DRIVE

(183-17421-00-00)

1
Out of stock

15

GEAR, 2ND WHEEL

(307-17221-01-00)

1
Out of stock

16

GEAR, 3RD WHEEL

(307-17231-00-00)

1
Out of stock

17

GEAR, 4TH WHEEL

(307-17241-00-00)

1
Out of stock

18

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

19

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

20

GEAR, 5TH WHEEL

(183-17251-00-00)

1
Out of stock

21

GEAR, 1ST WHEEL

(307-17211-01-00)

1
Out of stock

22

WASHER, PLATE(1FK)

90201-256K6-00

—

$3.49

In stock

23

WASHER, WAVE

(131-15643-00-00)

1
Out of stock

24

GEAR, KICK IDLE

(183-15651-00-00)

1
Out of stock

25

SHIM, MAIN AXLE (1.0)

164-17417-00-10

—
Out of stock

26

CIRCLIP(1AR)

99009-15400-00

—

$5.10

In stock

27

SPACER

90560-20038-00

1
Out of stock

28

—

$54.91

In stock

29

OIL SEAL

93106-28043-00

—

$11.88

In stock

30

COLLAR

90387-20346-00

1
Out of stock

31

—

$13.78

In stock

31

SPROCKET,DRIVE 14T(5171746142)

93812-14035-00

—
Out of stock

31

SPROCKET,DRIVE 15T(5171746152)

93812-15063-00

—
Out of stock

32

NUT,SPEC'L SHAPE

90179-16018-00

—

$11.26

In stock

33

WASHER, LOCK (1L8)

90215-16127-00

—

$8.91

In stock
