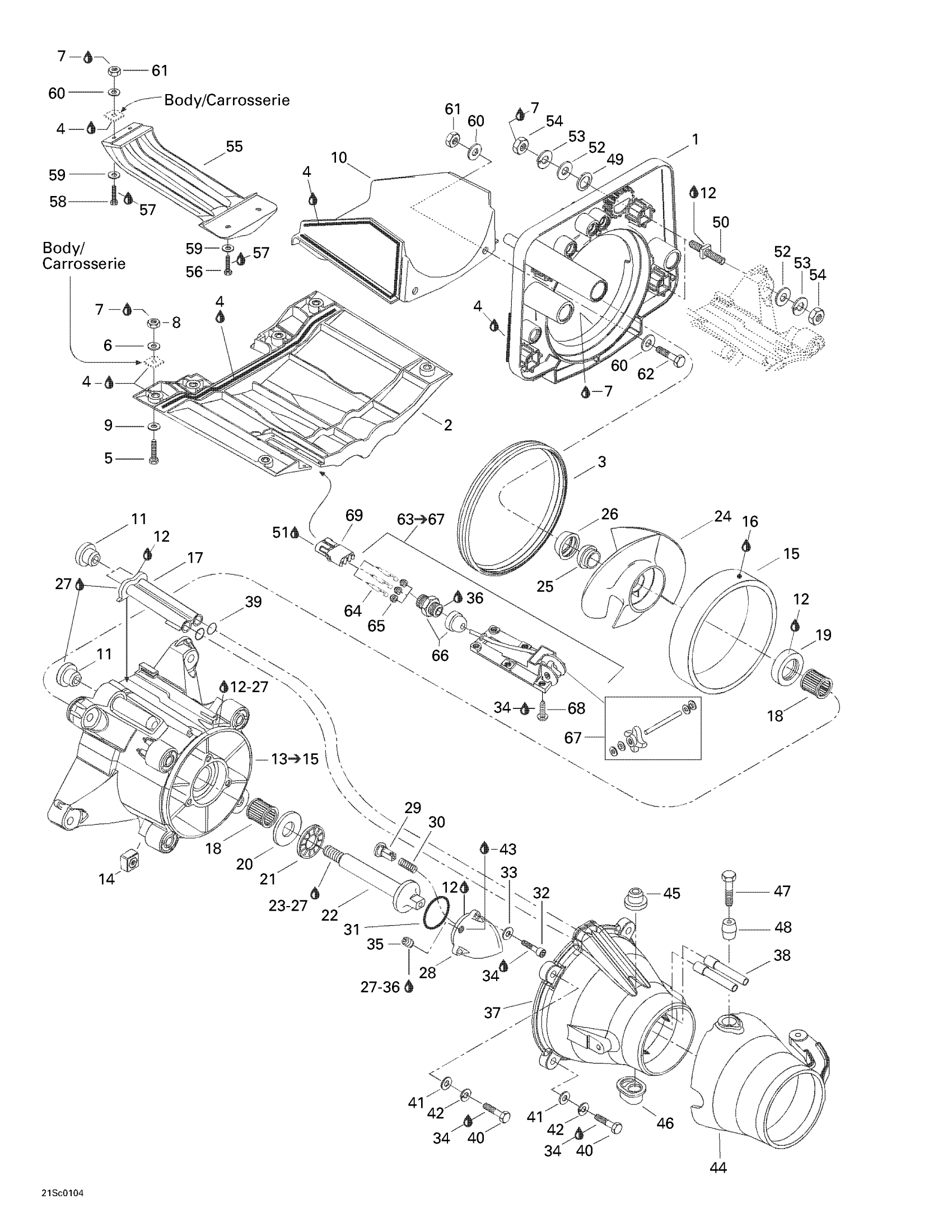

Sea-doo LRV, 5697, 2001 Propulsion System Diagram

#

Description
Price

1

Pump Support

271000950

Unavailable

2

Riding Plate

271000712

Unavailable

3

Neoprene Seal

293200051

$14.90

4

Instant Gasket

219701421

$51.99

5

Hex. Screw M8 X 40

207184060

$2.12

6

Flat Washer 8 mm, Stainless

234082600

$2.27

7

Silicone Sealant 51388, 300 ml

296000309

$36.99

8

Hex. Elastic Nut M8

232581600

$1.43

9

Stainless, Flat Washer 8 mm

234081600

$0.52

10

SHOE - Call your local BRP dealership

271000792

Unavailable

11

Watertight Seal

293250084

$6.67

12

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

13

IMPELLER HOUSING ASS'Y - Call your local BRP dealership | Includes 7 - 10.

271001143

Unavailable

14

Square Nut M8

211100033

$16.39

15

Wear Ring

271000653

$54.45

16

Sealant Loctite 648

219703000

$41.01

17

Water Outlet

271000785

$3.49

18

Needle Bearing

293350017

$24.60

19

Oil Seal

267000094

$20.12

20

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

21

Thrust-Bearing

293350022

$41.01

22

Impeller Shaft

271000965

$108.18

23

Loctite 262, 50 ml

413705200

Unavailable

24

Impeller Assy - Call your local BRP dealership

204160136

Unavailable

25

Impeller Boot

271000516

$7.88

26

Impeller Ring

271000517

$7.88

27

Was 293800041 Loctite Primer 7649

219704458

$41.99

28

IMPELLER COVER - Call your local BRP dealership

271000971

Unavailable

29

PUSHER - Call your local BRP dealership

271000978

Unavailable

30

SPRING - Call your local BRP dealership

271000973

Unavailable

31

O-Ring

293300011

$7.42

32

Socket Head Screw M6 X 25

205062560

$1.63

33

Stainless Flat Washer M6

234061600

$0.28

34

Loctite 243, 10 ml

293800060

$21.49

35

Pipe Plug Socket Head 1/8-27 Npt

211500001

$8.06

36

Was 293800013 Loctite 56765

219704454

$63.40

37

Venturi (Black)

271001082

Unavailable

38

Siphon Tube

271001133

$8.09

39

O-Ring

293300013

$6.54

40

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

41

Flat Washer M8.5 x 18

293050001

$1.48

42

Lock Washer 8 mm, Stainless

234181601

$0.52

43

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$15.64

44

Steering Nozzle

204160144

Unavailable

45

Venturi Bushing

293900001

$7.04

46

Plastic Bushing

293900010

$8.21

47

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

48

Venturi Spacer

204160153

Unavailable

49

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable

50

Square Stud

250300022

$17.88

51

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

52

Flat Washer 10 mm, Stainless

234002600

$2.12

53

Helicoidal Lock Washer M10 | XT Models

234101601

$1.06

54

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

55

PUMP GRATE - Call your local BRP dealership

271000790

Unavailable

56

Hex. Screw M6 X 16

207161660

$1.40

57

Loctite 271, 10 ml

293800005

$23.85

58

Hex. Screw M6 X 40

207164060

$3.15

59

Stainless Flat Washer M6

234061600

$0.28

60

Flat Washer M6, Stainless

234062600

$0.73

61

Hex. Elastic Stop Nut M6

232561600

$1.06

62

Hex. Forming Screw M6 X 20

207162060

$1.18

63

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

64

Male Terminal | XT Models

278000222

$2.93

65

Wire Seal

278000218

$4.00

66

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

67

Paddle Wheel Kit

295500108

Unavailable

68

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

69

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31
