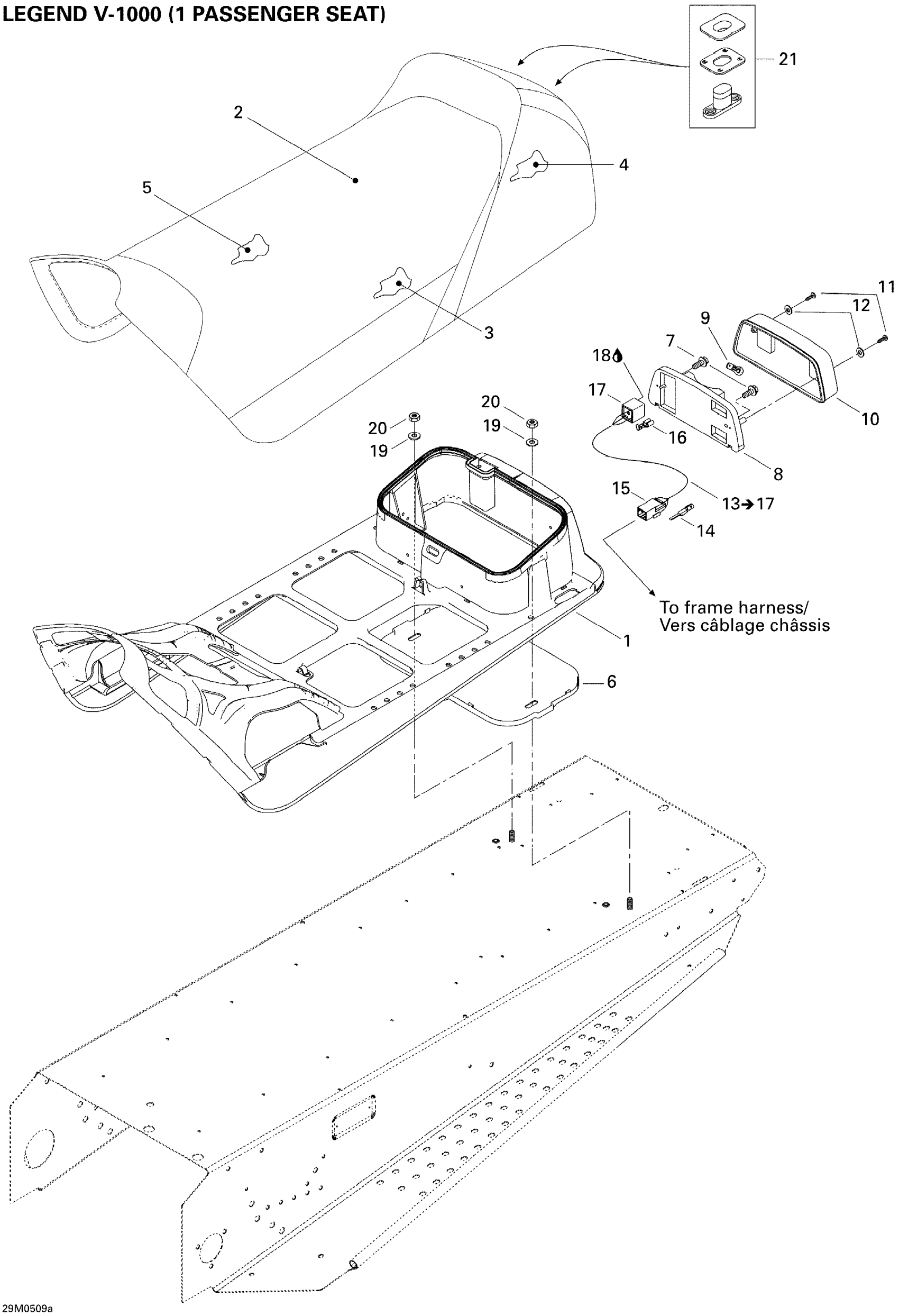

Ski-Doo Legend V-1000, 2005 Seat Diagram

#

Description
Price

1

Seat Base

510003983

Unavailable

2

Seat Cover | Sport / SE (B-160)

510004151

Unavailable

2

Seat Cover | SE (M-549)

510004264

Unavailable

3

SEAT FOAM - Call your local BRP dealership

510003944

Unavailable

4

Rear Seat Foam

510003945

Unavailable

5

Seat Foam

510004255

Unavailable

6

UNDER CHEST - Call your local BRP dealership

572107601

Unavailable

7

Hex. Screw #10 X 1"

732603006

Unavailable

8

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

9

Bulb

520000758

$8.60

10

Lens

414513700

$26.09

11

Phillips Tapping Screw M3.9 X 25

209632540

$1.12

12

Washer - Call your local BRP dealership

414516400

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Male Terminal

515175232

$1.45

15

Male Housing, 3 Circuits

515175494

$14.90

16

Female Terminal

561503100

Unavailable

17

Female Terminal Housing, 3 Circuits

515175250

Unavailable

18

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

19

Flat Washer 8 mm

234082410

$1.27

20

Hex. Elastic Stop Nut M8

232581414

$0.54

21

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable
