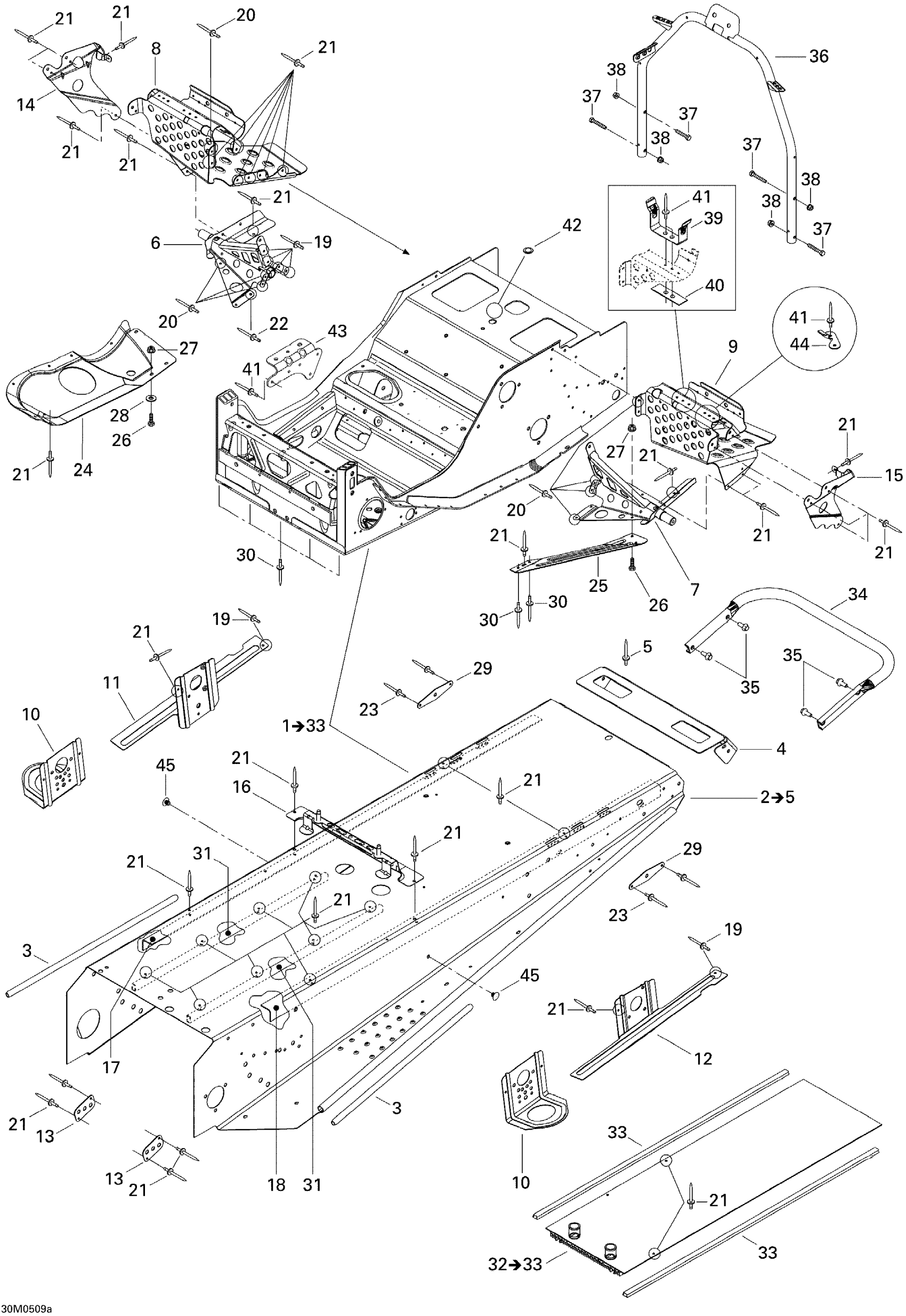

Ski-Doo Legend V-1000, 2005 Frame, 2 Passenger Seat Diagram

#

Description
Price

1

Frame | Includes 1 to 33

415128576

Unavailable

2

Forming Frame | Includes 2 to 5

415128615

Unavailable

3

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

4

Rear Cap

518322734

Unavailable

5

Pop Rivet 3/16"

390402200

$0.26

6

RH Footrest Support

518320506

Unavailable

7

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

$104.58

8

RH Footrest

518323563

Unavailable

9

LH FOOTREST - Call your local BRP dealership

518323564

Unavailable

10

Front Bracket

518321495

Unavailable

11

RH Rear Bracket

518323051

Unavailable

12

LH Rear Bracket

518323055

Unavailable

13

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

$7.08

14

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321305

$12.65

15

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321307

$12.65

16

FUEL TANK BRACKET - Call your local BRP dealership

518321510

$17.66

17

RH Frame Reinforcement

518323190

Unavailable

18

LH Frame Reinforcement

518323191

Unavailable

19

Avex Rivet

390909200

Unavailable

20

Avex Rivet

390909100

$0.29

21

Pop Rivet 3/16"

390402200

$0.26

22

Pop Rivet 3/16"

390402300

Unavailable

23

Pop Rivet 3/16"

390402400

Unavailable

24

RH BOTTOM PAN PLATE - Call your local BRP dealership

518322636

$25.35

25

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

$11.06

26

Hex. Screw M5 X 20

207152044

$0.88

27

Hex. Flange Elastic Nut M5

233251414

Unavailable

28

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

29

Rear Reinforcement

518316767

Unavailable

30

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

31

Frame Protector

518321543

Unavailable

32

Rear Radiator | Includes 15 - 16. Grand Touring 500.

518322905

Unavailable

33

Radiator Protector | Grand Touring 500.

518321656

Unavailable

34

Rear Bumper | Includes 32 to 33

517272510

Unavailable

35

Hex. Flange Screw M8 X 20

207682044

Unavailable

36

Handle Support

518322755

Unavailable

37

Hex. Flange Screw M6 X 35

207663544

$0.74

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

39

Belt Guard Bracket

518202100

$16.12

40

REINFORCEMENT - Call your local BRP dealership

518207500

$6.31

41

Pop Rivet 3/16"

390402200

$0.26

42

CAP - Call your local BRP dealership

414859400

$2.78

43

Muffler Support

518322635

Unavailable

44

TOOL KIT BRACKET - Call your local BRP dealership

518322031

$3.82

45

Panel Fastener

518321954

Unavailable
