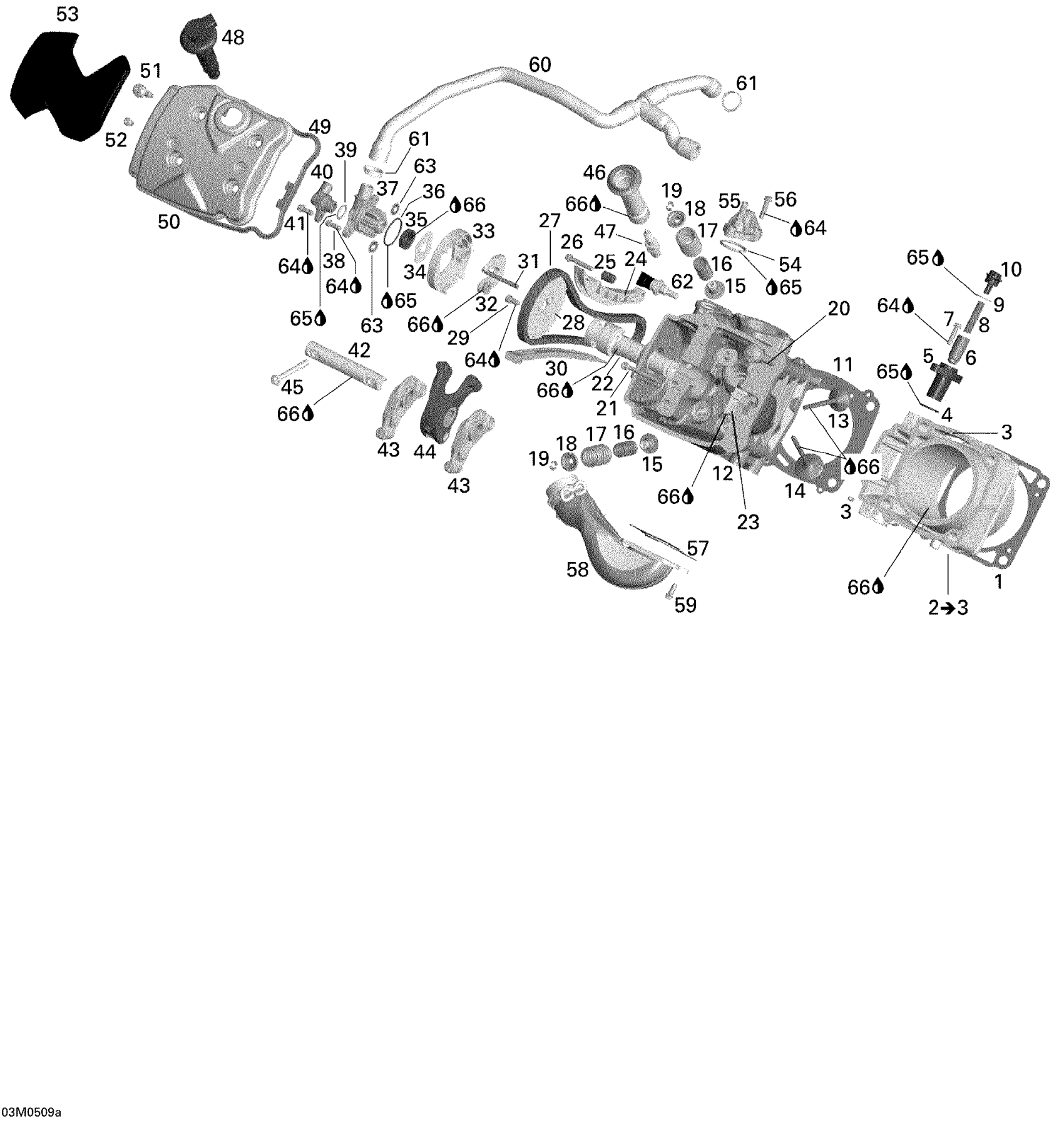

Ski-Doo Legend V-1000, 2005 Cylinder and Cylinder Head - Front Side Diagram

#

Description
Price

1

GASKET - Call your local BRP dealership

420630080

Unavailable

2

Cylinder Ass'y | Includes 2 To 3

420923947

Unavailable

3

Drive Pin 5 X 10

420929650

$1.34

4

O-Ring

420430373

$2.63

5

Chain Tensioner Housing

420236510

$11.09

6

Chain Tensioner Plunger

420236521

$14.48

7

Torx Flange Screw M6 X 25

420440234

$3.00

8

Spring

420238120

$7.23

9

O-Ring

420250890

$2.50

10

Plug Screw

420641150

$7.23

11

CYLINDER HEAD GASKET - Call your local BRP dealership

420950660

Unavailable

12

CYLINDER HEAD ASS?Y - Call your local BRP dealership

420613475

Unavailable

13

Exhaust Valve 31 mm

420254027

$73.42

14

Intake Valve 38MM

420253163

$33.77

15

Valve Steam Seal

420630202

$6.02

16

Valve Spring Inside

420838280

$10.58

17

Valve Spring

420238180

$12.97

18

Valve Spring Retainer

420254283

$7.05

19

Valve Cotter

420253645

$6.11

20

TORX SCREW M11 X 215 - Call your local BRP dealership

420641020

Unavailable

21

Torx Flange Screw M6 X 105

420440612

$6.11

22

CAMSHAFT FRONT - Call your local BRP dealership

420837575

Unavailable

23

Camshaft Guide

420851694

$26.62

24

Chain Tension Guide

420236541

$12.97

25

DISTANCE SLEEVE - Call your local BRP dealership

420247100

Unavailable

26

Torx Flange Screw M6 X 35

420440274

$0.83

27

Camshaft Chain

420297957

$97.66

28

Timing Gear, 38 Teeth

420254309

$57.82

29

Allen Screw M6 X 12

420840032

$3.61

30

Chain Guide

420236501

$11.48

31

Deko Shaft

420220790

Unavailable

32

Centrifugal Weight Ass’Y

420231064

Unavailable

33

Cover

420660037

$19.47

34

Thrust Washer

420627494

$6.11

35

V-Ring 20S FPM Blow By Valve

420630125

$9.37

36

O-Ring

420950870

$4.41

37

CAMSHAFT COVER - Call your local BRP dealership

420610272

Unavailable

38

Torx Flange Screw M6 X 16

420440162

$3.11

39

O-Ring

420430220

$8.03

40

Connecting Cover

420660275

Unavailable

41

Torx Flange Screw M6 X 16

420440162

$3.11

42

ROCKER ARM SHAFT ASS'Y - Call your local BRP dealership

420854599

Unavailable

43

Rocker Arm, Exhaust

420254329

$112.42

44

Rocker Arm, Inner

420254316

$148.17

45

Torx Screw M8 X 72

420641080

$4.39

46

Spark Plug Pipe

420851754

$22.72

47

Spark Plug, NGK DCP-R8E

715900637

$5.66

48

Ignition Coil Kit This part replaces 420664020.

296000307

$86.42

49

Sealing Ring

420630071

$14.92

50

Valve Cover

420610185

Unavailable

51

Hex Screw M6 X 30

420440568

$7.10

52

TORX SCREW M6 X 8 - Call your local BRP dealership

420641488

Unavailable

53

Valve Cover

420660201

Unavailable

54

O-Ring

420950890

$4.28

55

Connecting Cover

420811700

Unavailable

56

Torx Flange Screw M6 X 25

420440234

$3.00

57

GASKET - Call your local BRP dealership

420950680

Unavailable

58

Exhaust Manifold Ass'y

420973781

Unavailable

59

Torx Flange Screw M6 X 16

420440162

$3.11

60

AIR VENT LINE ASS'Y - Call your local BRP dealership

420660713

Unavailable

61

CLAMP - Call your local BRP dealership

420853153

Unavailable

62

Temperature Sensor

278002895

$31.82

63

Seal Washer

420230415

$1.77

64

Loctite 243, 10 ml

293800060

$20.77

65

Grease, Super Lube

293550030

$24.67

66

Synth Oil 4T 12x1

293600054

Unavailable
