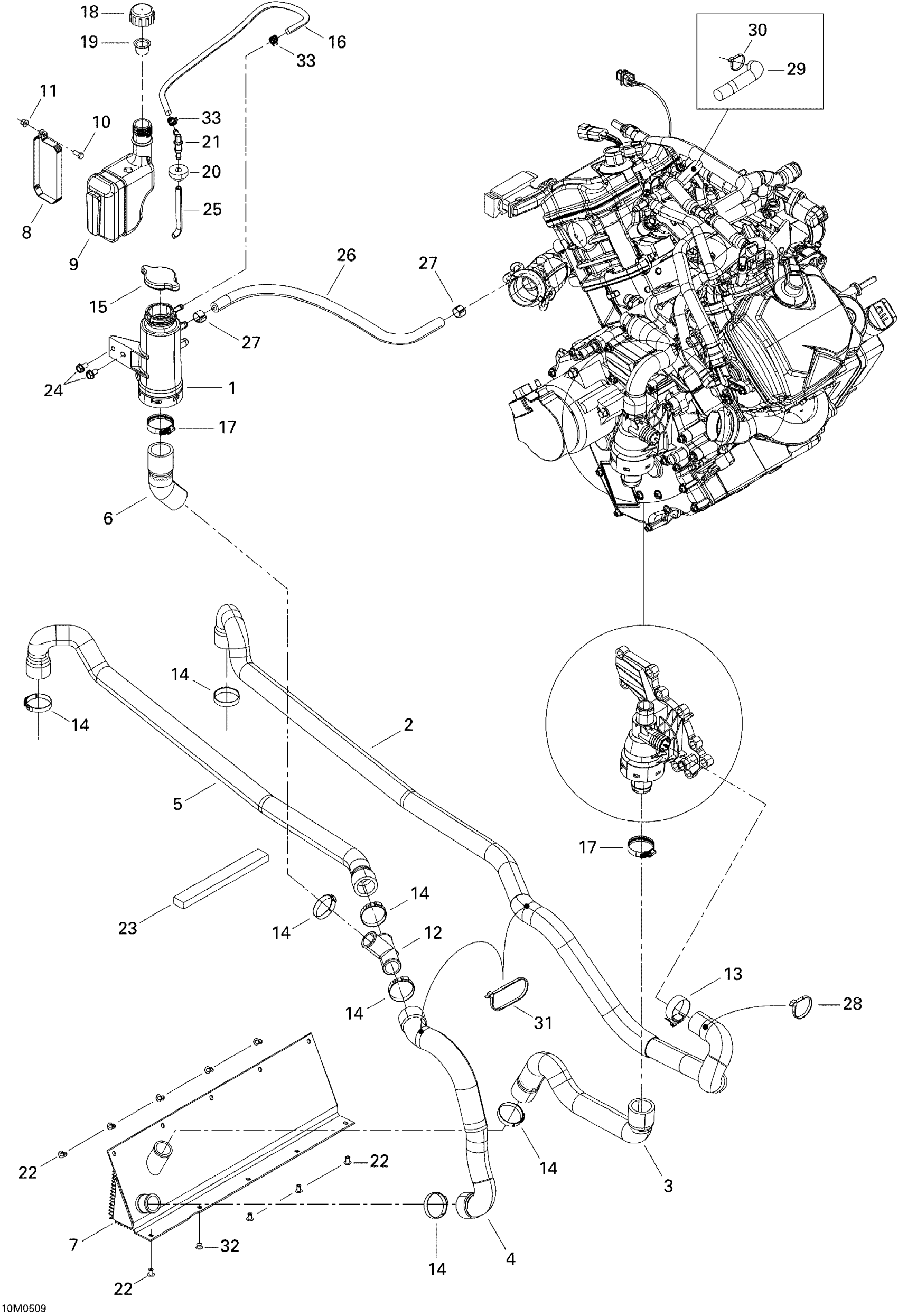

Ski-Doo Legend V-1000, 2005 Cooling System Diagram

#

Description
Price

1

FILLER NECK ASS'Y - Call your local BRP dealership

509000176

Unavailable

2

OUTLET HOSE - Call your local BRP dealership

509000103

Unavailable

3

INLET HOSE - Call your local BRP dealership

509000104

Unavailable

4

Front Hose Radiator

509000193

Unavailable

5

REAR HOSE RADIATOR - Call your local BRP dealership

509000105

Unavailable

6

Tank Hose

509000195

Unavailable

7

Front Radiator

509000146

Unavailable

8

COOLANT TANK SUPPORT - Call your local BRP dealership

509000191

Unavailable

9

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

10

Hex. Screw M5 X 12

207151244

Unavailable

11

Hex. Flange Elastic Nut M5

233251414

Unavailable

12

T-Fitting

509000219

Unavailable

13

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

14

Oetiker Gear Clamp 36.1MM

509000045

Unavailable

15

Radiator Pressure Cap

509000180

Unavailable

16

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

17

Tridon Gear Clamp

293650045

Unavailable

18

TANK CAP - Call your local BRP dealership

709200009

Unavailable

19

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

20

Grommet

709200285

$8.38

21

Elbow Male Connector

414580600

$3.50

22

Pop Rivet 3/16"

390402200

$0.26

23

Neoprene Seal (1PAC=3M)

219704364

$22.72

24

Hex. Flange Screw M6 X 12

210261250

$1.56

25

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

26

RETURN HOSE - Call your local BRP dealership

509000304

Unavailable

27

Oetiker Clamp

293650125

$2.69

28

Tie-Rap 180 mm

414115200

$0.09

29

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

30

Tie Wrap 142 mm

293750002

Unavailable

31

Tie Wrap 368 mm

293750008

$0.85

32

Pop Rivet 3/16"

390402400

Unavailable

33

Spring Clamp

414554800

$0.83
