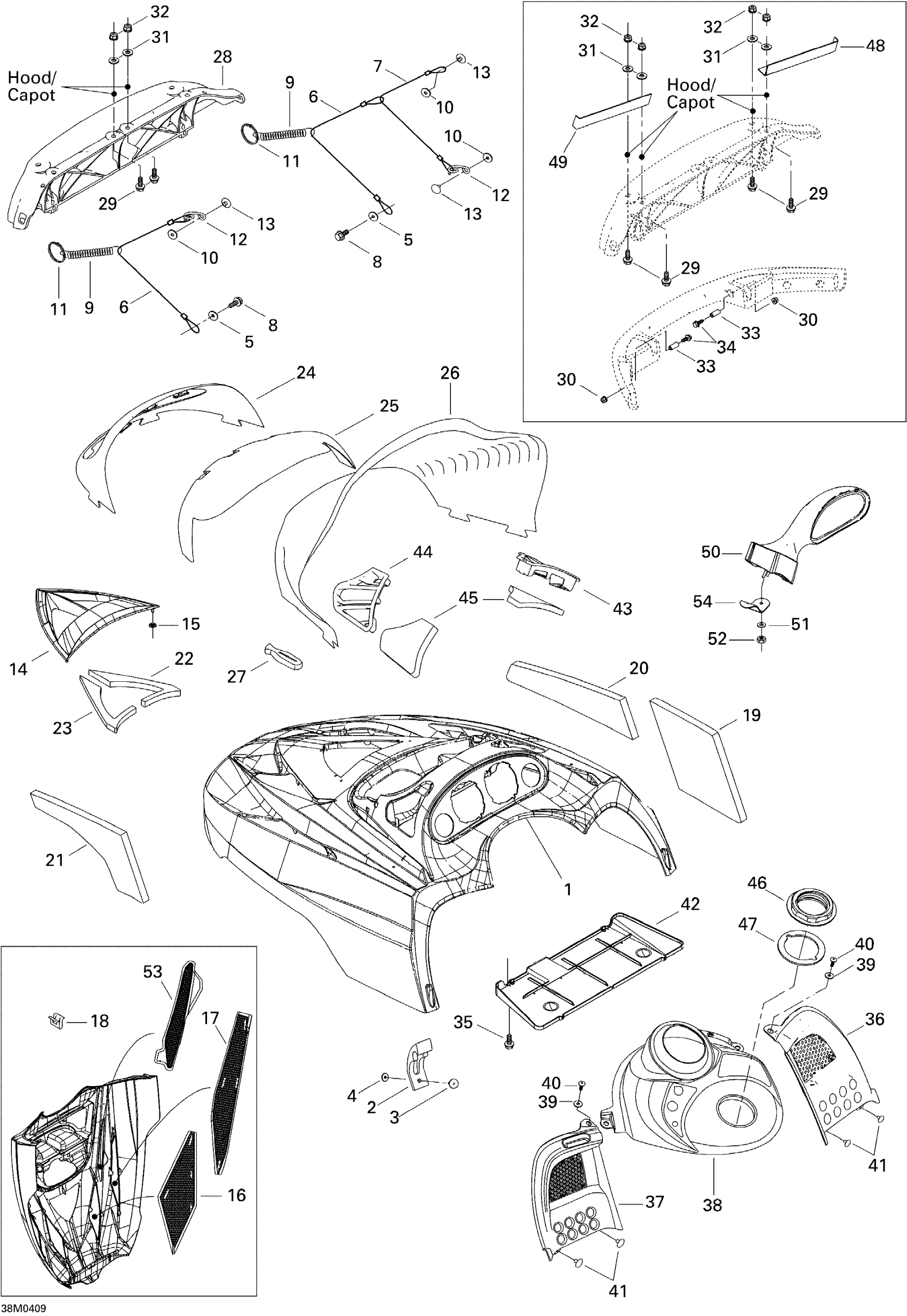

Ski-Doo Legend V-1000, 2004 Cab, Console Diagram

#

Description
Price

1

Hood , Autumn Red | SE Models / Autumn Red

517303147

Unavailable

Hood , Autumn Red | SPORT Models / Autumn Red

517303148

Unavailable

Hood, Deep Black | SE & SE GT

517303150

Unavailable

Hood, Deep Black | Sport & Sport GT

517303151

Unavailable

2

Hood Latch

570027100

Unavailable

3

Pop Rivet 3/16”

293150108

$1.23

4

Washer

517124300

Unavailable

5

Washer | DS 650 X

391301600

Unavailable

6

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

7

Retainer Cable

517303135

Unavailable

8

Hex. Tapping Screw

365901000

Unavailable

9

Spring

415043300

Unavailable

10

Washer

517124300

Unavailable

11

RING - Call your local BRP dealership

415058300

Unavailable

12

Bracket

517262800

Unavailable

13

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

14

Center Grille

517303016

Unavailable

15

Push Nut

250100034

$1.11

16

RH Intermediate Grille

517302994

Unavailable

LH Intermediate Grille

517302995

Unavailable

17

RH Side Grille

517302996

Unavailable

LH Side Grille

517302997

Unavailable

18

Edge Clip

517302785

Unavailable

19

RH Side Foam

517302749

Unavailable

20

RH Rear Side Foam

517302941

Unavailable

21

LH Side Foam

517302750

Unavailable

22

RH CENTER FOAM - Call your local BRP dealership

517302942

Unavailable

23

LH Center Foam

517302943

Unavailable

24

Headlamp Moulding, Autumn Red | AUTUMN RED (M-549)

517303052

Unavailable

HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership

517302158

Unavailable

25

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

26

HIGH WINDSHIELD - Call your local BRP dealership | SE & Sport

517302981

Unavailable

High Windshield | SE GT & Sport GT This part replaces 517302982.

517302560

Unavailable

27

Windshield Latch

570023800

Unavailable

28

Hinge

517302631

Unavailable

29

Hex. Flange Screw M6 X 20

207662084

Unavailable

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

31

Flat Washer

224061201

Unavailable

32

Elastic Stop Nut M6

232561414

Unavailable

33

BUSHING - Call your local BRP dealership

517302179

Unavailable

34

Hex. Flange Screw M6 X 35

207663544

$0.74

35

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable

36

RH Console

517302709

Unavailable

37

LH CONSOLE - Call your local BRP dealership

517302006

Unavailable

38

Center Console | SE & SE GT

517302702

Unavailable

Center Console | Sport & Sport GT

517302757

Unavailable

39

Washer | DS 650 X

391301600

Unavailable

40

Forming Screw M5 x 16

250000676

$0.83

41

Pop Rivet 3/16"

293150103

Unavailable

42

Air Intake Plate

517302628

Unavailable

43

RH AIR INTAKE GRILL - Call your local BRP dealership

517302024

Unavailable

44

LH AIR INTAKE GRILL - Call your local BRP dealership

517302025

Unavailable

45

Air Intake Foam

517302151

Unavailable

46

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

47

Gasket

293250029

Unavailable

48

RH Corner Support

517302949

Unavailable

49

LH Corner Support

517302950

Unavailable

50

RH MIRROR - Call your local BRP dealership

517302764

Unavailable

LH Mirror

517302766

Unavailable

51

Washer

517124300

Unavailable

52

Elastic Stop Nut M4

232541414

$0.48

53

RH Side Grille

517302998

Unavailable

54

Holder Plate

517303057

Unavailable
