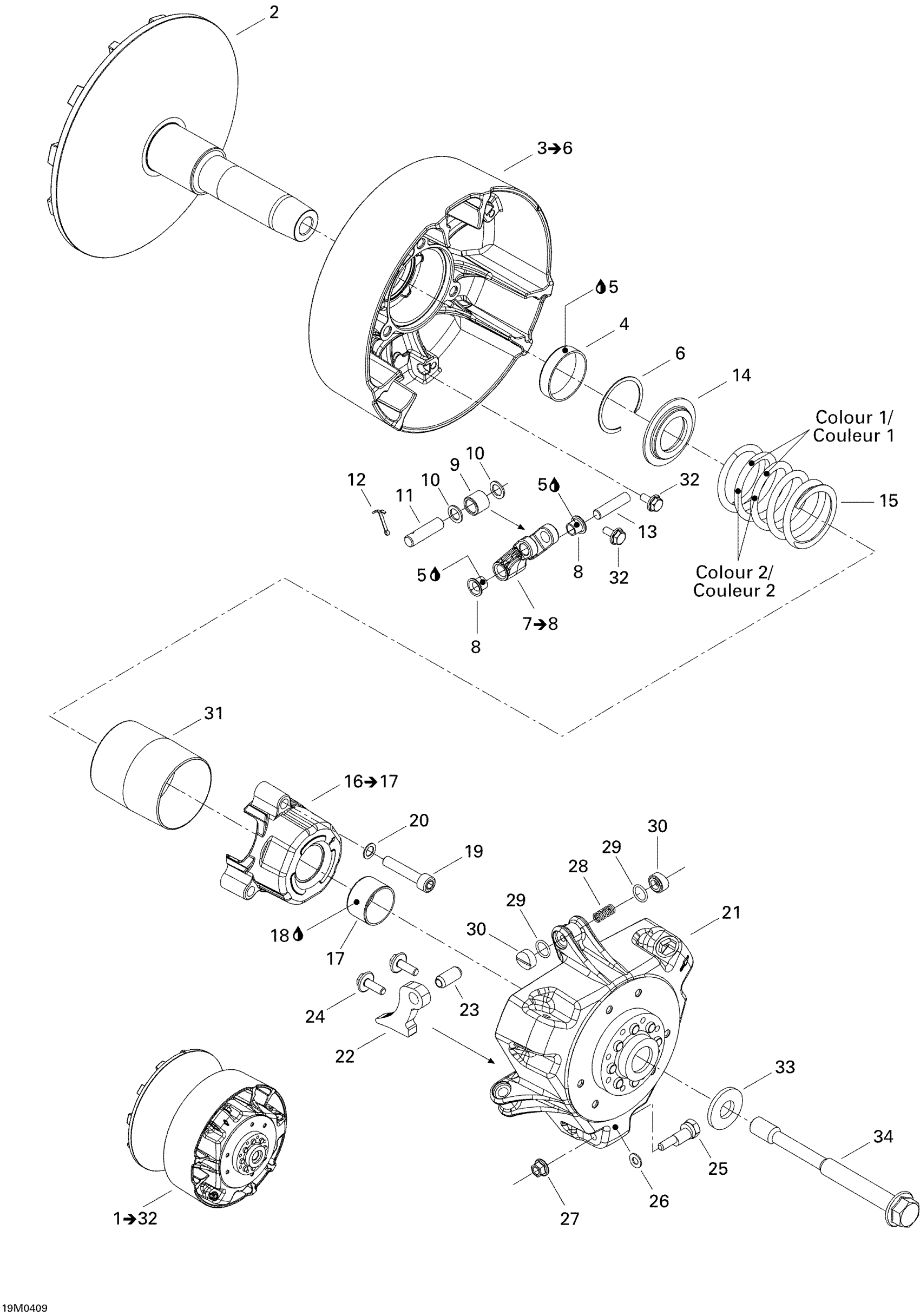

Ski-Doo Legend V-1000, 2004 Drive Pulley Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange

417222593

Unavailable

3

SLINDING FLANGE ASSY - Call your local BRP dealership

417222629

Unavailable

4

Bushing

417222758

$20.74

5

Loctite 609, 10 ml

413703100

$24.58

6

Circlip

293370037

$3.02

7

LEVER ASS'Y - Call your local BRP dealership

417222672

Unavailable

8

Bushing

417222633

Unavailable

9

Roller

417222947

$19.97

10

Stopper Washer

417004302

$15.99

11

Pin

417222594

$14.11

12

Cotter Pin

250400060

$1.60

13

Lever Axle

417223164

$4.25

14

Spring Seat

417222312

$8.28

15

CLUTCH SPRING, RED/YELLOW - Call your local BRP dealership

414817500

$30.74

16

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

17

Bushing

417009204

$16.12

18

Loctite 609, 10 ml

413703100

$24.58

19

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

20

Lock Washer 8 mm

250200009

Unavailable

21

Governor Cup Assy

417222530

Unavailable

22

RAMPE 607 - Call your local BRP dealership

417222569

Unavailable

23

Spring Pin M10 X 22

250400050

$2.38

24

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

25

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

26

Washer

417005600

$3.86

27

Hex. Flange Nut M6

233061414

Unavailable

28

Spring

417005700

Unavailable

29

O-Ring

732401030

$0.95

30

Slider Shoe This part replaces 420460045.

417223021

$6.09

31

Guard

417009205

$16.89

32

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.86

33

Spring Washer 14 mm

250200006

Unavailable

34

DRIVE PULLEY BOLT - Call your local BRP dealership

417300242

Unavailable
