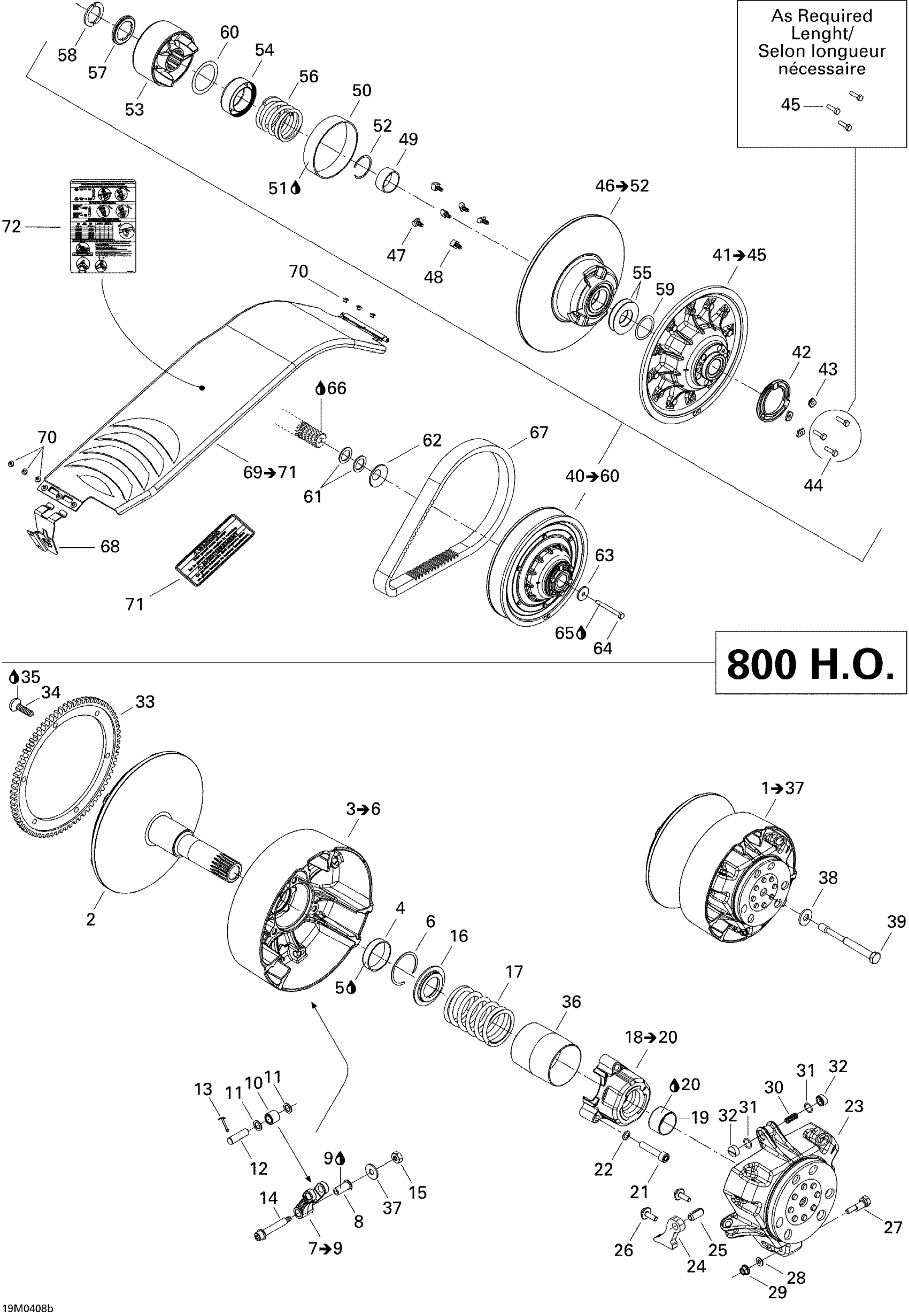

Ski-Doo Legend 800 SDI, 2004 Pulley System (800) Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Flasque Fixe As*Flange-Fixe Ass. This part replaces 417222904.

417222970

Unavailable

3

Sliding Flange Ass’Y | INCLUDES 3 TO 6

417222668

Unavailable

4

Bushing

417222758

$20.74

5

Loctite, Black Max, 3 ml

413408300

$24.58

6

Circlip

293370037

$3.02

7

Lever | Includes 10f to 10g

417222671

$32.28

8

Bushing

417222633

Unavailable

9

Loctite 609, 10 ml

413703100

$24.58

10

Roller

417222947

$19.97

11

Stopper Washer

417004302

$15.99

12

Pin

417004308

Unavailable

13

Cotter Pin

250400060

$1.60

14

SCREW ASS'Y - Call your local BRP dealership

417222028

Unavailable

15

Elastic Stop Nut M6

232561414

Unavailable

16

Spring Seat

417222312

$8.28

17

Spring, Violet/yellow This part replaces 415128608.

415015300

$14.75

18

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

19

Bushing

417009204

$16.12

20

Loctite 609, 10 ml

413703100

$24.58

21

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

22

Lock Washer 8 mm

250200009

Unavailable

23

Governor Cup

417222213

Unavailable

24

Ramp 414

417222546

$32.28

25

Spring Pin M10 X 22

250400050

$2.38

26

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

27

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

28

Washer

417005600

$3.86

29

Hex. Flange Nut M6

233061414

Unavailable

30

Spring

417005700

Unavailable

31

O-Ring

732401030

$0.95

32

Slider Shoe This part replaces 420460045.

417223021

$6.09

33

Ring Gear

417222669

Unavailable

34

Hex. Screw M8 X 16

236281684

Unavailable

35

Loctite 271, 10 ml

293800005

Unavailable

36

Guard

417009205

$16.89

37

Flat Washer 6 mm

234061410

Unavailable

38

Spring Washer 14 mm

250200006

Unavailable

39

Drive Pulley Bolt

417120000

$63.82

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Fixed Flange Ass'y | Includes 40 to 44

417126603

Unavailable

42

Adjustment Ring

415005800

Unavailable

43

Adjustment Shim

415005900

Unavailable

44

Hex. Screw M6 X 25

207162544

Unavailable

45

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

46

SLIDING FLANGE ASS'Y - Call your local BRP dealership | Includes 39 to 46

417126909

Unavailable

47

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

Unavailable

48

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

BUSHING - Call your local BRP dealership

417126902

Unavailable

51

Loctite 609, 10 ml

413703100

$24.58

52

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

53

Cam Ass'y

417126385

Unavailable

54

GUARD - Call your local BRP dealership

417126381

Unavailable

55

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

56

SPRING, BLACK - Call your local BRP dealership

417126687

Unavailable

57

SPACER - Call your local BRP dealership

417126733

Unavailable

58

HALF KEY - Call your local BRP dealership

417126734

Unavailable

59

SHIM - Call your local BRP dealership

504112300

Unavailable

60

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

61

Spacer

417300265

$2.12

62

PROTECTOR - Call your local BRP dealership

417300238

Unavailable

63

Strength Washer

517302322

$11.09

64

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

65

Loctite 243, 10 ml

293800060

$20.77

66

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

67

Drive Belt

417300551

Unavailable

68

Bracket

417300001

Unavailable

69

Belt Guard Ass’Y | Includes Items 2 to 4

417300173

Unavailable

70

Pop Rivet 3/16"

390402200

$0.26

71

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

72

Decal, Suspension Adjustment

516001639

Unavailable

Decal, Suspension Adjustment Decal

516001640

Unavailable
