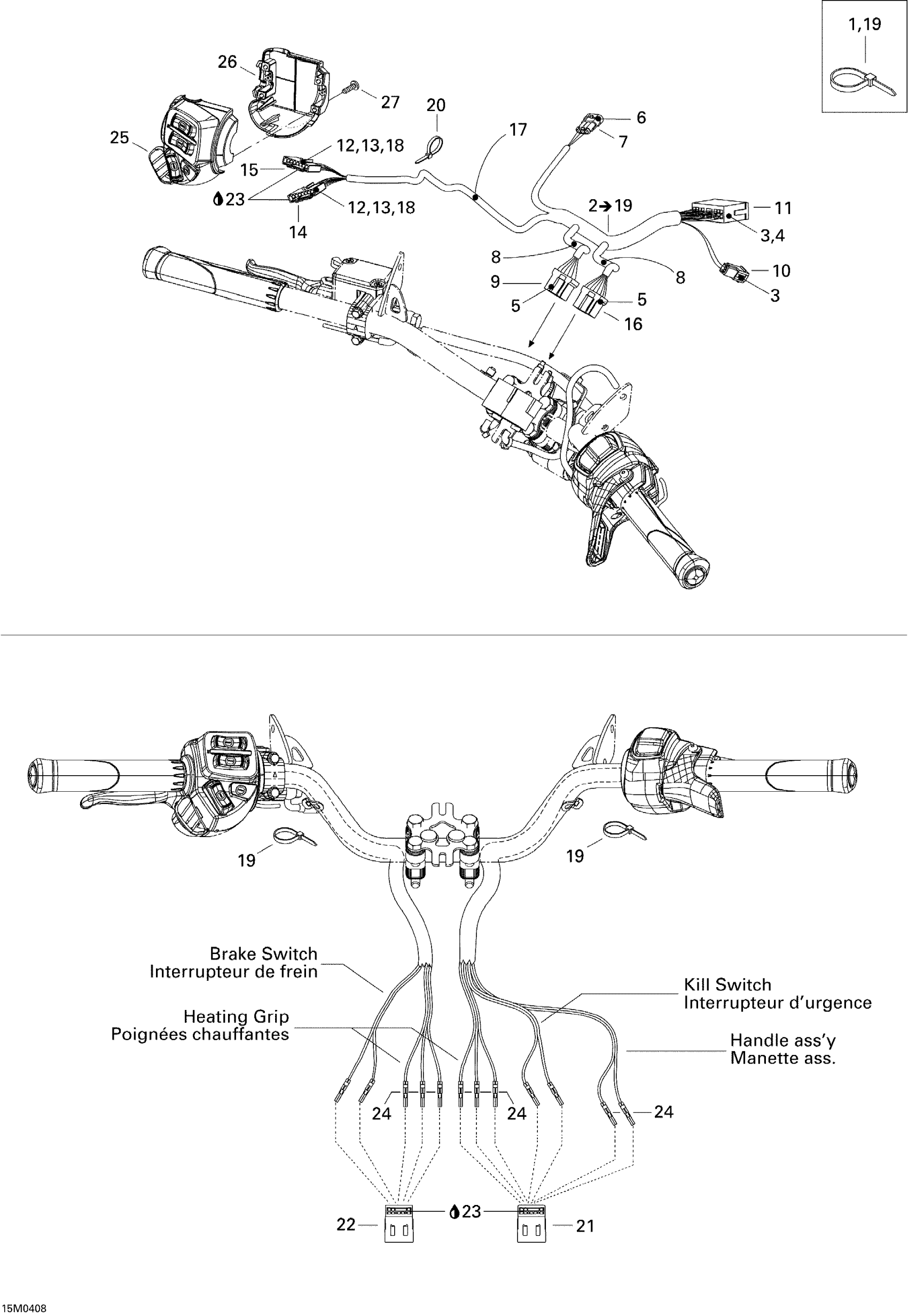

Ski-Doo Legend 600 HO SDI, 2004 Steering Harness Diagram

#

Description
Price

1

Tie Wrap 368 mm

293750008

$0.97

2

Steering Harness | Sport Models / Includes 2 to 19

515176067

Unavailable

Steering Harness | SE Models / Includes 2 to 19

515176068

Unavailable

3

Male Terminal

515175232

$1.45

4

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

5

Female Terminal

515175231

$4.00

6

Male Terminal | Europe Models

409012900

$3.12

7

Housing

710000568

$10.51

8

Tubing 10 MM 1000MM Long

219704407

$2.52

9

Female Terminal Housing, 6 Circuits

515175543

$8.31

10

Male Terminal Housing, 2 Circuits

515175654

$7.25

11

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

12

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

13

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

Unavailable

14

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

Unavailable

15

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

16

Female Terminal Housing, 8 Circuits

515175819

$7.24

17

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

18

Female Terminal

515175941

$2.40

19

Tie-Rap 180 mm

414115200

$0.10

20

Tie Wrap 142 mm

293750002

$1.01

21

Male Terminal Housing, 8 Circuits

515175817

$8.31

22

Male Terminal Housing, 6 Circuits

515175662

$8.31

23

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

24

Male Terminal

515175232

$1.45

25

LH SWITCH HOUSING - Call your local BRP dealership

515176015

Unavailable

26

Switch Housing Plate

515175926

$17.13

27

Torx Screw #8-18

250000263

$0.99
