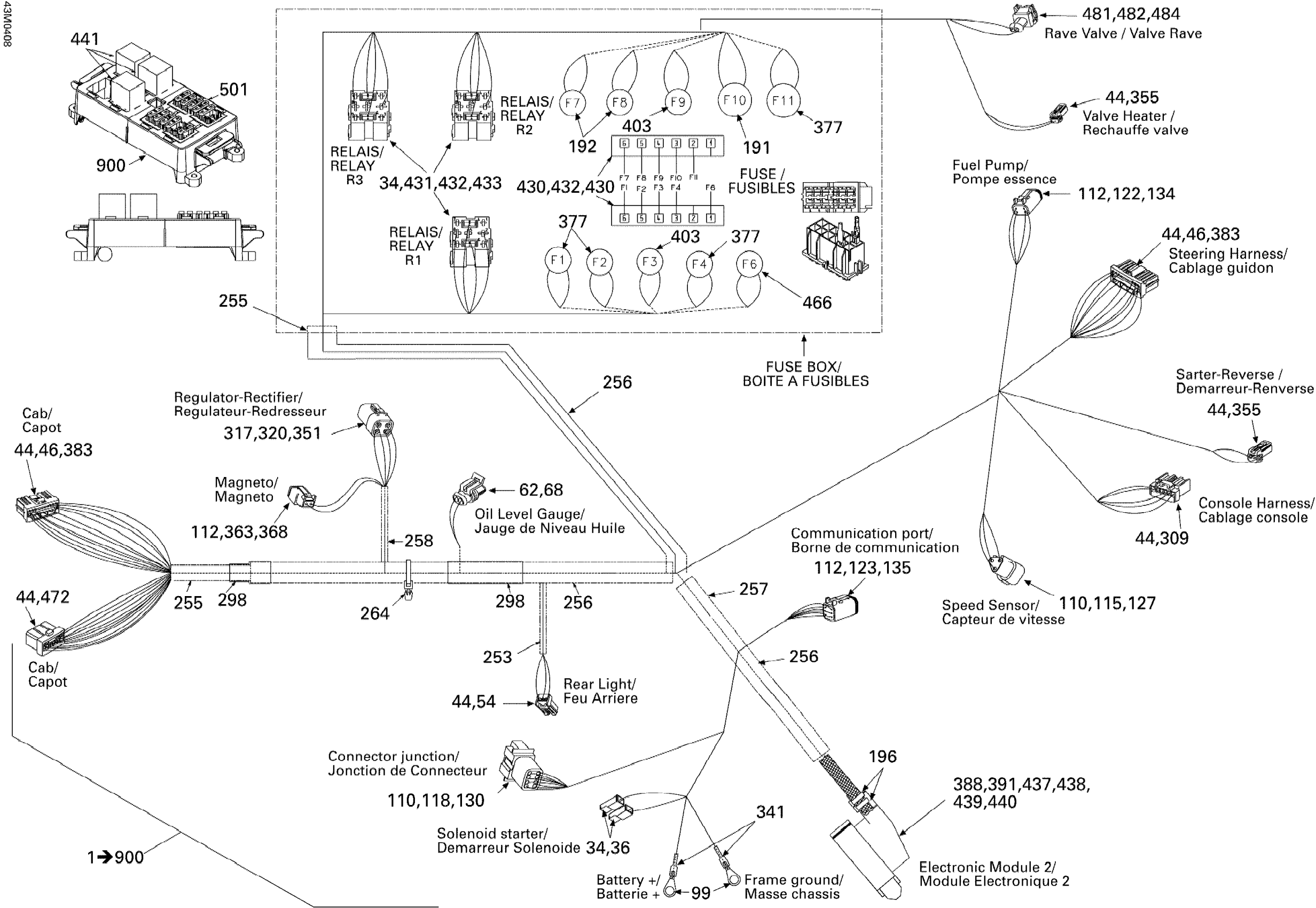

Ski-Doo Legend 600 HO SDI, 2004 Frame Harness Diagram

#

Description
Price

1

Frame Harness | Includes items 1 to 900

515176006

Unavailable

34

Female Terminal

409010100

$5.46

36

Female Terminal Housing, 1 Circuit

409010400

$7.48

44

Female Terminal

515175231

Unavailable

46

Female Terminal

515175282

$6.43

54

Female Housing, 3 Circuits

515175495

$15.35

62

Female Terminal

278001014

Unavailable

69

Female Housing, 2 Circuits

409209500

$13.48

99

Open Barrel

278000992

$1.79

110

Male Terminal

278000631

$4.12

112

Female Terminal

278000632

Unavailable

115

Male Housing

278002378

Unavailable

118

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001742

Unavailable

122

Male Connector, 4 Circuits | CE

278000739

$14.92

123

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

127

Male Lock, 3 Circuits

409207600

$3.02

130

LOCK MALE, 8 CIRCUITS - Call your local BRP dealership

515175276

Unavailable

134

Male Lock, 4 Circuits | CE

278000738

$2.91

135

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

138

Sealing Cap

293000052

Unavailable

191

Fuse, 30 Amperes

410917200

$3.22

192

Fuse, 20 Amperes

409003900

$3.22

196

Tie Wrap 142 mm

293750002

Unavailable

206

Female Terminal

409004200

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

255

Was 409901800 Tubing (13 mm)

219704400

Unavailable

256

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

257

Was 409901600 Tubing 19mm

219704398

Unavailable

258

Tubing 10 MM 1000MM Long

219704407

Unavailable

264

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

$0.91

298

Tape

293740005

Unavailable

309

Female Terminal Housing, 6 Circuits

515175543

$8.57

317

Female Terminal Housing, 4 Circuits

278001473

Unavailable

319

Male Terminal

515175568

$7.48

320

Female Terminal

515175567

$6.03

341

Not Available As Spare Part - Friction Washer

Unavailable

351

Female Lock, 4 Circuits

278001474

Unavailable

355

Female Housing, 2 Circuits

515175658

Unavailable

363

Female Terminal Housing, 2 Circuits

515175670

Unavailable

368

Female Lock, 2 Circuits

515175675

Unavailable

377

Fuse, 5 Amperes | CE

278000344

$3.22

383

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

Unavailable

387

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

391

Not Available As Spare Part - Friction Washer

Unavailable

403

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

430

FUSE HOLDER - Call your local BRP dealership

515175857

Unavailable

431

RELAY HOLDER - Call your local BRP dealership

515175856

Unavailable

432

FEMALE TERMINAL - Call your local BRP dealership

515175855

Unavailable

433

FEMALE TERMINAL - Call your local BRP dealership

515175854

Unavailable

436

Female Terminal

515175881

Unavailable

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$7.48

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

$5.31

441

Relais *Relay This part replaces 410113604.

515177672

Unavailable

466

Fuse, 0.5 Ampere

415128525

Unavailable

472

Female Terminal Housing

415128527

Unavailable

481

Female Terminal Housing, 2 Circuits

415128500

$6.31

482

Female Terminal

278000998

$3.48

484

Seal

415128501

Unavailable

501

Fuse Box Base

515175739

Unavailable

900

Not Available As Spare Part - Friction Washer

Unavailable
