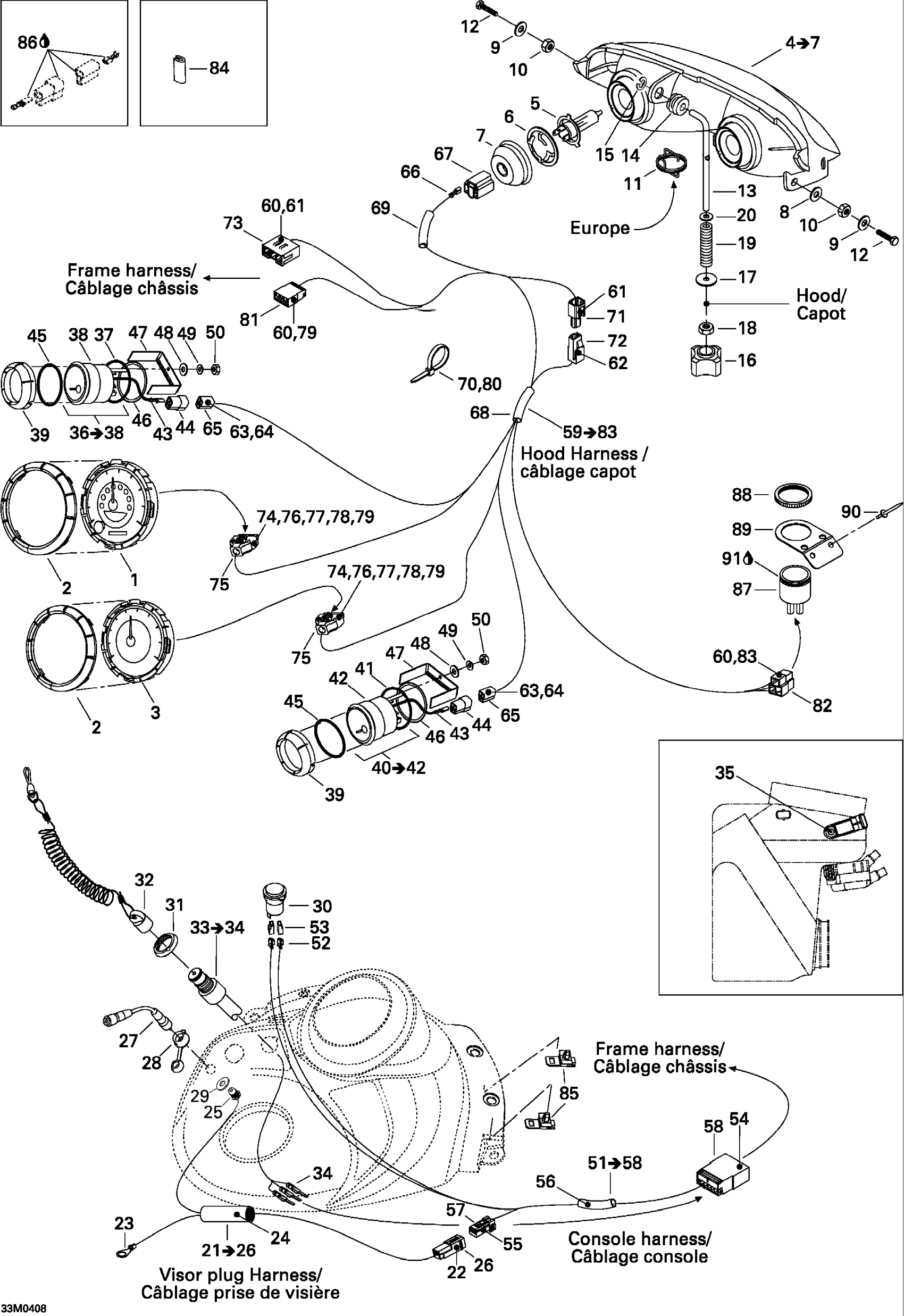

Ski-Doo Legend 600 HO SDI, 2004 Cab Harness Diagram
#
1
Speedometer
515176012
Unavailable
2
Gauge Ring This part replaces 515176242.
515179005
Unavailable
3
Tachometer
515176072
Unavailable
4
Halogen Headlamp Ass'y | Includes 4 to 7
515176311
Unavailable
5
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
6
BULB HOLDER - Call your local BRP dealership
515176385
Unavailable
7
COVER - Call your local BRP dealership
515175911
Unavailable
8
Flat Washer 10 mm
234001410
Unavailable
9
Flat Washer M5
234051410
Unavailable
10
NUT M5 - Call your local BRP dealership
250100018
Unavailable
11
SPRING - Call your local BRP dealership | Europe
515175324
Unavailable
12
Hex. Screw M5 X 35
207053544
Unavailable
13
ADJUSTER ROD - Call your local BRP dealership
517295800
Unavailable
14
Grommet - Call your local BRP dealership
415100800
Unavailable
15
Push Nut
732610072
Unavailable
16
Handle - Call your local BRP dealership
515175548
Unavailable
17
Washer
224060251
Unavailable
18
Elastic Stop Nut M6
232561414
Unavailable
19
SPRING - Call your local BRP dealership
415100600
Unavailable
20
Flat Washer 6 mm
234061410
Unavailable
23
OPEN BARREL - Call your local BRP dealership
515175172
Unavailable
24
Vinyl Tubing, Low Temp 3000Mm Long
219704424
Unavailable
25
Visor Plug
415096100
Unavailable
27
EXTENSION - Call your local BRP dealership
515175971
Unavailable
30
Outlet Power Kit, 12 Volts
861507200
Unavailable
32
DESS
515178284
Unavailable
33
DESS SWITCH - Call your local BRP dealership
515175145
Unavailable
36
Temperature Gauge
515175601
Unavailable
37
O-RING - Call your local BRP dealership
414807200
Unavailable
38
Case Holder | SE Models
414806600
Unavailable
39
RING GAUGE - Call your local BRP dealership
515175711
Unavailable
40
FUEL GAUGE - Call your local BRP dealership
515175529
Unavailable
41
O-RING - Call your local BRP dealership
414807200
Unavailable
42
Case Holder | SE Models
414806600
Unavailable
43
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
45
O-RING - Call your local BRP dealership
414807200
Unavailable
46
WASHER - Call your local BRP dealership
517258600
Unavailable
47
Case Holder
415099800
Unavailable
48
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
49
Lock Washer | SE Models
414833700
Unavailable
50
NUT - Call your local BRP dealership | SE Models
414833600
Unavailable
51
Console Harness | INCLUDES ITEMS 60 TO 67
515176084
Unavailable
55
Female Terminal
515175231
Unavailable
56
GAINE LOW TEMP.VINYL - Call your local BRP dealership
515175314
Unavailable
57
Female Housing, 2 Circuits
515175658
Unavailable
58
Male Terminal Housing, 6 Circuits
515175662
Unavailable
59
CAB WIRING HARNESS - Call your local BRP dealership | Includes 53 to 77
515175984
Unavailable
61
MALE TERMINAL - Call your local BRP dealership
515175273
Unavailable
63
Female Terminal
561503100
Unavailable
64
Female Terminal
561503100
Unavailable
65
Female Housing
409204300
Unavailable
66
FEMALE TERMINAL - Call your local BRP dealership
515175321
Unavailable
67
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
409202700
Unavailable
68
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
69
Tubing 10 MM 1000MM Long
219704407
Unavailable
71
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership
515175509
Unavailable
72
FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership
515175510
Unavailable
73
MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
515175720
Unavailable
74
Plug
515175812
Unavailable
75
Female Housing, 24 Circuits
515175801
Unavailable
76
Retainer Block
515175802
Unavailable
77
Wire Seal
515175803
Unavailable
81
Male Terminal Housing, 10 Circuits
415128526
Unavailable
82
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
515176069
Unavailable
83
Female Terminal
515176071
Unavailable
84
Was 271000110 Protection Trim
219704353
Unavailable
86
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
87
HORN - Call your local BRP dealership
515176035
Unavailable
89
PLATE - Call your local BRP dealership
515175688
Unavailable
91
Silicone Sealant 51388, 300 ml
296000309
Unavailable
