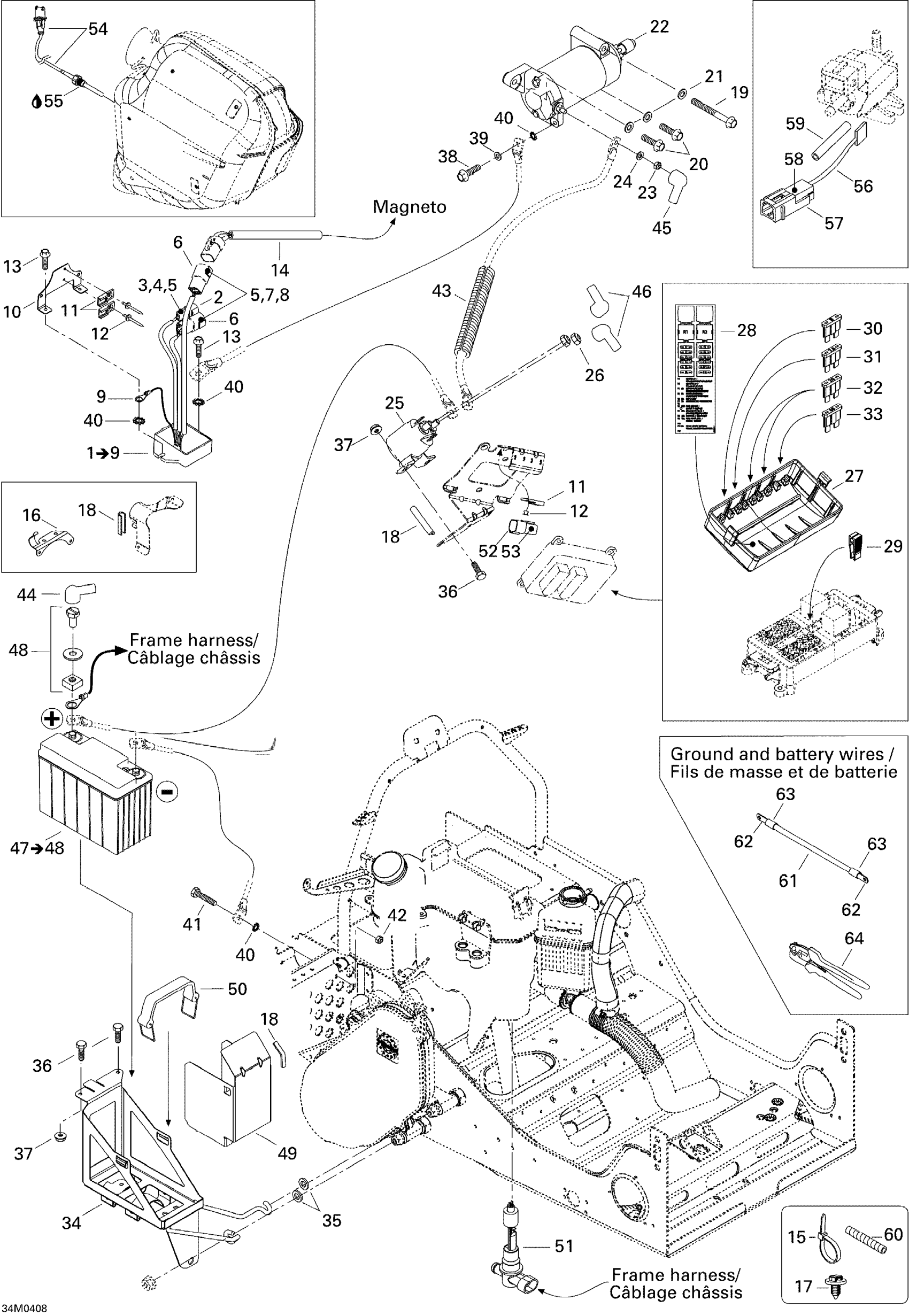

Ski-Doo Legend 600 HO SDI, 2004 Battery And Starter Diagram

#

Description
Price

1

Voltage Regulator | Includes 32 to 38

515176243

Unavailable

2

Male Housing, 2 Circuits

409206900

Unavailable

3

Male Terminal

278000631

$4.12

4

Male Lock, 2 Circuits

409207500

$3.02

5

Sealing Cap

293000052

Unavailable

6

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

7

Male Terminal

515175568

$7.48

8

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Housing Support

515175923

Unavailable

11

Clip

270000141

$8.33

12

Avdel Rivet 3/16"

293150037

$0.47

13

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

14

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

15

Tie Wrap 368 mm

293750008

$0.85

Tie-Rap 180 mm

414115200

$0.09

Tie Wrap 94 mm | 4X4

293750001

$0.83

Tie Wrap 142 mm

293750002

Unavailable

Tie-Rap 173 mm

293750009

Unavailable

16

Cable Support

515175254

Unavailable

17

Mount Dart

293730040

$0.86

18

Was 271000110 Protection Trim

219704353

Unavailable

19

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

Unavailable

20

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

Unavailable

21

Flat Washer With Teflon 8 mm

250200008

Unavailable

22

Electric Starter Ass'y

515176133

Unavailable

23

Elastic Stop Nut M6

232561414

Unavailable

24

Flat Washer 6 mm

234061410

Unavailable

25

Starter Relay

515176011

Unavailable

26

Elastic Stop Nut M6

232561414

Unavailable

27

COVER - Call your local BRP dealership

515176066

Unavailable

28

Fuse Decal

516002162

Unavailable

29

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

30

Fuse, 5 Amperes | CE

278000344

$3.22

31

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

32

Fuse, 20 Amperes

409003900

$3.22

33

Fuse, 30 Amperes

410917200

$3.22

34

Battery Support, Black

515175848

Unavailable

35

Washer

503175800

$3.26

36

Hex. Screw M5 X 14

207151444

Unavailable

37

Hex. Flange Elastic Nut M5

233251414

Unavailable

38

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

Unavailable

39

Flat Washer 6 mm

234061410

Unavailable

40

Lock Washer Serrated M6

250200041

Unavailable

41

Hex. Screw M6 X 16

207161644

Unavailable

42

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

43

Was 409901700 Tubing (9 mm)

219704399

Unavailable

44

Protection Cap

570151000

$18.43

45

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

46

Protector Cap

710000526

Unavailable

47

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

48

Battery Bolt Kit

250000282

$2.95

49

DEFLECTOR - Call your local BRP dealership

515175643

Unavailable

50

Battery Strap

515176044

Unavailable

51

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

52

Male Terminal Housing, 6 Circuits

515175668

$14.02

53

Sealing Cap

293000052

Unavailable

54

Temperature Sensor

515176132

Unavailable

55

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

56

Heater Element

515176087

Unavailable

57

Male Terminal Housing, 2 Circuits

515175654

$7.48

58

Male Terminal

515175232

$1.49

59

Tubing 6 Mm 3000Mm Long

219704425

$13.14

60

Tubing 6 Mm 3000Mm Long

219704425

$13.14

61

Ground Cable Battery, no 6, meter)

278001680

Unavailable

Cable Battery, no 6, meter)

278001690

Unavailable

62

Terminal 45°, Small Hole

278001682

Unavailable

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

Terminal 30°, 2 Holes

278001776

Unavailable

63

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

64

Crimp Plier

529035730

Unavailable
