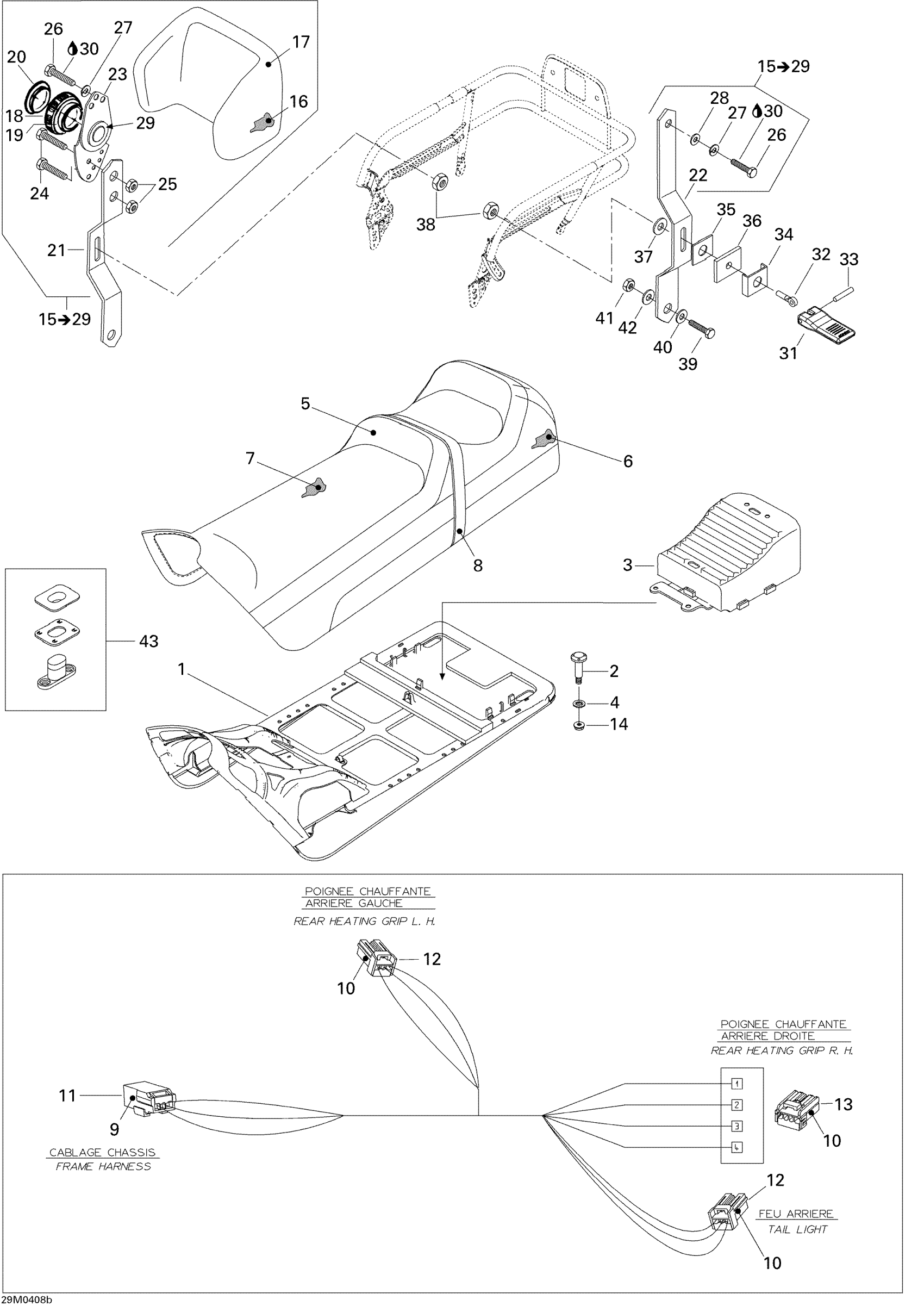

Ski-Doo Legend 600 HO SDI, 2004 Seat (2 Passengers) Diagram
#
1
Sub-Seat
510003739
Unavailable
2
«T» Bolt
732601221
Unavailable
3
Rear Trunk
510003751
Unavailable
4
Push Nut
732610072
Unavailable
5
Seat Cover, Black | Sport / SE (B-160)
510004086
Unavailable
Seat Cover, Black | Sport / SE (B-160)
510004086
Unavailable
Seat Cover, autumn Red | SE (M-549)
510004092
Unavailable
6
Seat Foam, Side
510003741
Unavailable
7
Seat Foam
510004267
Unavailable
8
Seat Belt
510003753
Unavailable
10
Female Terminal
515175231
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
15
Backrest Ass’Y | Includes 16 to 31
510004093
Unavailable
16
Backrest Foam
414821200
Unavailable
17
Backrest Cover
510004094
Unavailable
20
Cap
414821000
Unavailable
21
RH Arm
517296400
Unavailable
22
LH Arm
517296500
Unavailable
23
Recliner
414813300
Unavailable
24
Hex. Screw M8 X 25
207182544
Unavailable
25
Hex. Elastic Stop Nut M8
232581414
Unavailable
27
Lock Washer 8 mm
234181401
Unavailable
28
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
29
Cap
517250500
Unavailable
31
Lock Lever
572038200
Unavailable
32
EYE BOLT - Call your local BRP dealership
517250100
Unavailable
34
Guide
517257300
Unavailable
35
SPACER - Call your local BRP dealership
517251300
Unavailable
36
Rubber Shim
570027400
Unavailable
37
Washer
414819500
Unavailable
38
Nut
517250000
Unavailable
39
Hex. Screw M8 X 25
207182584
Unavailable
40
Stainless Steel Flat Washer 8 mm
234081670
Unavailable
41
Hex. Elastic Stop Nut M8
232581414
Unavailable
42
Washer
414819600
Unavailable
43
SEAT BUCKLE - Call your local BRP dealership
414728000
Unavailable
