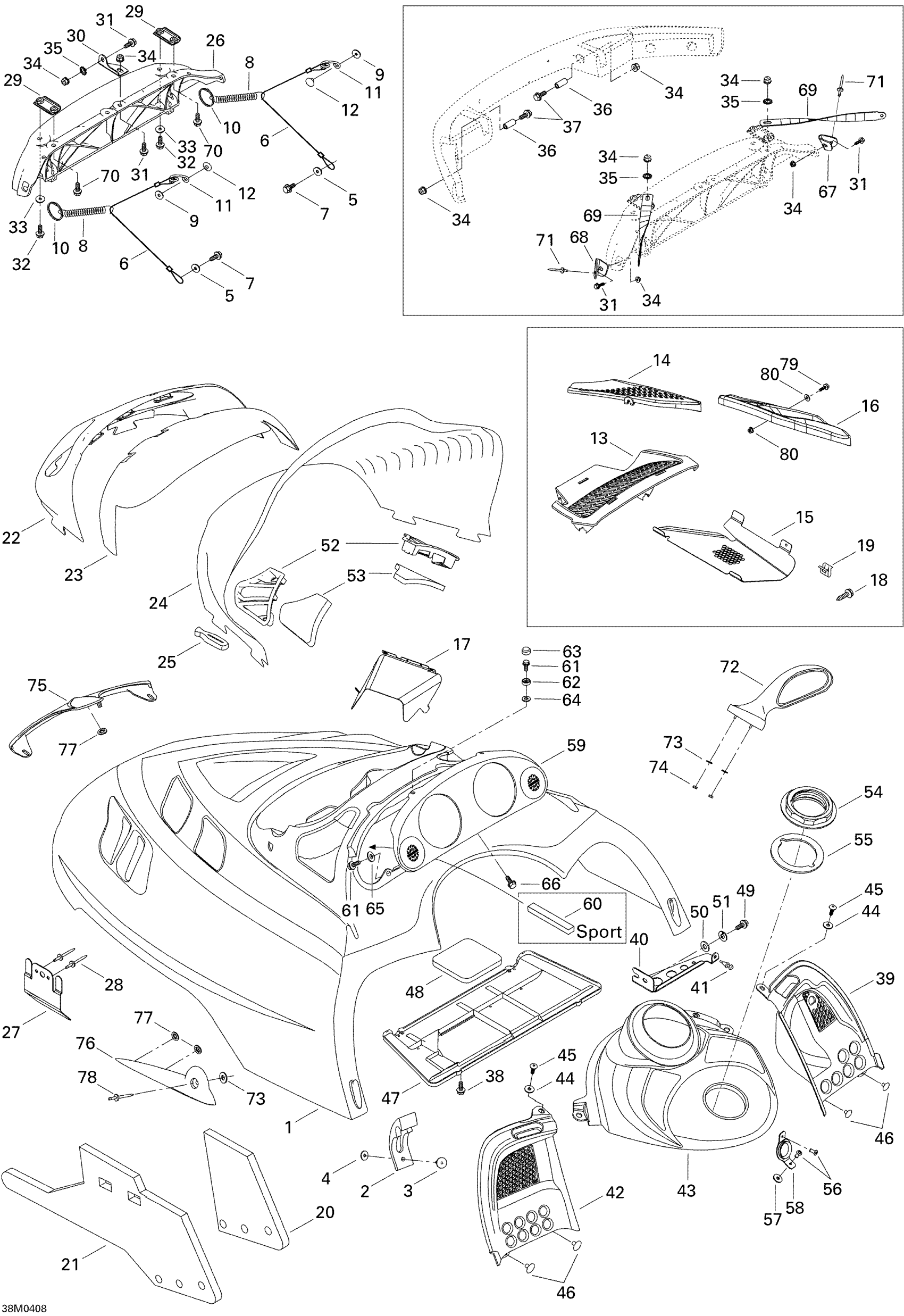

Ski-Doo Legend 600 HO SDI, 2004 Hood Diagram

#

Description
Price

1

HOOD, BLACK, B-160 - Call your local BRP dealership | BLACK (B-160)

517302740

Unavailable

Hood | AUTUMN RED (M-549)

517303051

Unavailable

2

Hood Latch

570027100

Unavailable

3

Pop Rivet 3/16”

293150108

$1.23

4

Washer

517124300

Unavailable

5

Washer | DS 650 X

391301600

Unavailable

6

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

7

Hex. Tapping Screw

365901000

Unavailable

8

Spring

415043300

Unavailable

9

Washer

517124300

Unavailable

10

RING - Call your local BRP dealership

415058300

Unavailable

11

Bracket

517262800

Unavailable

12

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

13

CENTER GRILL, BLACK - Call your local BRP dealership

517302026

Unavailable

14

RH Intermediate Grille

517303032

Unavailable

LH Intermediate Grille

517303033

Unavailable

15

RH Side Grille

517303034

Unavailable

LH Side Grille

517303036

Unavailable

16

RH Grille

517302978

Unavailable

LH Side Grille

517302036

Unavailable

17

Air Deflector

517302979

Unavailable

Air Deflector

517303038

Unavailable

18

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

19

Edge Clip

517302785

Unavailable

20

RH Side Foam

517302675

Unavailable

21

LH Side Foam

517302630

Unavailable

22

HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership

517302158

Unavailable

Headlamp Moulding, Autumn Red | AUTUMN RED (M-549)

517303052

Unavailable

23

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

24

WINDSHIELD - Call your local BRP dealership

517302356

Unavailable

High Windshield | SE GT & Sport GT This part replaces 517302982.

517302560

Unavailable

25

Windshield Latch

570023800

Unavailable

26

Hinge

517302631

Unavailable

27

Hood Guide

517302615

Unavailable

28

Pop Rivet 3/16”

390910000

$0.48

29

HINGE SIDE PLATE - Call your local BRP dealership

517302176

Unavailable

30

Hinge Center Plate

517302045

Unavailable

31

Hex. Flange Screw M6 X 16

207661654

$1.74

32

Hex. Forming Screw M6 X 20

207162060

Unavailable

33

Flat Washer M6, Stainless

234062600

Unavailable

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

35

Lock Washer Serrated M6

250200041

Unavailable

36

BUSHING - Call your local BRP dealership

517302179

Unavailable

37

Hex. Flange Screw M6 X 35

207663544

$0.74

38

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable

39

RH CONSOLE - Call your local BRP dealership

517302027

Unavailable

40

RH Console Support

517302621

Unavailable

41

Rubber Stopper

517302624

Unavailable

42

LH CONSOLE - Call your local BRP dealership

517302006

Unavailable

43

Center Console | SE & SE GT

517302702

Unavailable

Center Console | Sport & Sport GT

517302757

Unavailable

44

Washer | DS 650 X

391301600

Unavailable

45

Forming Screw M5 x 16

250000676

$0.83

46

Pop Rivet 3/16"

293150103

Unavailable

47

AIR INTAKE PLATE - Call your local BRP dealership

517302836

Unavailable

48

Secondary Foam

517302425

Unavailable

49

Hex. Flange Screw M6 X 12

210261250

$1.56

50

Flat Washer 6 mm

234061410

Unavailable

51

Lock Washer M6, Black

234161471

$0.52

52

RH AIR INTAKE GRILL - Call your local BRP dealership

517302024

Unavailable

LH AIR INTAKE GRILL - Call your local BRP dealership

517302025

Unavailable

53

Air Intake Foam

517302151

Unavailable

54

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

55

Gasket

293250029

Unavailable

56

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

57

Rubber Stopper

517302286

Unavailable

58

Rope Guide

517302129

Unavailable

59

Indicator Support

517302760

Unavailable

Indicator Support | SE

517302761

Unavailable

60

Foam

517302420

Unavailable

61

Screw K40 X 10

241140060

$1.25

62

RETAINER CAP - Call your local BRP dealership

414436800

$2.42

63

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

64

Flat Washer 4 mm, Stainless

234042600

Unavailable

65

Washer

517124300

Unavailable

66

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

67

RH Corner Support

517302254

Unavailable

68

LH Corner Support

517302255

Unavailable

69

HOOD CLAMP - Call your local BRP dealership

517302837

Unavailable

70

Hex. Flange Screw M6 X 25

207662544

Unavailable

71

Pop Rivet 3/16"

390406500

Unavailable

72

RH Mirror

517302679

Unavailable

LH Mirror

517302681

Unavailable

73

Washer

517124300

Unavailable

74

Elastic Stop Nut M4

232541414

$0.48

75

Front Hood Moulding

517302780

Unavailable

76

RH Hood Moulding

517302781

Unavailable

LH Hood Moulding

517302782

Unavailable

77

Push Nut

732610072

Unavailable

78

Pop Rivet 3/16”

293150092

Unavailable

79

HEX. SCREW M4 X 16 - Call your local BRP dealership

207141644

Unavailable

80

WASHER - Call your local BRP dealership

391301000

$0.65

81

Elastic Stop Nut M4

232541484

Unavailable
