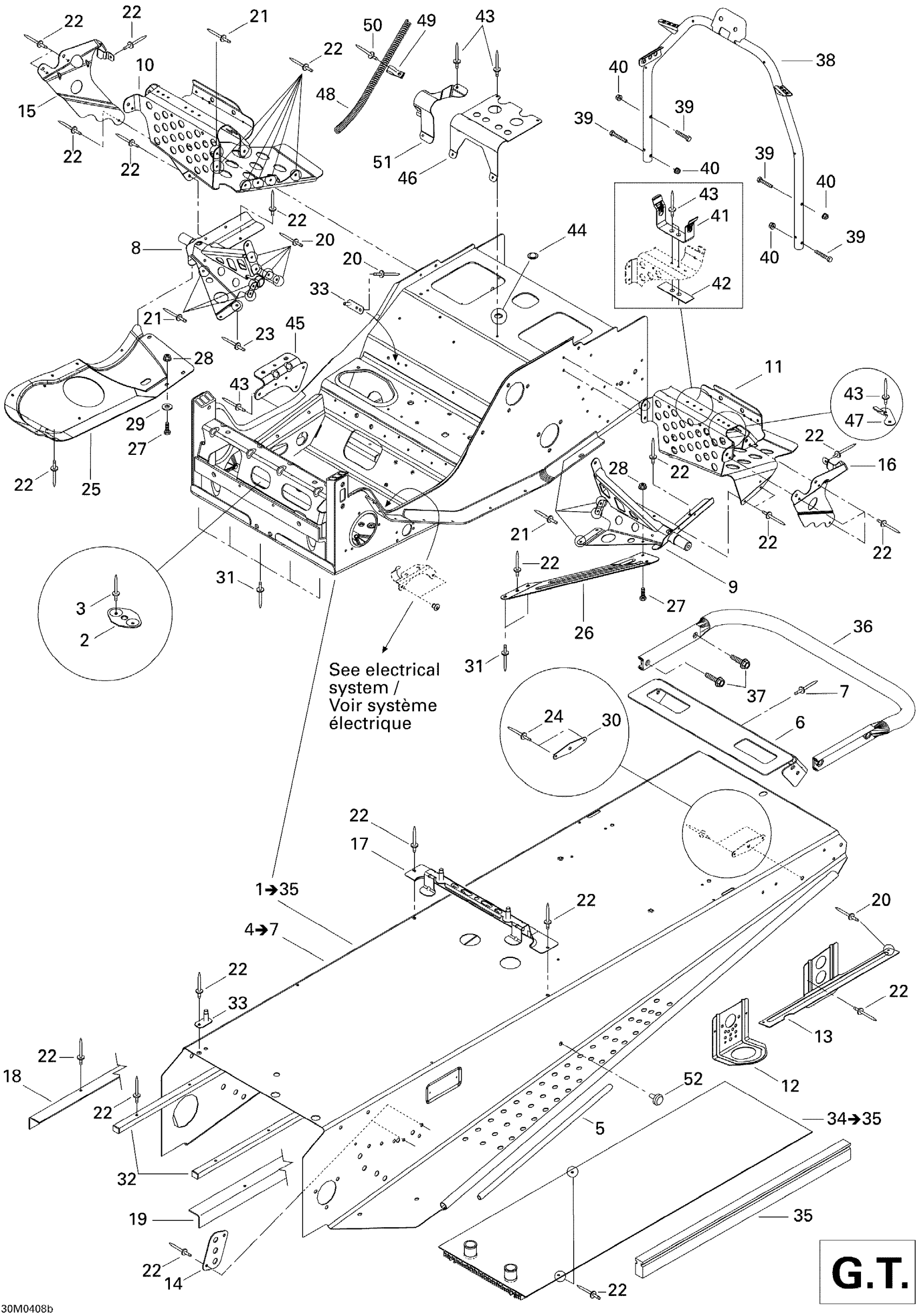

Ski-Doo Legend 600 HO SDI, 2004 Frame (GT) Diagram
#
1
Frame | 700 / INCLUDES ITEMS 1 TO 35
415128554
Unavailable
2
Plate Bracket
518201307
Unavailable
4
Forming Frame | Includes 2 to 5
415128615
Unavailable
5
FOOTREST REINFORCEMENT - Call your local BRP dealership
518304746
Unavailable
6
Rear Cap
518322734
Unavailable
8
RH Footrest Support
518320506
Unavailable
10
RH Footrest
518323563
Unavailable
11
LH FOOTREST - Call your local BRP dealership
518323564
Unavailable
12
Front Bracket
518321495
Unavailable
13
RH Rear Bracket
518323051
Unavailable
LH Rear Bracket
518323055
Unavailable
18
RH Frame Reinforcement
518323190
Unavailable
19
LH Frame Reinforcement
518323191
Unavailable
20
Avex Rivet
390909200
Unavailable
23
Pop Rivet 3/16"
390402300
Unavailable
24
Pop Rivet 3/16"
390402400
Unavailable
28
Hex. Flange Elastic Nut M5
233251414
Unavailable
29
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
30
Rear Reinforcement
518316767
Unavailable
31
HENROB RIVET - Call your local BRP dealership
390910300
Unavailable
32
Frame Protector
518321543
Unavailable
33
Double Bracket
518323173
Unavailable
34
Rear Radiator | Includes 15 - 16. Grand Touring 500.
518322905
Unavailable
35
Radiator Protector | Grand Touring 500.
518321656
Unavailable
36
Rear Bumper | Includes 32 to 33
517272510
Unavailable
37
Hex. Flange Screw M8 X 20
207682044
Unavailable
38
Handle Support
518322755
Unavailable
40
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
45
Muffler Support
518322635
Unavailable
46
AIR INTAKE SUPPORT - Call your local BRP dealership
518310400
Unavailable
48
ROPE GUIDE - Call your local BRP dealership
518321569
Unavailable
49
Open Clamp
518321570
Unavailable
50
Pop Rivet 3/16"
293150103
Unavailable
51
Hose Support
518322699
Unavailable
52
Panel Fastener
518321954
Unavailable
