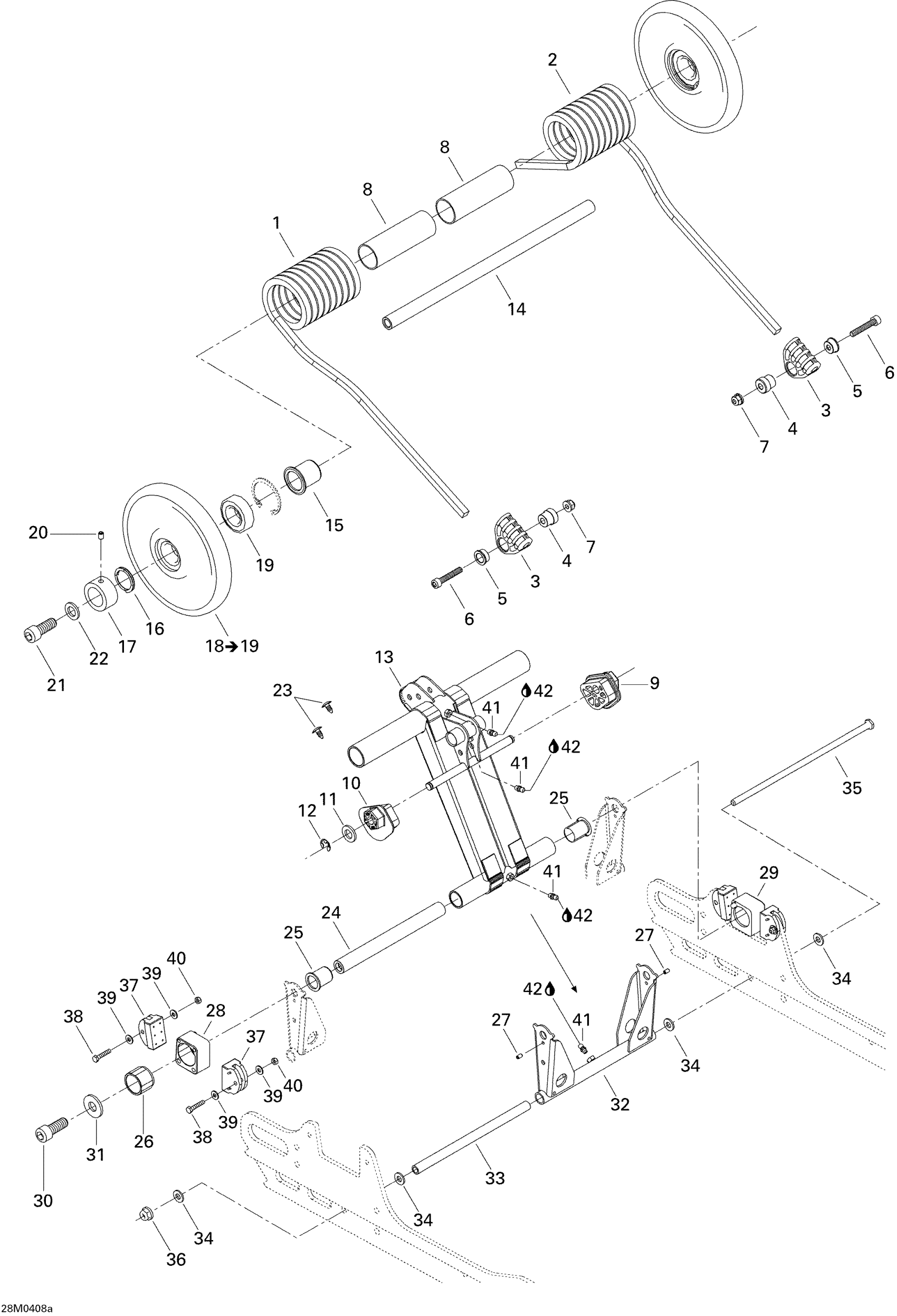

Ski-Doo Legend 600 HO SDI, 2004 Rear Arm Diagram

#

Description
Price

1

RH SPRING, SQUARE - Call your local BRP dealership | SE

503190492

Unavailable

2

LH SPRING, SQUARE - Call your local BRP dealership | SE

503190494

Unavailable

3

Spring Support

503189657

$9.90

4

Spring Guide Axle

503188934

Unavailable

5

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

6

Socket Head Screw M8 X 45

205084544

$0.85

7

Hex. Flange Elastic Nut M8

233281414

$1.31

8

PLASTIC BUSHING - Call your local BRP dealership

503189105

Unavailable

9

LH CAM ADJUSTER - Call your local BRP dealership

503190023

Unavailable

10

RH CAM ADJUSTER - Call your local BRP dealership

503190022

Unavailable

11

Flat Washer 12 mm

234021410

$0.66

12

E-Circlip

293370013

$0.60

13

Rear Arm

503190110

Unavailable

14

Upper Axle

503189412

Unavailable

15

CUSHION - Call your local BRP dealership

503189288

Unavailable

16

Axle Spring

503189146

$7.31

17

Retainer Ring

503189147

Unavailable

18

Wheel 165 Ass’Y | Includes 24 to 25

503190269

Unavailable

19

Ball Bearing

293350115

$10.82

20

Socket Set Screw M6 X 8

206260844

$1.43

21

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

22

Washer

503189276

$3.10

23

Black, Dart

414644300

$0.90

24

REAR LOWER AXLE - Call your local BRP dealership

503189413

Unavailable

25

Cushion

503191640

$5.54

26

Block Guide

503189488

$36.54

27

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

28

LH Block

503189152

Unavailable

29

RH Block

503189170

Unavailable

30

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

31

Washer

503189276

$3.10

32

PIVOT ARM - Call your local BRP dealership

503189819

Unavailable

33

Pivot Arm Axle

503189156

$20.12

34

Washer

503189157

$3.10

35

Bolt M8 X 248mm

503192440

$29.07

36

Hex. Flange Elastic Nut M8

233281414

$1.31

37

Rubber Stopper

503191291

$17.88

38

Hex. Screw M5 X 30

207053044

$1.12

39

Washer

250200016

$0.70

40

Elastic Stop Nut M5

232551414

$0.82

41

Grease Fitting

408200700

$3.21

42

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
