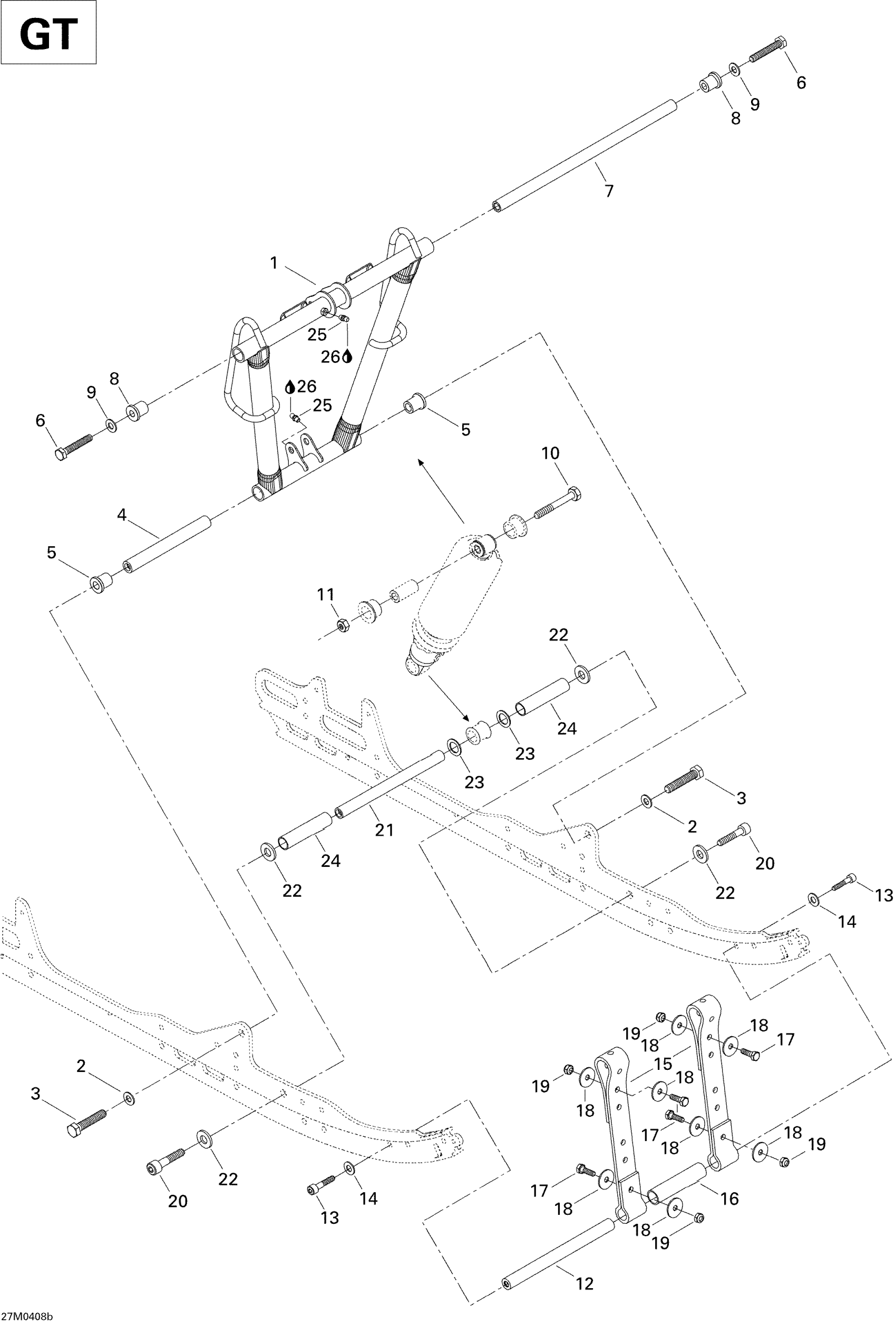

Ski-Doo Legend 600 HO SDI, 2004 Front Arm GT Diagram

#

Description
Price

1

Front Arm

503189292

Unavailable

2

Washer

503189276

Unavailable

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

Unavailable

7

SHAFT - Call your local BRP dealership

503190387

Unavailable

8

Bushing

503189324

$11.17

9

Washer

732900049

Unavailable

10

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

AXLE - Call your local BRP dealership

503189562

Unavailable

13

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

14

Washer

503189564

Unavailable

15

Stopper Strap, Large

503190563

Unavailable

16

Spacer

503189265

$4.66

17

Hex. Screw M8 X 25

207182544

Unavailable

18

Flat Washer

224081301

$0.86

19

Hex. Elastic Stop Nut M8

232581414

Unavailable

20

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

21

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

22

Washer

503189276

Unavailable

23

Washer

503189273

Unavailable

24

SPACER - Call your local BRP dealership

503189274

Unavailable

25

Grease Fitting

408200700

Unavailable

26

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
