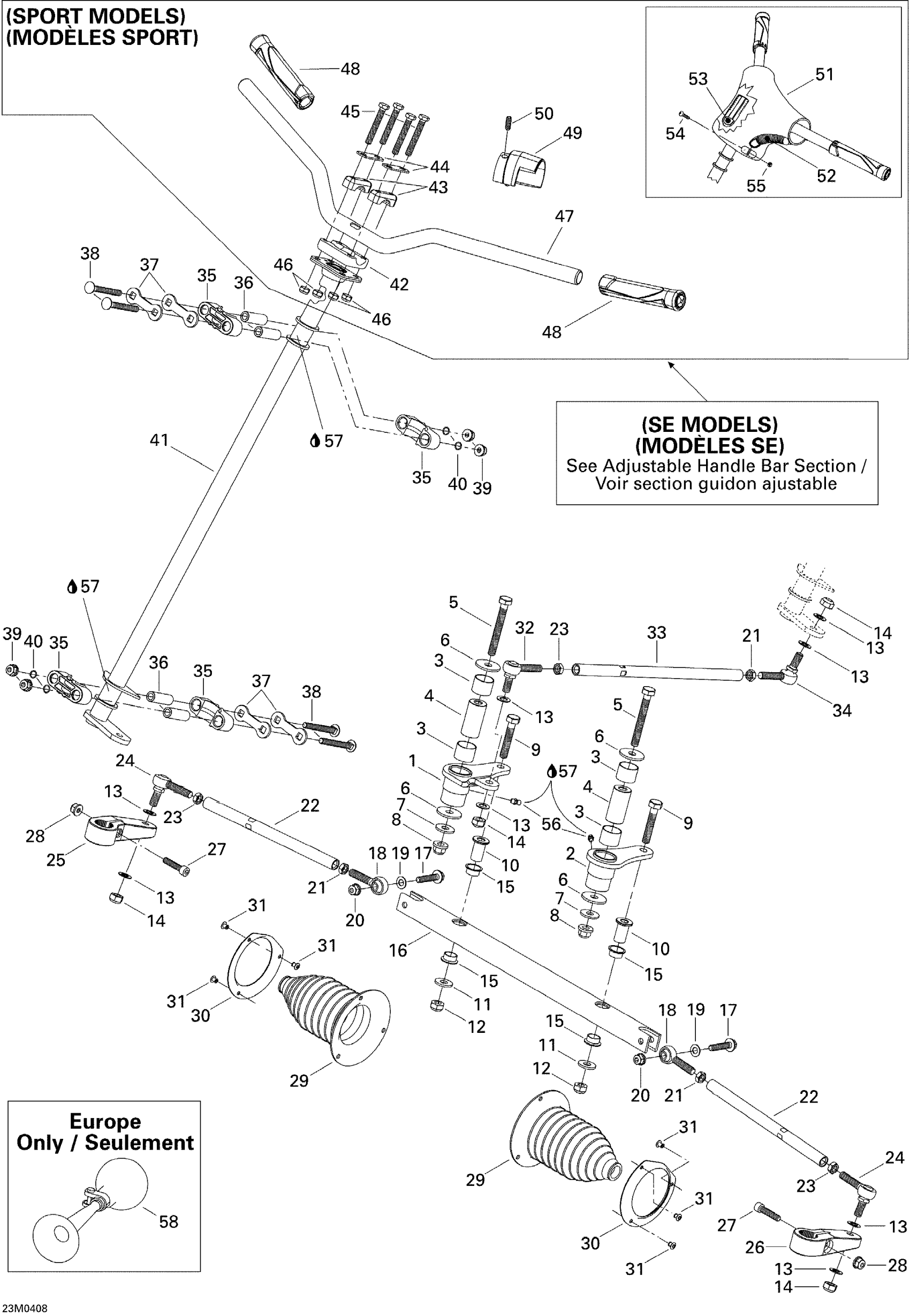

Ski-Doo Legend 600 HO SDI, 2004 Steering System Diagram

#

Description
Price

1

RH Swivel Arm

506151506

Unavailable

2

LH SWIVEL ARM - Call your local BRP dealership

506151623

Unavailable

3

BUSHING SWIVEL - Call your local BRP dealership

506149900

Unavailable

4

PIVOT SWIVEL - Call your local BRP dealership

506150100

Unavailable

5

Hex. Screw M10 X 80

207008086

$3.19

6

Washer 10 mm

506150000

$2.55

7

Flat Washer M10 | 4X4

250200014

$1.34

8

Flange Nut M10

732610084

$6.30

9

Hex. Screw M10 X 55

207005544

$2.12

10

BAR PIVOT - Call your local BRP dealership

506147300

Unavailable

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.63

13

Washer

503175800

$3.16

14

Elastic Flange Nut M10

232501416

$1.43

15

Swivel Bushing

503191555

$5.54

16

Bar-Swivel

506147000

Unavailable

17

Hex. Flange Screw M8 X 40

207684044

$1.43

18

LH BALL JOINT - Call your local BRP dealership

506151496

Unavailable

19

Washer

506151252

$3.01

20

Hex. Flange Elastic Nut M8

233281414

$1.31

21

LH Threaded Hex. Jam Nut M10

250100016

$0.70

22

Tie-Rod

506151374

Unavailable

23

RH Threaded Hex. Jam Nut M10

732610010

$0.70

24

Ball Joint

506151491

$41.01

25

RH STEERING ARM - Call your local BRP dealership

506145800

Unavailable

26

LH STEERING ARM - Call your local BRP dealership

506145900

Unavailable

27

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

28

Hex. Flange Elastic Nut M8

233281414

$1.31

29

TIE-ROD CAP - Call your local BRP dealership

570070500

Unavailable

30

RETAINER RING - Call your local BRP dealership

506151100

Unavailable

31

Pop Rivet 3/16"

390402300

$0.73

32

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

33

TIE-ROD - Call your local BRP dealership

506151375

Unavailable

34

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

35

Housing Half

506150400

$7.09

36

Housing Bushing

506150500

$7.27

37

Stopper Plate

506150600

$4.03

38

Carriage Bolt M8 X 70

207787044

$1.27

39

Hex. Flange Elastic Nut M8

233281414

$1.31

40

O-RING - Call your local BRP dealership

506151140

Unavailable

41

Main Tube

506147100

Unavailable

Main Tube | SE MODELS

506151429

Unavailable

42

Steering Support

709400919

$20.12

43

Steering Support

709400919

$20.12

44

Stiffner

709400509

$4.30

45

Hex. Screw M8 X 55

207085544

$1.57

46

Hex. Elastic Stop Nut M8

232581414

$0.54

47

HANDLEBAR - Call your local BRP dealership | Sport / Sport GT

506151687

Unavailable

48

Handle Grip

506152238

$74.60

49

ADAPTATOR - Call your local BRP dealership

506151566

Unavailable

50

SOCKET SET SCREW M8 X 12 - Call your local BRP dealership

206581244

Unavailable

51

STEERING PAD - Call your local BRP dealership | Sport / Sport GT

506151597

Unavailable

52

KEYWAY - Call your local BRP dealership | Sport / Sport GT

572106200

Unavailable

53

Keyway | Sport / Sport GT

506151661

Unavailable

54

Phillips Screw M5 X 20

208652044

$1.27

55

Hex. Flange Elastic Nut M5

233251414

$1.91

56

Grease Fitting

408200700

$3.21

57

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

58

Horn

549011291

$34.30
