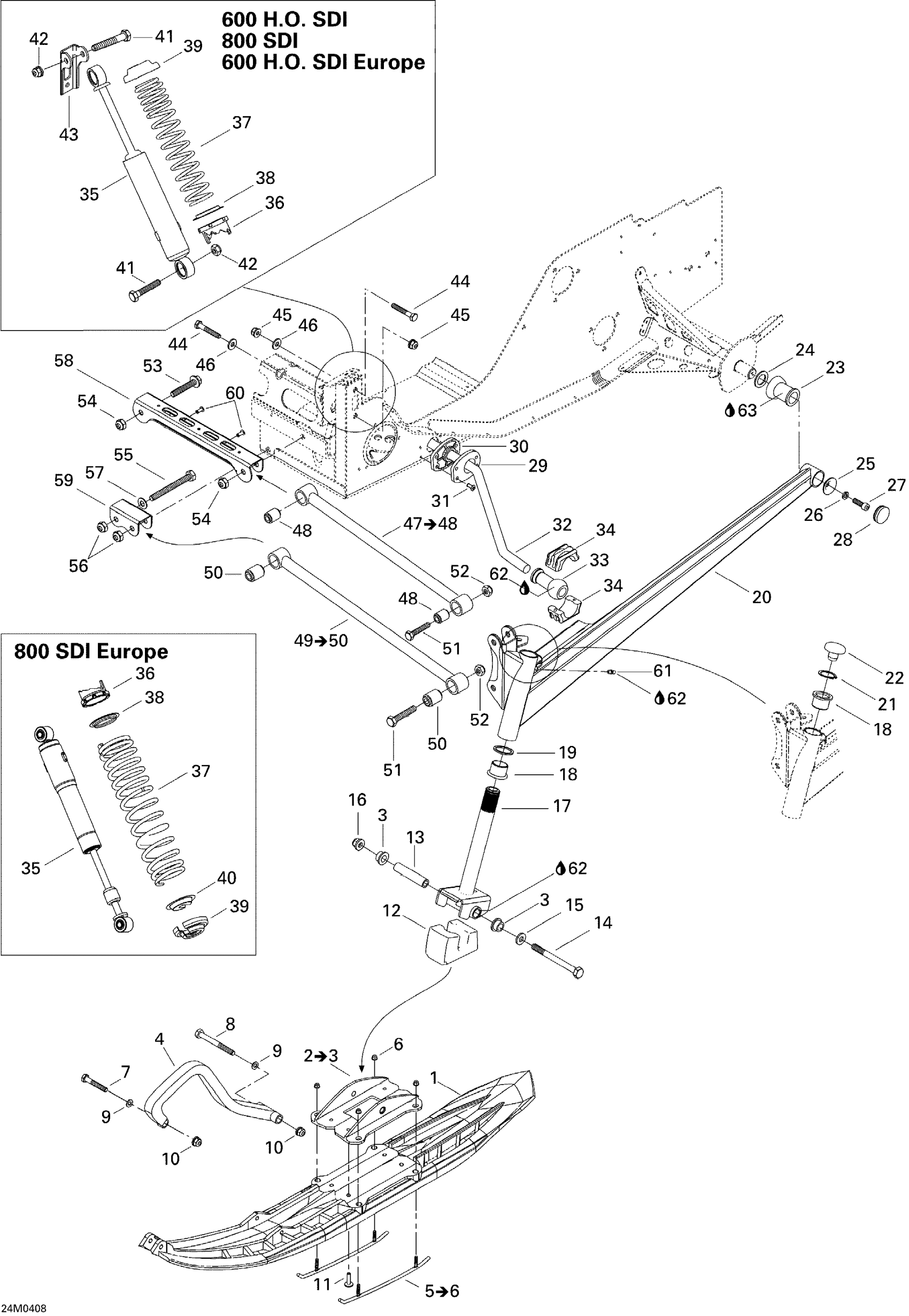

Ski-Doo Legend 600 HO SDI, 2004 Front Suspension And Ski Diagram

#

Description
Price

1

Deep Black, Precision Ski | Sport

505070727

Unavailable

2

Bridge Ass'y | Includes 2 to 3

505070764

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Black, Handle

505070963

Unavailable

5

Lisses *Carbides | Includes 5 to 6 This part replaces 860504900.

860200148

Unavailable

6

Hex. Flange Elastic Nut M10

233201414

$1.26

7

Hex. Screw M8 X 50

207085044

Unavailable

8

Hex. Screw M8 X 90

207089044

$2.82

9

Flat Washer 8 mm

234081410

Unavailable

10

Hex. Flange Elastic Nut M8

233281414

Unavailable

11

RIVET_POP 1/4 - Call your local BRP dealership

293150090

Unavailable

12

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

13

Spacer

506133300

Unavailable

14

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

15

Washer

732900049

Unavailable

16

Flange Nut M10

732610084

Unavailable

17

Ski Leg

506151234

Unavailable

18

Cushion

505070003

Unavailable

19

WASHER - Call your local BRP dealership

505070004

Unavailable

20

RH ARM - Call your local BRP dealership

505070645

Unavailable

LH ARM - Call your local BRP dealership

505070646

Unavailable

21

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

22

Cap

572091300

$8.97

23

DAMPER - Call your local BRP dealership

570062200

Unavailable

24

WASHER - Call your local BRP dealership

503146700

$4.42

25

Cup | Package Hunter

705007171

Unavailable

26

Lock Washer 8 mm

234181401

Unavailable

27

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

Unavailable

28

CAP - Call your local BRP dealership

572045900

Unavailable

29

Plate

505070542

Unavailable

30

BUSHING - Call your local BRP dealership

505070139

Unavailable

31

Pop Rivet 3/16”

390407200

$0.66

32

STABILISATOR - Call your local BRP dealership

505070563

Unavailable

33

BALL JOINT - Call your local BRP dealership

505070819

Unavailable

34

SLIDING BLOCK - Call your local BRP dealership

505070817

Unavailable

35

FRONT SHOCK ASSY - Call your local BRP dealership

505071113

Unavailable

35

Front Shock Ass’Y | Europe

505071311

Unavailable

36

Adjustment Cam

505073625

Unavailable

36

Adjustment Cam

505073625

Unavailable

37

Spring

505070686

Unavailable

37

Spring

505071129

Unavailable

38

Spring Guide

503187500

Unavailable

38

Spring Guide

503191872

Unavailable

39

Spring Stopper

706200881

$10.30

40

Cap

706200785

Unavailable

41

Hex. Screw M10 X 55

207005544

$1.85

42

Elastic Locking Nut M10 X 1.5

233601416

$1.68

43

RH SHOCK BRACKET - Call your local BRP dealership

518317518

$9.20

LH Shock Bracket

518317519

Unavailable

44

Hex. Screw M8 X 50

207085044

Unavailable

45

Hex. Flange Elastic Nut M8

233281414

Unavailable

46

Washer

506151245

Unavailable

47

UPPER ARM ASSY - Call your local BRP dealership | Includes 41 To 42

505070580

Unavailable

48

Bushing

505070025

Unavailable

49

Lower Arm Ass’Y | Includes 43 To 44

505070402

Unavailable

50

Bushing

505070025

Unavailable

51

Hex. Screw M10 X 55

207005544

$1.85

52

Elastic Locking Nut M10 X 1.5

233601416

$1.68

53

Hex. Flange Screw M10 X 55

207605544

Unavailable

54

Elastic Locking Nut M10 X 1.5

233601416

$1.68

55

Hex. Screw M10 X 95

207009544

Unavailable

56

Elastic Locking Nut M10 X 1.5

233601416

$1.68

57

Flat Washer 10 mm

234001410

Unavailable

58

Upper Arm Bracket

505070010

Unavailable

59

Lower Arm Bracket

505070011

Unavailable

60

Pop Rivet 3/16"

390402200

$0.26

61

Grease Fitting

408200700

Unavailable

62

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

63

Grease, Super Lube

293550030

Unavailable
