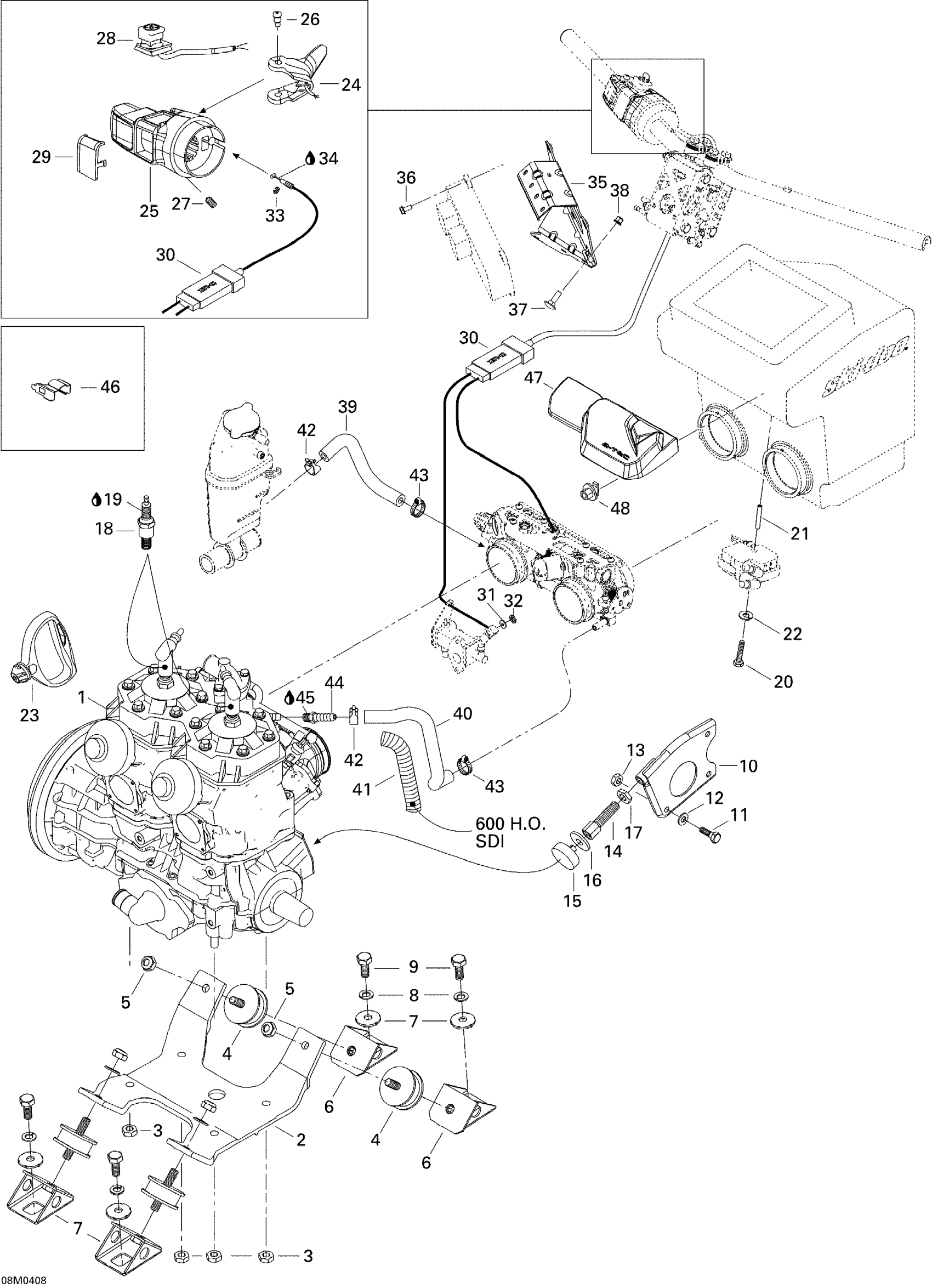

Ski-Doo Legend 600 HO SDI, 2004 Engine Support Diagram

#

Description
Price

1

«593 H.O.» Sdi Engine (Rer) | 600 H.O. SDI

400509752

Unavailable

«793» Sdi Engine (Rer) | 800 SDI

400702625

Unavailable

2

Engine Support

512059173

Unavailable

3

Hex. Flange Elastic Nut M10

233201414

$1.45

4

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

5

Hex. Flange Elastic Nut M10

233201414

$1.45

6

Engine Support

512050900

Unavailable

7

Lock Washer

512056700

$3.01

8

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

9

Hex. Screw M10 X 25

207102544

$1.27

10

Support Plate

512058500

Unavailable

11

Hex. Screw M8 X 20

207182044

$0.70

12

Flat Washer 8 mm

234081410

$0.79

13

Hex. Elastic Stop Nut M8

232581414

$0.54

14

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

15

Stopper

512059056

Unavailable

16

WASHER - Call your local BRP dealership

512059057

Unavailable

17

Nut Hexagonal RH.

232026414

$1.43

18

Spark Plug NGK BR9ECS

415128524

$11.13

19

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

20

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

21

SPACER - Call your local BRP dealership

512059812

Unavailable

22

Lock Washer M6, Black

234161471

$0.51

23

Starter Grip

572084400

$14.10

24

Throttle Handle Ass'y | Includes 13 to 14

512060484

$114.90

25

THROTTLE HOUSING - Call your local BRP dealership

512059763

Unavailable

26

Flange Screw

732601143

$3.90

27

Socket Set Screw M8 X 10

414440800

$3.88

28

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

29

Switch Cover

572100901

$14.10

30

THROTTLE CABLE - Call your local BRP dealership

512059362

Unavailable

Throttle Cable | Sport

512059882

Unavailable

31

Flat Washer 8 mm, Nylon

234081100

$1.15

32

Circlip

414753500

$0.67

33

Circlip

414274500

$0.85

34

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

35

Electronic Control Unit Support

512059613

Unavailable

36

Hex. Flange Screw M6 X 12

210261250

$1.79

37

Carriage Bolt

207751644

Unavailable

38

Hex. Flange Elastic Nut M5

233251414

$1.91

39

FORMED HOSE - Call your local BRP dealership

512059563

Unavailable

40

Formed Hose

512059892

Unavailable

41

Tubing 16 Mm 1000Mm Long

219704408

$7.15

42

Spring Clamp

414655700

$0.66

43

Tridon Gear Clamp

293650170

$2.00

44

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

45

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

46

Heating Element Bracket

512059809

Unavailable

47

Moulding

512059666

Unavailable

48

Lock

512059786

Unavailable
