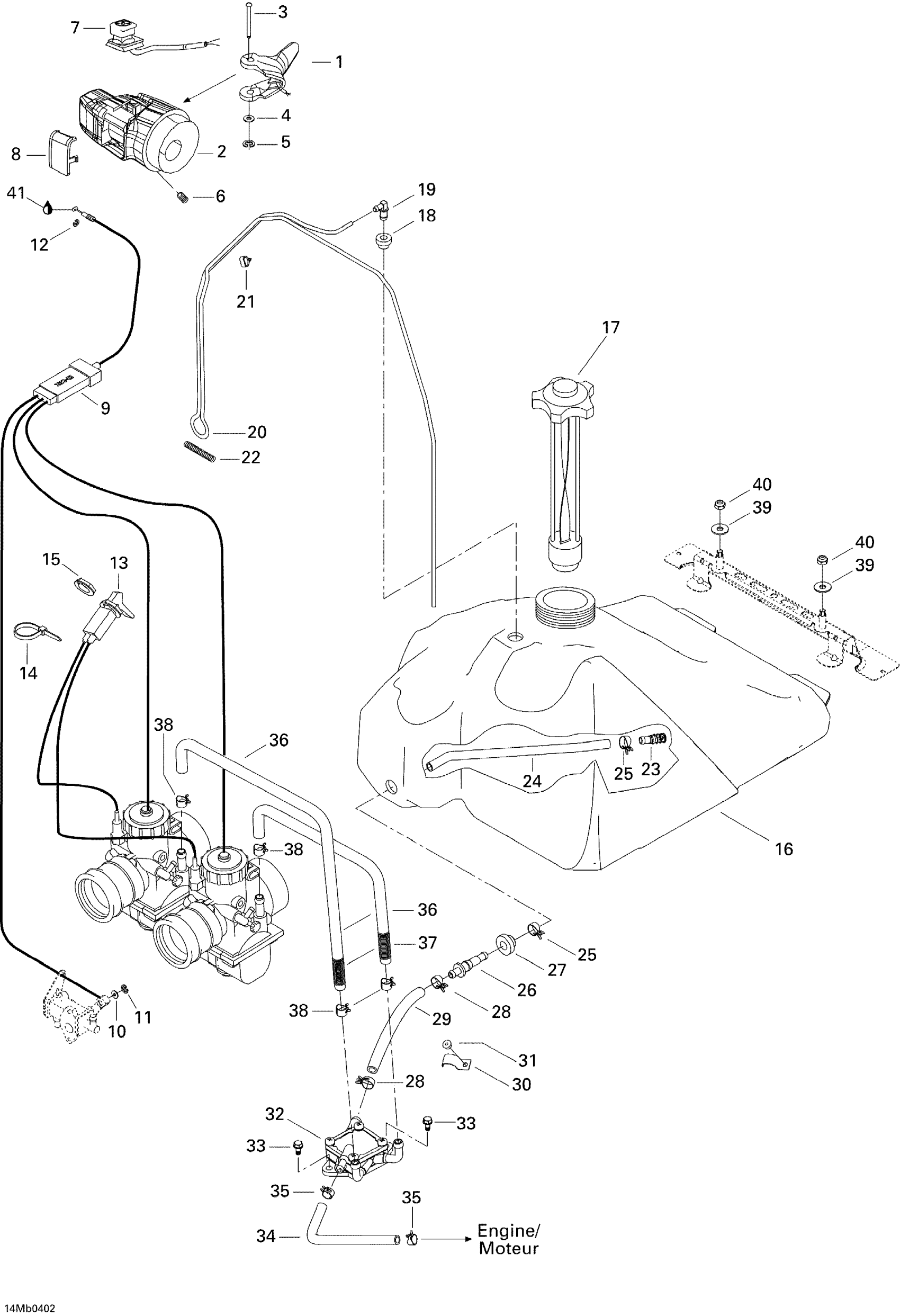

Ski-Doo Legend 550F, 2004 Fuel System (550F) Diagram

#

Description
Price

1

Handle Ass'y

512060214

$117.66

2

THROTTLE HOUSING - Call your local BRP dealership

512059489

Unavailable

3

Lever Pin

414438700

$11.14

4

Flat Washer M5, Stainless

234051600

$0.64

5

Circlip | Model-RS

414439000

$4.14

6

Socket Set Screw M8 X 10

414440800

$4.00

7

Kill Switch

515175410

Unavailable

8

Switch Cover

572100901

$14.54

9

THROTTLE CABLE - Call your local BRP dealership

512059625

Unavailable

10

Flat Washer 8 mm, Nylon

234081100

$1.00

11

Circlip

414753500

$0.59

12

Circlip

414274500

$0.74

13

CHOKE CABLE - Call your local BRP dealership

512059441

Unavailable

14

Tie-Rap 173 mm

293750009

$0.85

15

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

16

Fuel Tank

513032987

Unavailable

17

Fuel Tank Cap | Sport / Sport GT

513033020

$35.35

18

Grommet

513032908

$8.74

19

Male Connector

414814100

$2.18

20

Was 415080100 Fuel Line Primer 3,2mm

219704409

$9.15

21

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

22

SPRING - Call your local BRP dealership

414818200

Unavailable

23

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

24

Hose

415005700

$5.49

25

Norma Spring Clamp

513033010

$8.68

26

Male Connector

414872700

$1.86

27

Grommet | Europe

707800347

$7.58

28

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

29

Formed Hose

513032903

$28.43

30

CLIP - Call your local BRP dealership

415018200

Unavailable

31

Pop Rivet 3/16"

293150103

$0.54

32

Fuel Pump

403901813

$84.99

33

Hex. Flange Screw M6 X 16

210261650

$1.22

34

Hose

219704549

$47.66

35

Spring Clamp

414415200

$0.83

36

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

37

Tubing 16 Mm 1000Mm Long

219704408

$6.23

38

Universal Spring Clamp

513033029

$5.11

39

Flat Washer 8 mm

234082410

$1.11

40

Hex. Elastic Stop Nut M8

232581414

$0.47

41

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66
