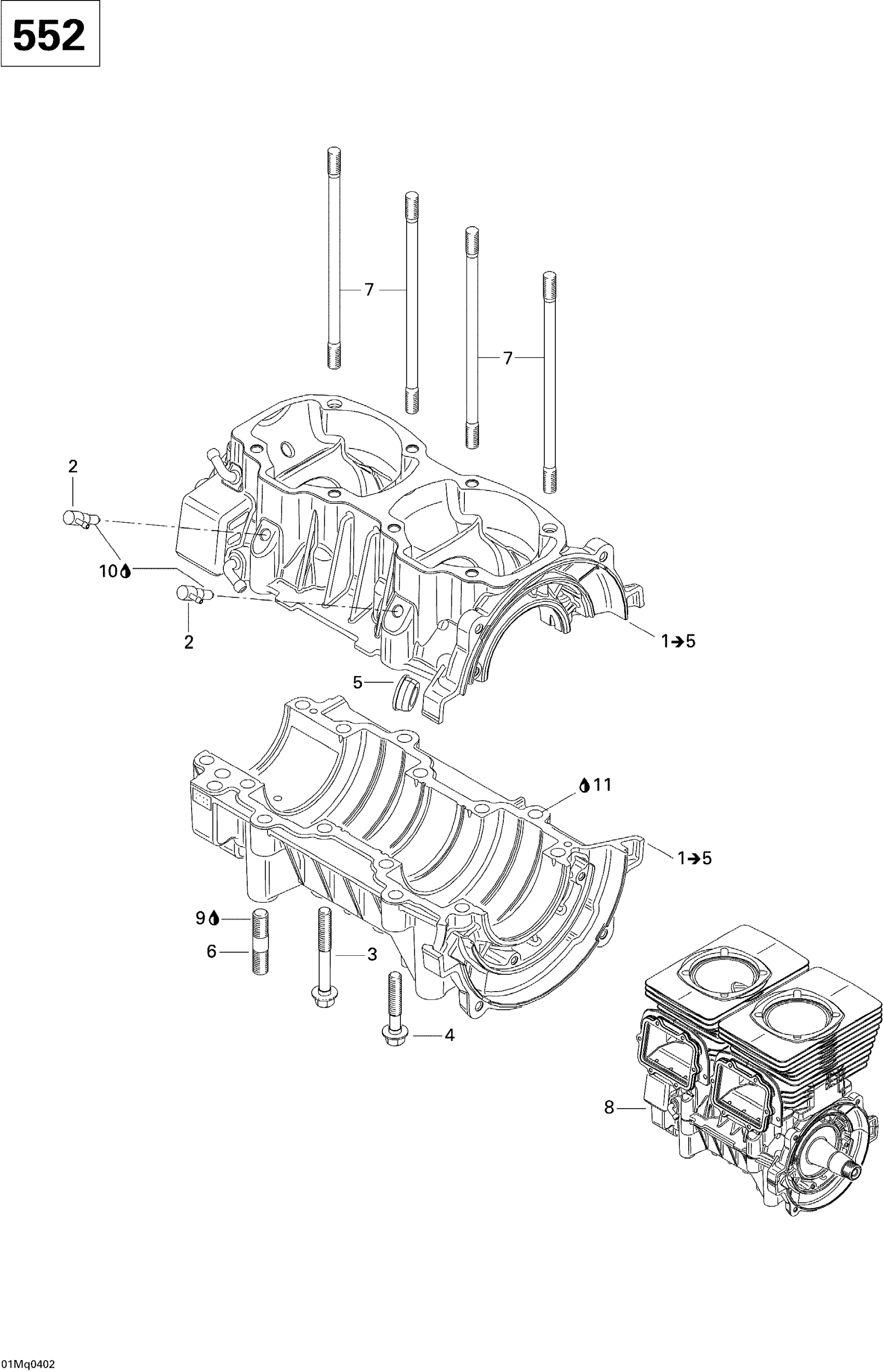

Ski-Doo Legend 550F, 2004 Crankcase (550F) Diagram

#

Description

Price

1

Crankcase Ass'y | Includes Items 1 to 5

420888498

Unavailable

2

Check Valve

420956511

$28.57

3

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$6.09

4

Hex. Collar Screw M8 x 45

420640432

$1.94

5

Cable Grommet

420860962

$11.52

6

Stud M10 X 23

420941644

Unavailable

7

Stud M8 X 173.5

420840556

$15.35

8

SHORT BLOCK 552 - Call your local BRP dealership

420055202

Unavailable

9

Loctite 243, 10 ml

293800060

$20.77

10

Sealant Loctite 648

219703000

$35.72

11

Sealing Compound Loctite 5366 310Ml

420297907

$54.57
