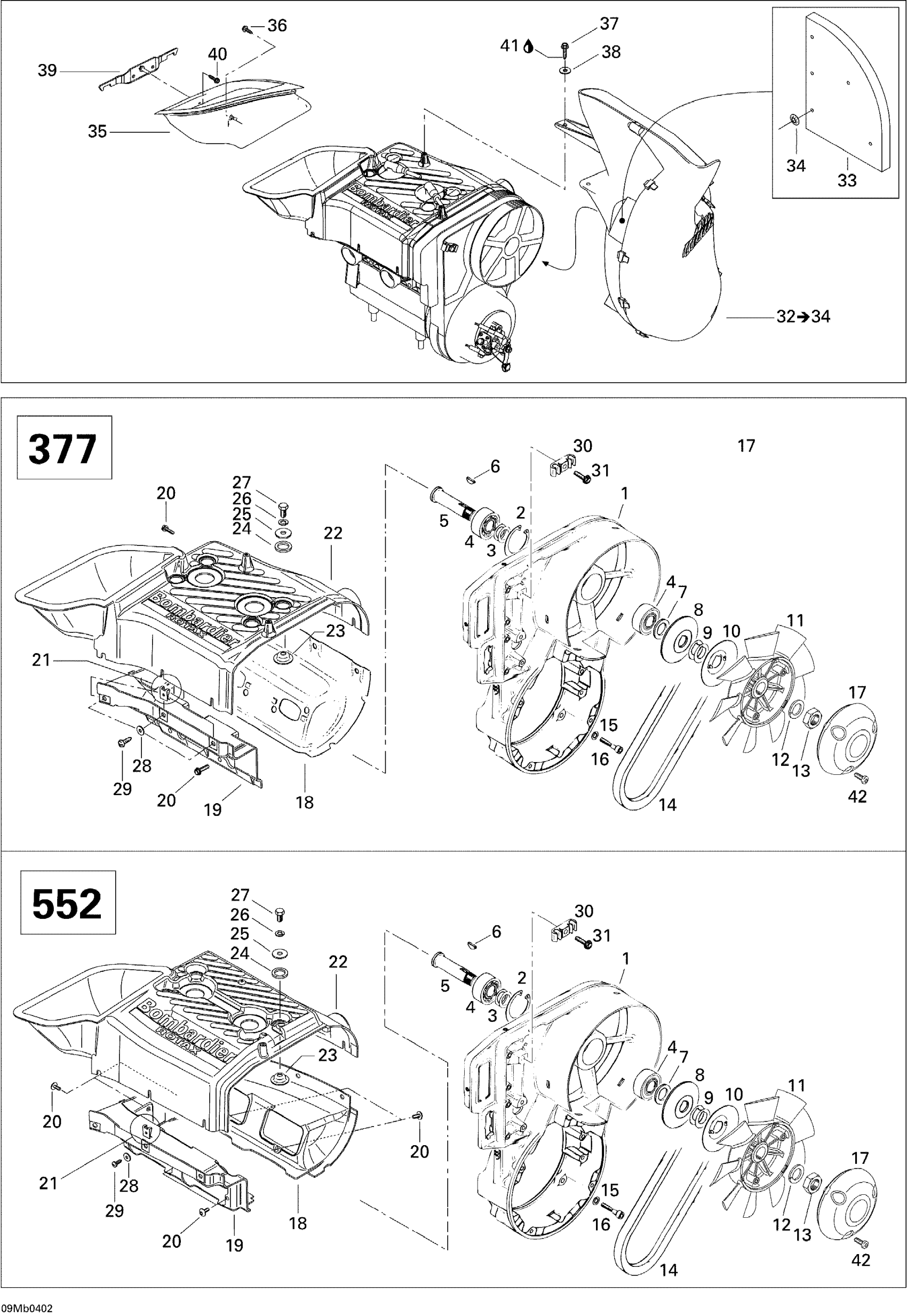

Ski-Doo Legend 550F, 2004 Cooling System (550F) Diagram

#

Description
Price

1

Fan Housing This part replaces 420912203.

420912230

$461.51

2

Lock Ring

420945880

$3.61

3

Shim

420244585

$1.83

4

Ball Bearing

420832161

$34.58

5

Fan Axle This part replaces 420937940.

420937941

$13.58

6

Woodruff Key

420246015

$3.11

7

Spacer Bushing

420827650

$11.29

8

Flange

420980496

$13.58

9

Shim 0.5 mm

420827080

$2.06

9

Shim 0.2 mm

420827082

$3.11

10

Protection Washer

420980523

$11.52

11

Fan

420866294

$93.82

12

Lock Washer

420945756

$3.11

13

Nut M16 This part replaces 420942285.

420942289

$9.31

14

V-Belt

414630800

$37.66

15

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

16

Torx Flange Screw M6 X 30

420440647

$1.97

17

Fan Cover

420975900

$13.58

18

Lower Cowling | 550 F.

420811392

$183.05

19

Cylinder Cowl (Intake Side) | 550 F.

420811830

Unavailable

20

Torx Screw M6 X 16

420640324

$2.06

21

SPRING NUT U #10-24 - Call your local BRP dealership

417300005

Unavailable

22

CYLINDER COWL - Call your local BRP dealership | 550 F.

420811820

Unavailable

23

Cup Washer

420827817

$13.58

24

Rubber Washer

420960865

$2.06

25

Washer This part replaces 420227935.

420227936

$3.29

26

Washer-Lock Din.128

420945832

$1.09

27

Torx Flange Screw M8 X 16

420440852

$4.00

28

FLAT WASHER - Call your local BRP dealership

420926180

Unavailable

29

Tapping Screw M4.8 X 16

417300006

$0.71

30

CLAMP - Call your local BRP dealership

420860945

Unavailable

31

Hex. Tapping Screw M5 X 20

420841555

$1.68

32

Inlet Duct | Includes 32 - 34.

509000218

Unavailable

33

Foam

509000152

Unavailable

34

Push Nut

389804300

$0.43

35

Outlet Duct

509000118

Unavailable

36

Hex. Tapping Screw #8 X 5/8"

250000068

$1.85

37

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

38

Washer | DS 650 X

391301600

$0.48

39

Support

509000164

Unavailable

40

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

41

Loctite, Black Max, 3 ml

413408300

$24.58

42

Screw

420841971

$2.91
