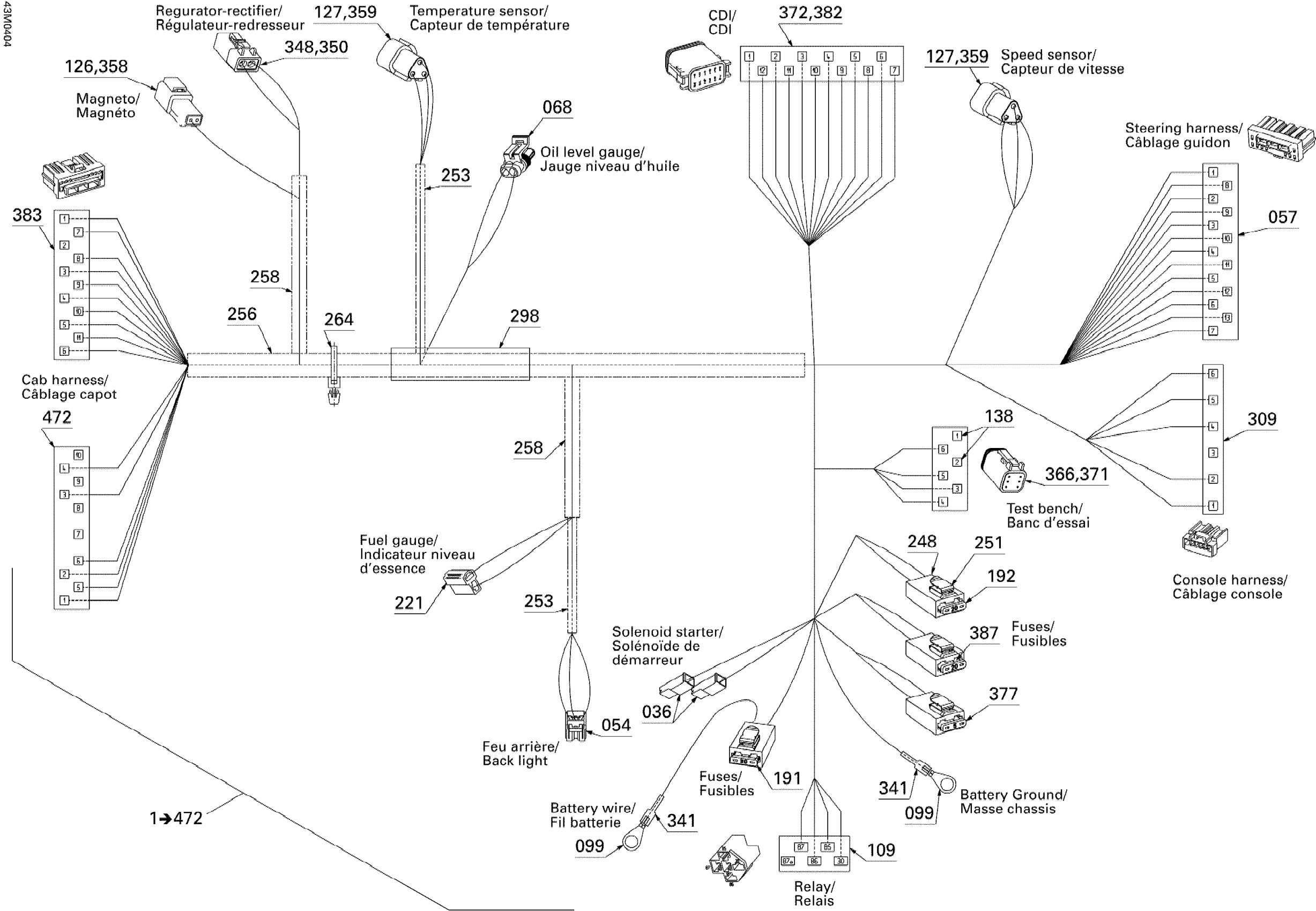

Ski-Doo Legend 500 SS, 2004 Frame Harness Diagram

#

Description
Price

1

Frame Harness | INCLUDES ITEMS 1 TO 472

515176005

Unavailable

034

Female Terminal

409010100

$5.46

036

Female Terminal Housing, 13 Circuits

515175350

Unavailable

044

Female Terminal

515175231

Unavailable

045

Female Terminal

515175235

Unavailable

046

Female Terminal

515175282

$6.43

054

Female Housing, 3 Circuits

515175495

$15.35

057

Female Terminal Housing, 13 Circuits

515175350

Unavailable

062

Female Terminal

278001014

Unavailable

068

Female Housing, 2 Circuits

409209500

$13.48

099

Open Barrel

278000992

$1.79

0109

Female Housing, 5 Circuits

409209900

$8.98

0110

Male Terminal

278000631

$4.12

0112

Female Terminal

278000632

Unavailable

0113

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

0126

Male Lock, 2 Circuits

409207500

$3.02

0127

Male Lock, 3 Circuits

409207600

$3.02

0138

Sealing Cap

293000052

Unavailable

0172

Female Terminal

561503100

Unavailable

0173

Female Terminal

561503100

Unavailable

0191

Fuse, 30 Amperes

410917200

$3.22

0192

Fuse, 20 Amperes

409003900

$3.22

0205

Female Terminal

409011600

$5.11

0206

Female Terminal

409004200

Unavailable

0221

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

0248

Fuse Holder

409004000

Unavailable

0251

CLIP - Call your local BRP dealership

409014200

$4.23

0253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

0256

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

0258

Tubing 10 MM 1000MM Long

219704407

Unavailable

0264

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

$0.91

0298

Tape

293740005

Unavailable

0309

Female Terminal Housing, 6 Circuits

515175543

$8.57

0320

Female Terminal

515175567

$6.03

0341

Tubing Shrink

515175608

Unavailable

0348

Female Terminal Housing, 2 Circuits

278001673

$23.05

0350

Female Lock, 2 Circuits

278001671

$3.22

0358

Male Terminal Housing, 2 Circuits

515175665

$8.02

0359

Male Housing

515175666

Unavailable

0366

Male Housing, 6 Circuits

515175673

$13.05

0371

Male Wedge, 6 Circuits

515175678

Unavailable

0372

FEMALE LOCK, 12 CIRCUITS - Call your local BRP dealership

515175679

Unavailable

0377

Fuse, 5 Amperes | CE

278000344

$3.22

0382

FEMALE TERMINAL HOUSING, 12 CIRCUITS - Call your local BRP dealership

515175704

Unavailable

0383

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

Unavailable

0387

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

0472

Female Terminal Housing

415128527
