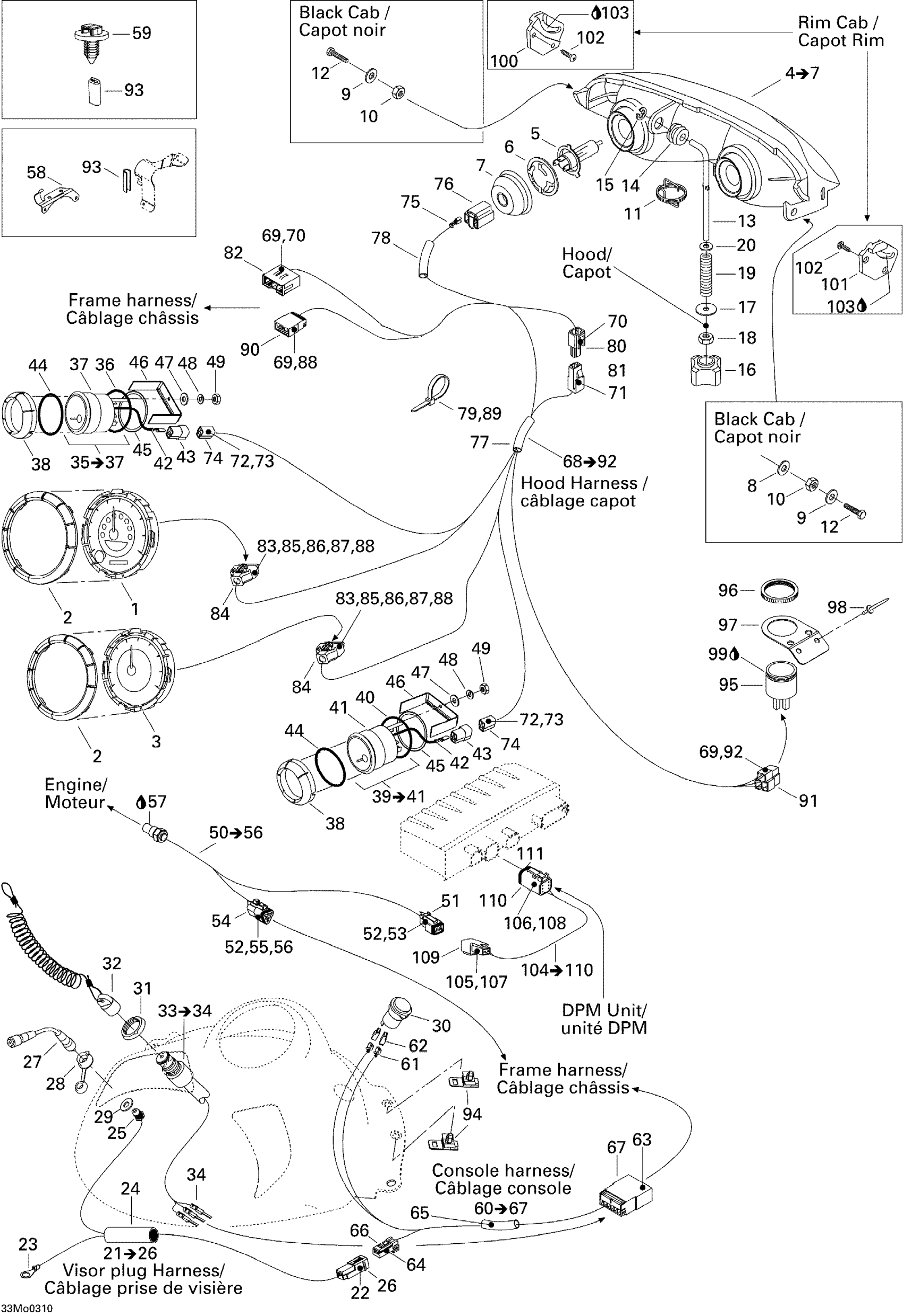

Ski-Doo Legend 500 SS, 2004 Cab Harness Diagram
#
1
Speedometer
515176000
Unavailable
2
Gauge Ring This part replaces 515176242.
515179005
Unavailable
3
Tachometer
515176072
Unavailable
4
Halogen Headlamp Ass'y | Includes 4 to 7
515176311
Unavailable
5
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
6
BULB HOLDER - Call your local BRP dealership
515176385
Unavailable
7
COVER - Call your local BRP dealership
515175911
Unavailable
8
Flat Washer 10 mm
234001410
Unavailable
9
Flat Washer M5
234051410
Unavailable
10
NUT M5 - Call your local BRP dealership
250100018
Unavailable
11
SPRING - Call your local BRP dealership | Europe
515175324
Unavailable
12
Hex. Screw M5 X 35
207053544
Unavailable
13
ADJUSTER ROD - Call your local BRP dealership
517295800
Unavailable
14
Grommet - Call your local BRP dealership
415100800
Unavailable
15
Push Nut
732610072
Unavailable
16
Handle - Call your local BRP dealership
515175548
Unavailable
17
Washer
224060251
Unavailable
18
Elastic Stop Nut M6
232561414
Unavailable
19
SPRING - Call your local BRP dealership
415100600
Unavailable
20
Flat Washer 6 mm
234061410
Unavailable
23
OPEN BARREL - Call your local BRP dealership
515175172
Unavailable
24
Vinyl Tubing, Low Temp 3000Mm Long
219704424
Unavailable
25
Visor Plug
415096100
Unavailable
27
EXTENSION - Call your local BRP dealership
515175971
Unavailable
30
Outlet Power Kit, 12 Volts
861507200
Unavailable
32
DESS
515178284
Unavailable
33
DESS SWITCH - Call your local BRP dealership
515175145
Unavailable
35
Temperature Gauge
515175601
Unavailable
36
O-RING - Call your local BRP dealership
414807200
Unavailable
37
Case Holder | SE Models
414806600
Unavailable
38
RING GAUGE - Call your local BRP dealership
515175711
Unavailable
39
FUEL GAUGE - Call your local BRP dealership
515175529
Unavailable
40
O-RING - Call your local BRP dealership
414807200
Unavailable
41
Case Holder | SE Models
414806600
Unavailable
42
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
44
O-RING - Call your local BRP dealership
414807200
Unavailable
45
WASHER - Call your local BRP dealership
517258600
Unavailable
46
Case Holder
415099800
Unavailable
47
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
48
Lock Washer | SE Models
414833700
Unavailable
49
NUT - Call your local BRP dealership | SE Models
414833600
Unavailable
50
TEMPERATURE SENSOR - Call your local BRP dealership | Includes 6 to 13 / SPORT
515176041
Unavailable
50
Temperature Sensor | INCLUDES ITEMS 1 TO 7 / GSX 800 HO
515176042
Unavailable
51
Female Terminal Housing, 2 Circuits
515175670
Unavailable
52
Female Terminal
278000632
Unavailable
53
Female Lock, 2 Circuits
515175675
Unavailable
54
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
515175671
Unavailable
55
Female Lock, 3 Circuits
515175676
Unavailable
56
Sealing Cap
293000052
Unavailable
57
Was 293800018 Loctite 592, 50 ml | Package T
219704455
Unavailable
58
Cable Support
515175254
Unavailable
60
Console Harness | INCLUDES ITEMS 60 TO 67
515176084
Unavailable
64
Female Terminal
515175231
Unavailable
65
GAINE LOW TEMP.VINYL - Call your local BRP dealership
515175314
Unavailable
66
Female Housing, 2 Circuits
515175658
Unavailable
67
Male Terminal Housing, 6 Circuits
515175662
Unavailable
68
CAB WIRING HARNESS - Call your local BRP dealership | Includes 53 to 77
515175984
Unavailable
70
MALE TERMINAL - Call your local BRP dealership
515175273
Unavailable
72
Female Terminal
561503100
Unavailable
73
Female Terminal
561503100
Unavailable
74
Female Housing
409204300
Unavailable
75
FEMALE TERMINAL - Call your local BRP dealership
515175321
Unavailable
76
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
409202700
Unavailable
77
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
78
Tubing 10 MM 1000MM Long
219704407
Unavailable
80
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership
515175509
Unavailable
81
FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership
515175510
Unavailable
82
MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
515175720
Unavailable
83
Plug
515175812
Unavailable
84
Female Housing, 24 Circuits
515175801
Unavailable
85
Retainer Block
515175802
Unavailable
86
Wire Seal
515175803
Unavailable
90
Male Terminal Housing, 10 Circuits
415128526
Unavailable
91
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
515176069
Unavailable
92
Female Terminal
515176071
Unavailable
93
Was 271000110 Protection Trim
219704353
Unavailable
95
HORN - Call your local BRP dealership
515176035
Unavailable
97
PLATE - Call your local BRP dealership
515175688
Unavailable
99
Silicone Sealant 51388, 300 ml
296000309
Unavailable
100
RH Support
517289300
Unavailable
101
LH Support
517289400
Unavailable
102
Headlamp Screw
732601315
Unavailable
103
Grease Tube Lmz, 400 G
413707500
Unavailable
104
Sensor Harness | INCLUDES ITEMS 104 TO 110
515175898
Unavailable
106
Female Terminal
278000632
Unavailable
108
Sealing Cap
293000052
Unavailable
111
Male Wedge, 6 Circuits
515175678
Unavailable
