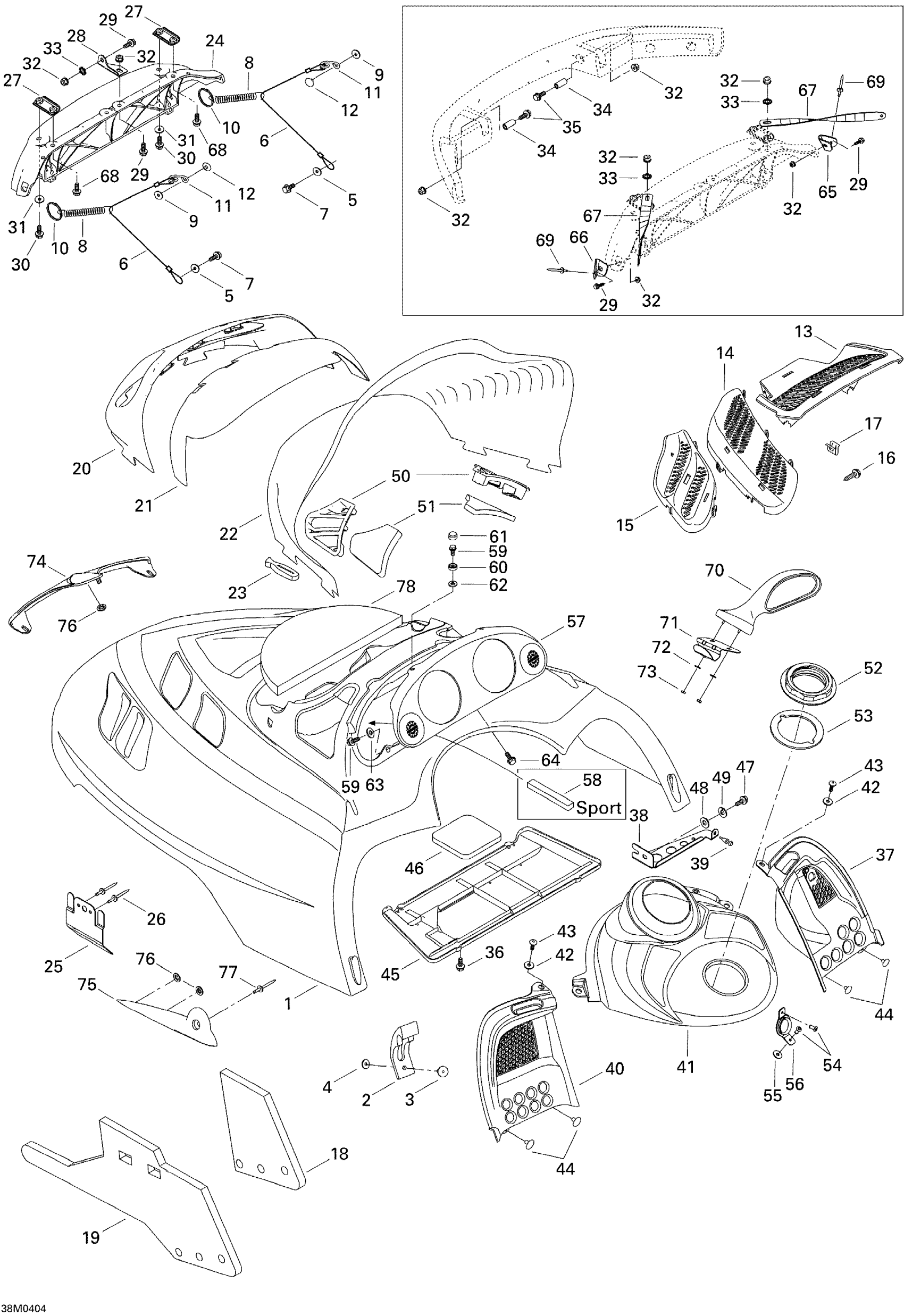

Find the part on the CAB, Console diagram for your 2004 Ski-Doo Legend 500 SS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Ski-Doo Legend 500 SS CAB, Console Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOOD, BLACK, B-160 - Call your local BRP dealership | BLACK (B-160)

517302740

—
Out of stock

Hood | AUTUMN RED (M-549)

517303051

—
Out of stock

2

Hood Latch

570027100

2
Out of stock

3

Pop Rivet 3/16”

293150108

2
Out of stock

4

Washer

517124300

2
Out of stock

5

Washer | DS 650 X

391301600

2
Out of stock

6

RETAINER CABLE - Call your local BRP dealership

415093900

—
Out of stock

7

Hex. Tapping Screw

365901000

—
Out of stock

8

Spring

415043300

—
Out of stock

9

Washer

517124300

2
Out of stock

10

RING - Call your local BRP dealership

415058300

—
Out of stock

11

Bracket

517262800

—
Out of stock

12

Pop Rivet 3/16" | DS 650 X

293150104

2
Out of stock

13

CENTER GRILL, BLACK - Call your local BRP dealership

517302026

—
Out of stock

14

RH Intermediate Grill, Black

517302671

—
Out of stock

LH Intermediate Grill, Black

517302672

—
Out of stock

15

RH Side Grille

517302034

—
Out of stock

LH Side Grille

517302036

—
Out of stock

16

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

—
Out of stock

17

Edge Clip

517302785

5
Out of stock

18

RH Side Foam

517302675

—
Out of stock

19

LH Side Foam

517302630

—
Out of stock

20

HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership

517302158

1
Out of stock

Headlamp Moulding, Autumn Red | AUTUMN RED (M-549)

517303052

—
Out of stock

21

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

—
Out of stock

22

WINDSHIELD - Call your local BRP dealership

517302356

—
Out of stock

High Windshield | SE GT & Sport GT This part replaces 517302982.

517302560

1
Out of stock

23

Windshield Latch

570023800

6
Out of stock

24

Hinge

517302631

1
Out of stock

25

Hood Guide

517302615

—
Out of stock

26

Pop Rivet 3/16”

390910000

4
Out of stock

27

HINGE SIDE PLATE - Call your local BRP dealership

517302176

—
Out of stock

28

Hinge Center Plate

517302045

—
Out of stock

29

Hex. Flange Screw M6 X 16

207661654

4
Out of stock

30

2

$1.03

In stock

31

2

$0.64

In stock

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

8
Out of stock

33

Lock Washer Serrated M6

250200041

3
Out of stock

34

BUSHING - Call your local BRP dealership

517302179

—
Out of stock

35

Hex. Flange Screw M6 X 35

207663544

2
Out of stock

36

Hex. Plastic Screw M4.8 X 16

243141630

4
Out of stock

37

RH CONSOLE - Call your local BRP dealership

517302005

—
Out of stock

38

RH Console Support

517302621

—
Out of stock

39

Rubber Stopper

517302624

—
Out of stock

40

LH CONSOLE - Call your local BRP dealership

517302006

—
Out of stock

41

Center Console | SE & SE GT

517302702

—
Out of stock

Center Console | Sport & Sport GT

517302757

—
Out of stock

42

Washer | DS 650 X

391301600

2
Out of stock

43

2

$0.83

In stock

44

Pop Rivet 3/16"

293150103

4
Out of stock

45

AIR INTAKE PLATE - Call your local BRP dealership

517302836

—
Out of stock

46

Secondary Foam

517302425

—
Out of stock

47

Hex. Flange Screw M6 X 12

210261250

1
Out of stock

48

Flat Washer 6 mm

234061410

1
Out of stock

49

1

$0.52

In stock

50

RH AIR INTAKE GRILL - Call your local BRP dealership

517302024

—
Out of stock

LH AIR INTAKE GRILL - Call your local BRP dealership

517302025

—
Out of stock

51

Air Intake Foam

517302151

—
Out of stock

52

CONSOLE NUT - Call your local BRP dealership

517302043

—
Out of stock

53

Gasket

293250029

1
Out of stock

54

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

—
Out of stock

55

Rubber Stopper

517302286

—
Out of stock

56

Rope Guide

517302129

—
Out of stock

57

Indicator Support

517302760

—
Out of stock

Indicator Support | SE

517302761

—
Out of stock

58

Foam

517302420

—
Out of stock

59

Screw K40 X 10

241140060

4
Out of stock

60

RETAINER CAP - Call your local BRP dealership

414436800

—
Out of stock

61

BLACK SNAP CAP - Call your local BRP dealership

414436900

—
Out of stock

62

Flat Washer 4 mm, Stainless

234042600

2
Out of stock

63

Washer

517124300

2
Out of stock

64

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

—
Out of stock

65

RH Corner Support

517302254

—
Out of stock

66

LH Corner Support

517302255

—
Out of stock

67

HOOD CLAMP - Call your local BRP dealership

517302837

—
Out of stock

68

Hex. Flange Screw M6 X 25

207662544

2
Out of stock

69

Pop Rivet 3/16"

390406500

2
Out of stock

70

RH Mirror

517302679

—
Out of stock

LH Mirror

517302681

—
Out of stock

71

Retainer Plate

517302539

—
Out of stock

72

Washer

517124300

4
Out of stock

73

Elastic Stop Nut M4

232541414

4
Out of stock

74

Front Hood Moulding

517302780

—
Out of stock

75

RH Hood Moulding

517302781

—
Out of stock

LH Hood Moulding

517302782

—
Out of stock

76

Push Nut

732610072

5
Out of stock

77

Pop Rivet 3/16”

293150092

2
Out of stock

78

CENTER FOAM - Call your local BRP dealership | FOR HOOD RIM

517302317

—
Out of stock
