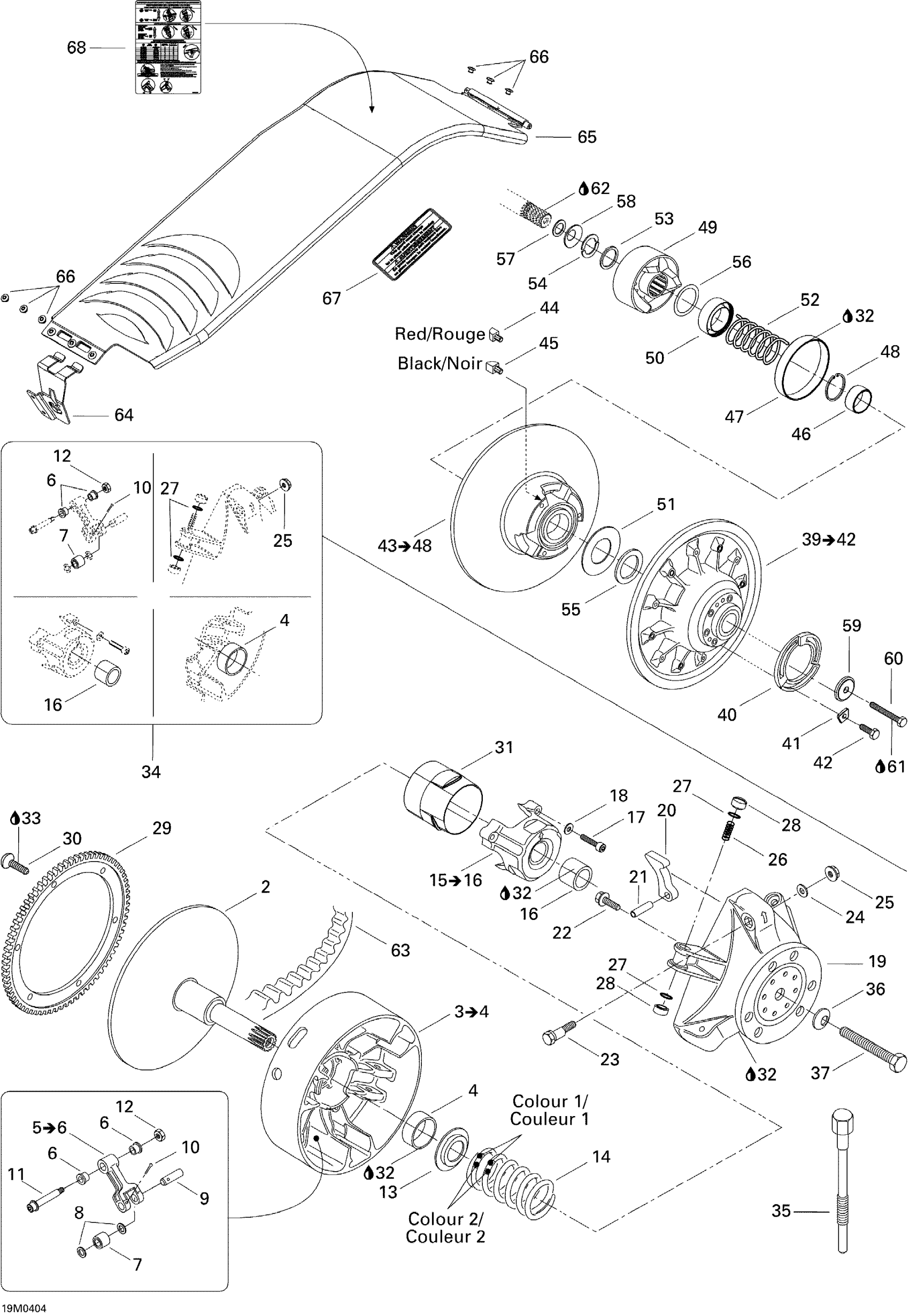

Ski-Doo Legend 500 SS, 2004 Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange

417222411

$214.90

3

SLIDING FLANGE ASSY - Call your local BRP dealership | Includes 2 to 4

417222241

Unavailable

4

Bushing

417004201

$23.10

5

LEVER ASSY - Call your local BRP dealership | Includes 5 to 6

417222383

Unavailable

6

Bushing

417004305

$8.76

7

Roller

417222947

$19.37

8

Stopper Washer

417004302

$15.64

9

Pin

417004308

$12.79

10

Cotter Pin

250400060

$1.84

11

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

12

Elastic Stop Nut M6

232561414

$1.78

13

Spring Seat

417222044

Unavailable

14

Spring, Blue/yellow | S-LEV&P-146

414689500

$44.00

Spring, Violet/Violet

414817900

$37.28

15

Spring Cover Ass‘Y | Includes 17 to 18

417222304

Unavailable

16

Bushing

417004501

Unavailable

17

Socket Head Screw M6 X 40

250000038

$6.33

18

WASHER - Call your local BRP dealership

420245370

Unavailable

19

GOVERNOR CUP ASSY - Call your local BRP dealership

417222081

Unavailable

20

RAMP 299 - Call your local BRP dealership

417222372

Unavailable

21

Pin M8 X 24

732804009

Unavailable

22

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

23

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

24

Washer

417005600

$3.75

25

Hex. Flange Nut M6

233061414

$1.54

26

Spring

417005700

$4.51

27

O-Ring

732401030

$0.93

28

Slider Shoe This part replaces 420460045.

417223021

$5.99

29

Ring Gear

417300057

Unavailable

30

Hex. Screw M8 X 16

236281684

$3.88

Loctite 271, 10 ml

293800005

$23.85

31

Guard

417222176

Unavailable

32

Loctite 609, 10 ml

413703100

$23.85

33

Loctite 271, 10 ml

293800005

$23.85

34

Clutch Repair Kit

417006100

$170.12

35

Puller This part replaces 529022400.

529000064

$73.99

36

Spring Washer 14 mm

250200006

$6.66

37

Drive Pulley Bolt

417120000

$61.91

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Fixed Flange Ass’Y | INCLUDES ITEMS 39 TO 42

417126527

Unavailable

40

Adjustment Ring

415005800

Unavailable

41

Adjustment Shim

415005900

Unavailable

42

Hex. Screw M6 X 25

207162544

$1.01

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

43

Sliding Flange Ass’Y | INCLUDES ITEMS 43 TO 48

417126318

Unavailable

44

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

Unavailable

45

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.18

46

Not Available As Spare Part - Friction Washer

Unavailable

47

BUSHING - Call your local BRP dealership

417126902

Unavailable

48

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

49

CAM ASSY 47 - Call your local BRP dealership | Modèle 800 HO

417126577

Unavailable

50

GUARD - Call your local BRP dealership

417126381

Unavailable

51

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

52

Release Spring, Purple | North America

414978300

$32.06

53

SPACER - Call your local BRP dealership

417126733

Unavailable

54

HALF KEY - Call your local BRP dealership

417126734

Unavailable

55

SHIM - Call your local BRP dealership

504112300

Unavailable

56

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

57

Spacer

417300265

$2.06

58

PROTECTOR - Call your local BRP dealership

417300238

Unavailable

59

Strength Washer

517302322

$10.76

60

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

61

Loctite 243, 10 ml

293800060

$21.49

62

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

63

Drive Belt

414860700

$138.03

Drive Belt

417300585

$138.03

64

Bracket

417300001

Unavailable

65

Belt Guard Ass’Y | Includes Items 2 to 4

417300173

Unavailable

66

Pop Rivet 3/16"

390402200

$0.30

67

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

68

Decal, Suspension Adjustment

516001639

Unavailable

Decal, Suspension Adjustment Decal

516001640

Unavailable
