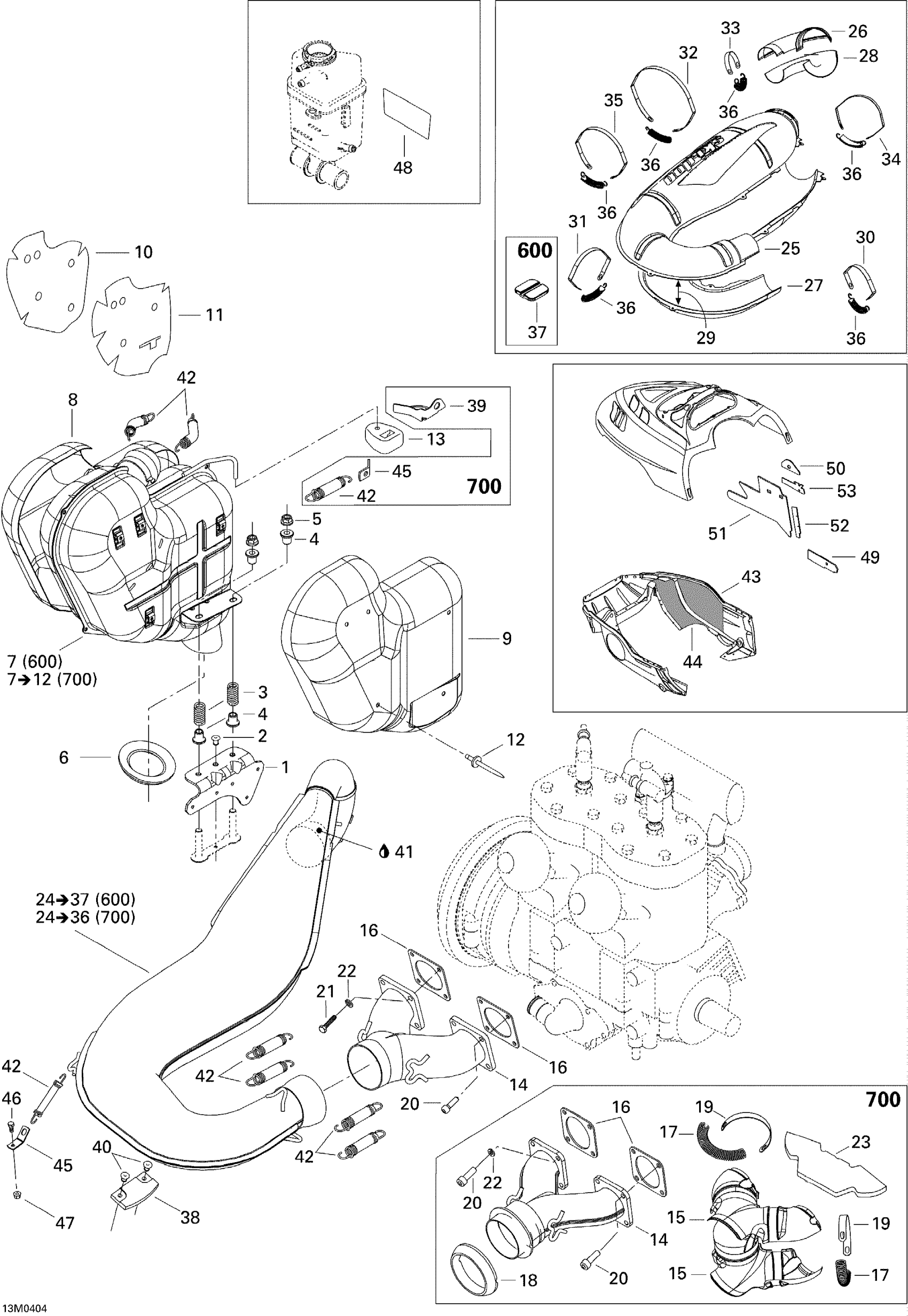

Ski-Doo Legend 500 SS, 2004 Exhaust System Diagram

#

Description
Price

1

Muffler Bracket

514053263

Unavailable

2

Pop Rivet 3/16"

390402200

$0.26

3

SPRING - Call your local BRP dealership

414913700

$2.28

4

GUIDE - Call your local BRP dealership

514053343

$23.05

5

Lock Spring Nut M8

233481413

Unavailable

6

Exhaust Grommet

514053064

Unavailable

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

7

Muffler | 600

514053326

Unavailable

Muffler | 700 / INCLUDES ITEMS 7 TO 12

514053537

Unavailable

8

RH Heat Shield | 600

514053160

Unavailable

RH Heat Shield | 700

514053606

Unavailable

9

LH Heat Shield | 600

514052733

Unavailable

LH HEAT SHIELD - Call your local BRP dealership | 700

514053516

Unavailable

10

RH Insulating Wool | 600

514052734

Unavailable

RH Insulating Wool | 700

514053294

Unavailable

11

LH Insulating Wool | 600

514052844

Unavailable

LH Wooll Insulating

514053295

Unavailable

12

Pop Rivet 3/16”

390910000

$0.48

13

RUBBER BUMPER - Call your local BRP dealership

514052704

$10.74

14

Exhaust Manifold | 700

420973593

Unavailable

Exhaust Manifold

420979543

Unavailable

15

Enveloppe, Exhaust Manifold

514053593

Unavailable

16

Gasket

420850552

$7.92

Gasket

420931610

$11.38

17

Spring

514053643

$6.20

18

Exhaust Gasket

514053487

Unavailable

19

RETAINING STRAP - Call your local BRP dealership

514053603

$7.66

20

Socket Head Screw M6 X 20

205062044

$1.07

Socket Head Screw M8 X 25

205082544

Unavailable

21

Hex. Screw M8 X 20

207182044

$0.61

22

Lock Washer M6, Black

234161471

$0.52

Lock Washer 8 mm

234181401

Unavailable

23

INSULATING WOOL - Call your local BRP dealership

514053588

$12.28

24

Tuned Pipe Ass’Y | 600 / INCLUDES ITEMS 24 TO 37

514053495

Unavailable

Calibrated Tube Ass'y | 700 / INCLUDES ITEMS 24 TO 36

514053506

Unavailable

25

Upper Enveloppe | 600

514053192

Unavailable

Upper Enveloppe | 600

514053192

Unavailable

26

REAR UPPER ENVELOPE - Call your local BRP dealership | 600

514053193

$23.05

REAR UPPER ENVELOPE - Call your local BRP dealership | 700

514053313

$23.05

27

LOWER ENVELOPE - Call your local BRP dealership

514053367

$54.58

LOWER ENVELOPE - Call your local BRP dealership

514053367

$54.58

28

REAR LOWER ENVELOPE - Call your local BRP dealership | 600

514053196

$23.05

REAR LOWER ENVELOPE - Call your local BRP dealership | 700

514053314

$24.58

29

INSULATING WOOL - Call your local BRP dealership | 600

514053285

$16.89

Insulating Wool | 700

514053315

Unavailable

30

Retaining Strap

514053498

$8.35

31

Retaining Strap

514053501

$8.34

32

RETAINING STRAP - Call your local BRP dealership

514053540

$7.66

33

RETAINING STRAP - Call your local BRP dealership

514053491

Unavailable

Retaining Strap

514053492

$10.55

34

RETAINING STRAP - Call your local BRP dealership

514053500

$7.66

35

RETAINING STRAP - Call your local BRP dealership

514053512

Unavailable

36

Spring

514053643

$6.20

37

Rubber Pad | 600

514053180

Unavailable

38

Rubber Pad

570044100

Unavailable

39

SUPPORT - Call your local BRP dealership

514053442

$9.20

40

Pop Rivet 3/16"

293150103

Unavailable

41

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

42

Spring

415107100

$6.20

Spring

415107100

$6.20

43

Reflective Sheet

514052718

Unavailable

44

REFLECTIVE SHEET - Call your local BRP dealership

514053390

Unavailable

45

Spring Bracket

514053436

$8.35

Spring Bracket

514053436

$8.35

46

Hex. Screw M5 X 12

207151244

Unavailable

47

Hex. Flange Elastic Nut M5

233251414

Unavailable

48

Reflective Sheet | Grand Touring 500.

514053399

Unavailable

49

Reflective Sheet, Black Cab

514053435

Unavailable

50

Reflective Sheet, Black Cab

514053446

Unavailable

51

Reflective Sheet

514053624

Unavailable

52

Reflective Sheet

514053450

Unavailable

53

Reflective Sheet | FOR RIM CAB ONLY

514053391

Unavailable
