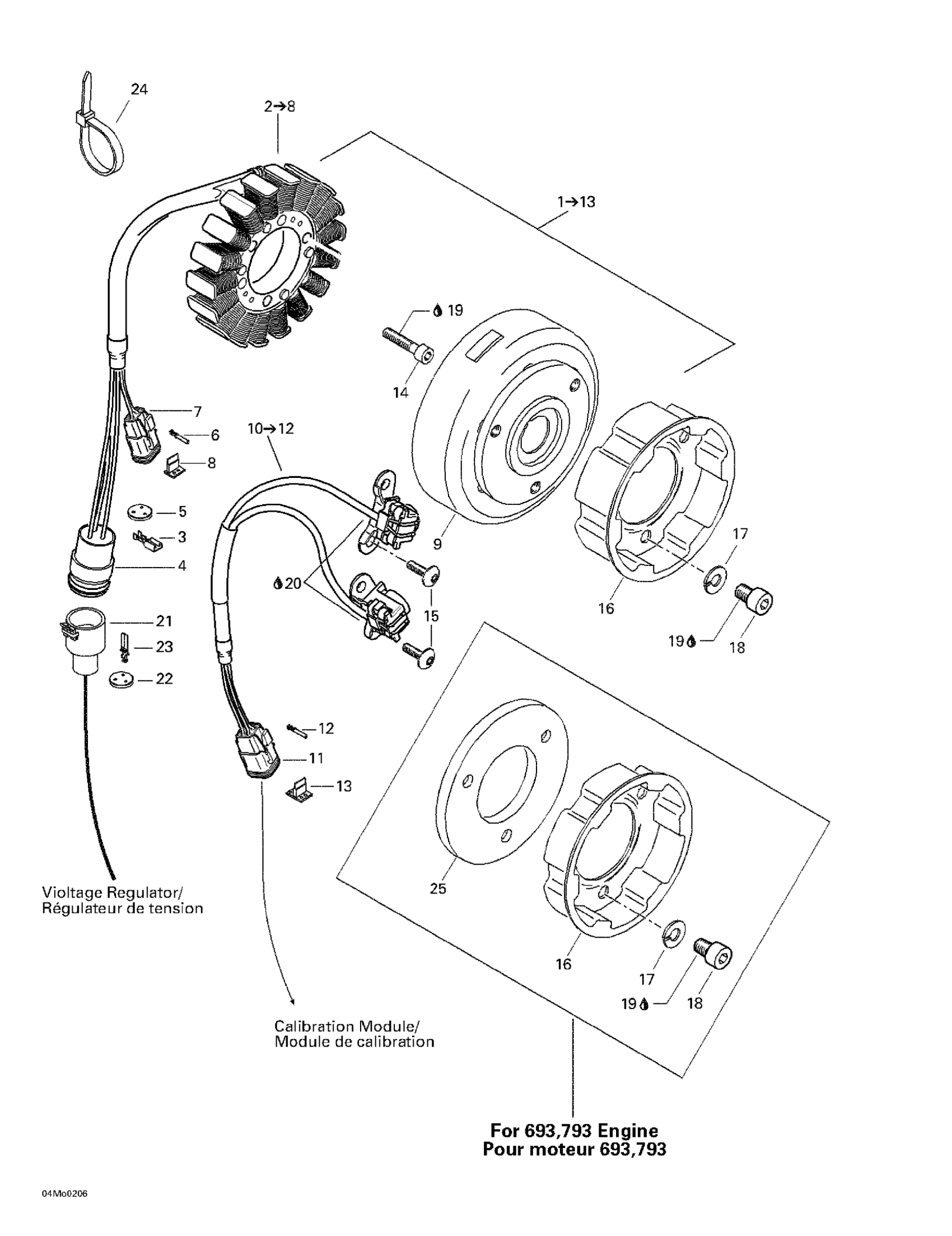

Ski-Doo Legend 500/600/700/800, 2002 Magneto (12V, 360W) Diagram

#

Description
Price

1

Magneto Ass'y (12V, 360W) | Includes 1 - 13.

420888235

Unavailable

2

Stator Plate Ass'y | Includes 2 - 8.

410922941

Unavailable

3

FEMALE TERMINAL - Call your local BRP dealership

409011900

$3.82

4

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

$10.74

5

SEAL - Call your local BRP dealership

409208500

Unavailable

6

Female Terminal

278000632

Unavailable

7

Female Terminal Housing, 2 Circuits

515175670

Unavailable

8

Female Lock, 2 Circuits

515175675

Unavailable

9

Flywheel

420888627

Unavailable

10

Pick-up Ass'y | Includes 10 - 13.

420966802

Unavailable

11

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

12

Female Terminal

278000632

Unavailable

13

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

14

Socket Head Screw M6 X 30

205063044

Unavailable

15

Torx Screw M6 X 16

420640324

$2.06

16

Starting Pulley

420852590

$28.43

Starting Pulley | Manual Start This part replaces 420852532.

420852533

Unavailable

17

Washer-Lock Din.128

420945832

Unavailable

18

Socket Head Screw M8 X 12

420841520

$1.68

Hex. Screw M8 X 20

207182044

$0.61

19

Loctite 243, 10 ml

293800060

$20.77

20

Not Available As Spare Part - Friction Washer

Unavailable

21

MALE HOUSING - Call your local BRP dealership

409207900

$7.66

22

SEAL - Call your local BRP dealership

409208500

Unavailable

23

MALE TERMINAL - Call your local BRP dealership

409011100

$3.82

24

Tie Wrap 94 mm | 4X4

293750001

$0.83

25

Flywheel

420866756

Unavailable
