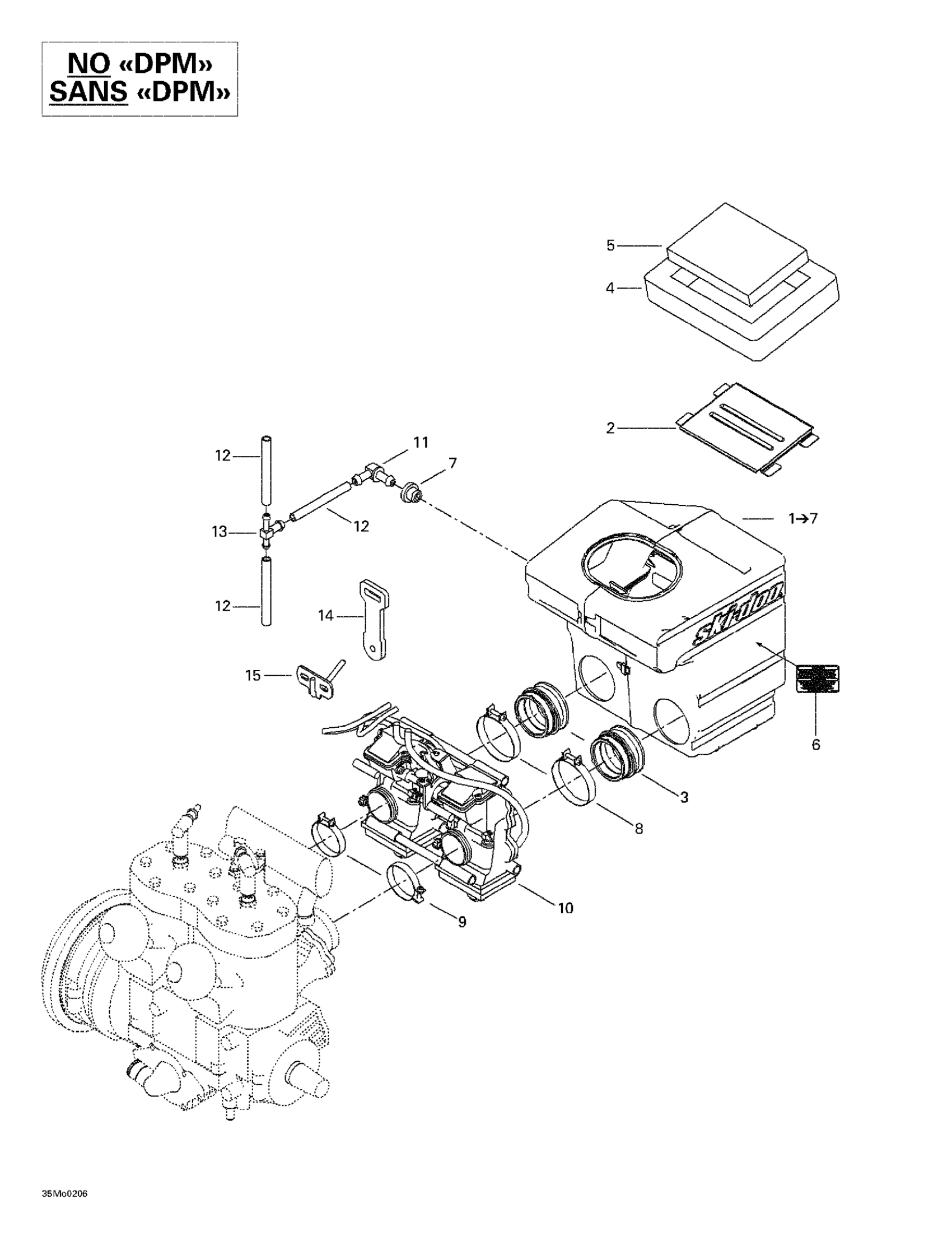

Ski-Doo Legend 500/600/700/800, 2002 Air Intake System Diagram

#

Description
Price

1

Air Intake Ass’Y | Includes 1 - 7. WITHOUT DPM 500 Grand Touring 500. WITHOUT DPM 600 Grand Touring 600.

508000222

Unavailable

Air Intake Ass’Y | WITHOUT DPM 700 Grand Touring 700.

508000221

Unavailable

2

INTAKE GRILL - Call your local BRP dealership

508000004

Unavailable

3

Air Intake Adaptor, 40 mm

508000092

Unavailable

4

Lower Foam

508000099

Unavailable

5

Air Filter

508000154

Unavailable

6

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

7

Grommet

513032908

$8.74

8

Gemi Clamp

508000346

$9.31

9

Gemi Clamp

512059835

Unavailable

10

CARBURETOR KIT TM 40 B-151 - Call your local BRP dealership | Grand Touring 500.

403138701

Unavailable

Carburetor Kit TM 40 B-154 | Grand Touring 600.

403138700

$1,009.99

DEEP BLACK, CARBURETOR KIT TM 40 - Call your local BRP dealership | Grand Touring 700.

403138699

Unavailable

11

Elbow Male Connector

414580600

$3.50

12

Polyurethane Hose 10000Mm Long

219704410

Unavailable

13

T-Fitting

572045500

Unavailable

14

CARBURETOR LATCH - Call your local BRP dealership

512059372

Unavailable

15

Carburetor Bracket

512059504

Unavailable
